1. Front Door Lock Actuator - Test

   Preconditions

   • Front Door Panel Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

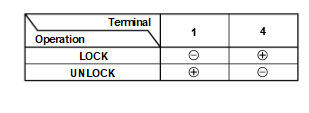

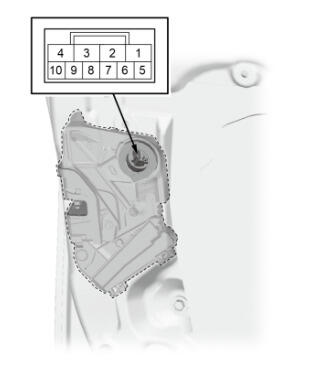

   • Check the actuator operation by connecting power and ground according to the table. (Figure 1 and 2)
     NOTE:

     To prevent damage to the actuator, apply battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the front door latch .

   Rear

2. Rear Door Lock Actuator - Test

   Preconditions

   • Rear Door Panel Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

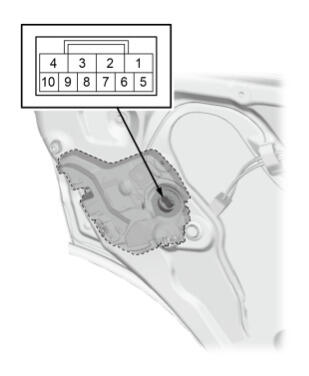

   • Check the actuator operation by connecting power and ground according to the table. (Figure 1 and 2)
     NOTE:

     To prevent damage to the actuator, apply battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the rear door latch .
