Driving Position Memory System (DPMS) Component Location Index

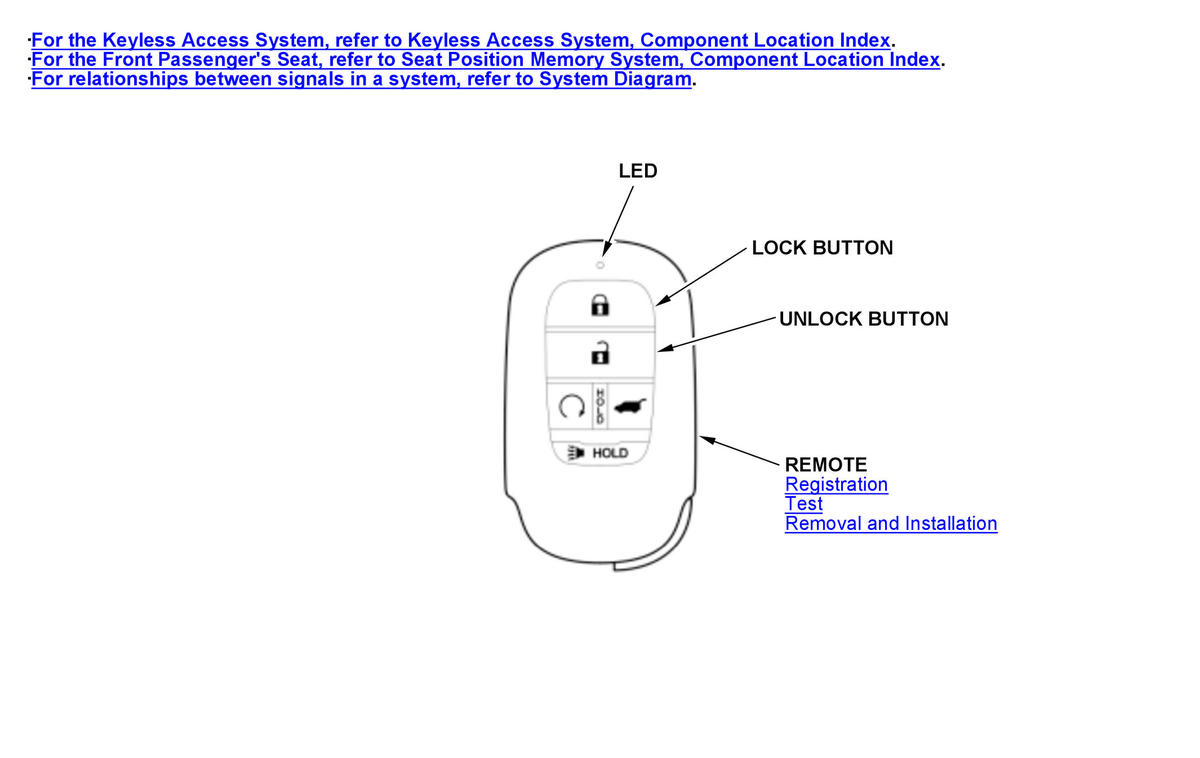

GHH550222Courtesy of HONDA, U.S.A., INC.

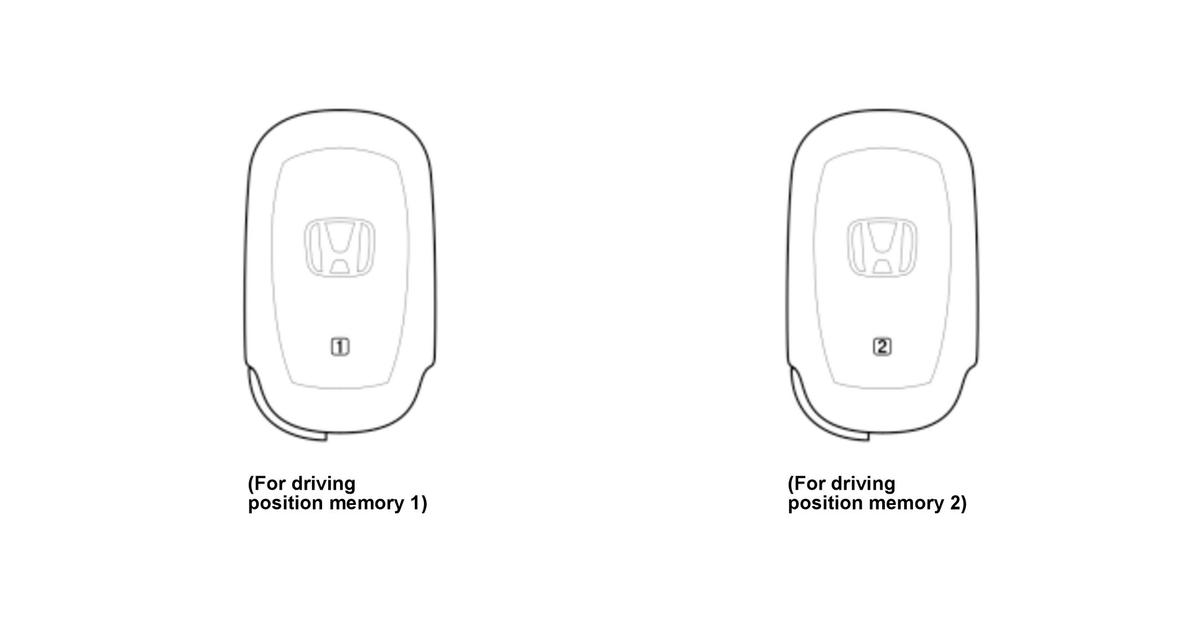

GHH550223Courtesy of HONDA, U.S.A., INC.

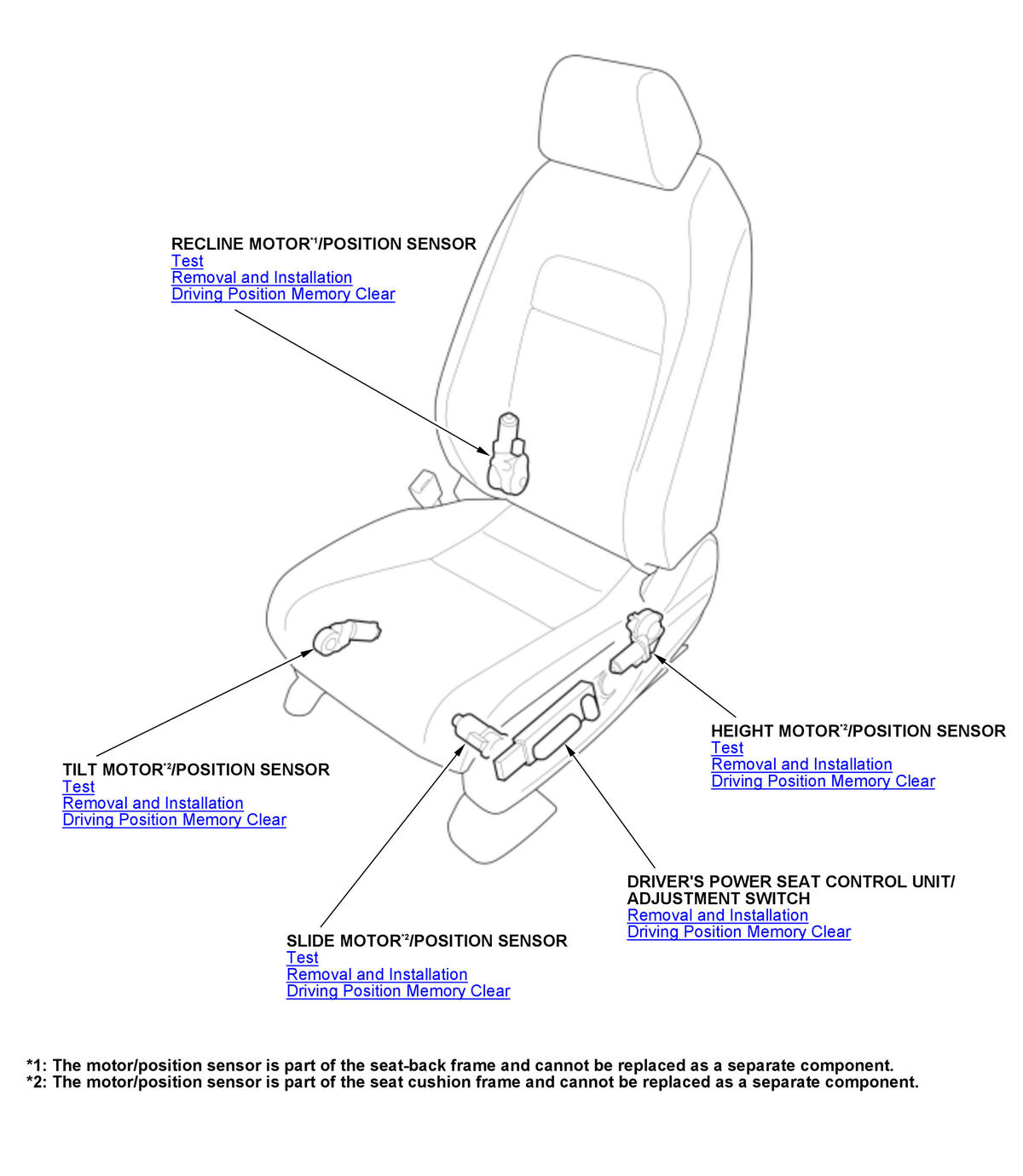

Driver's Seat

GHH550224Courtesy of HONDA, U.S.A., INC.

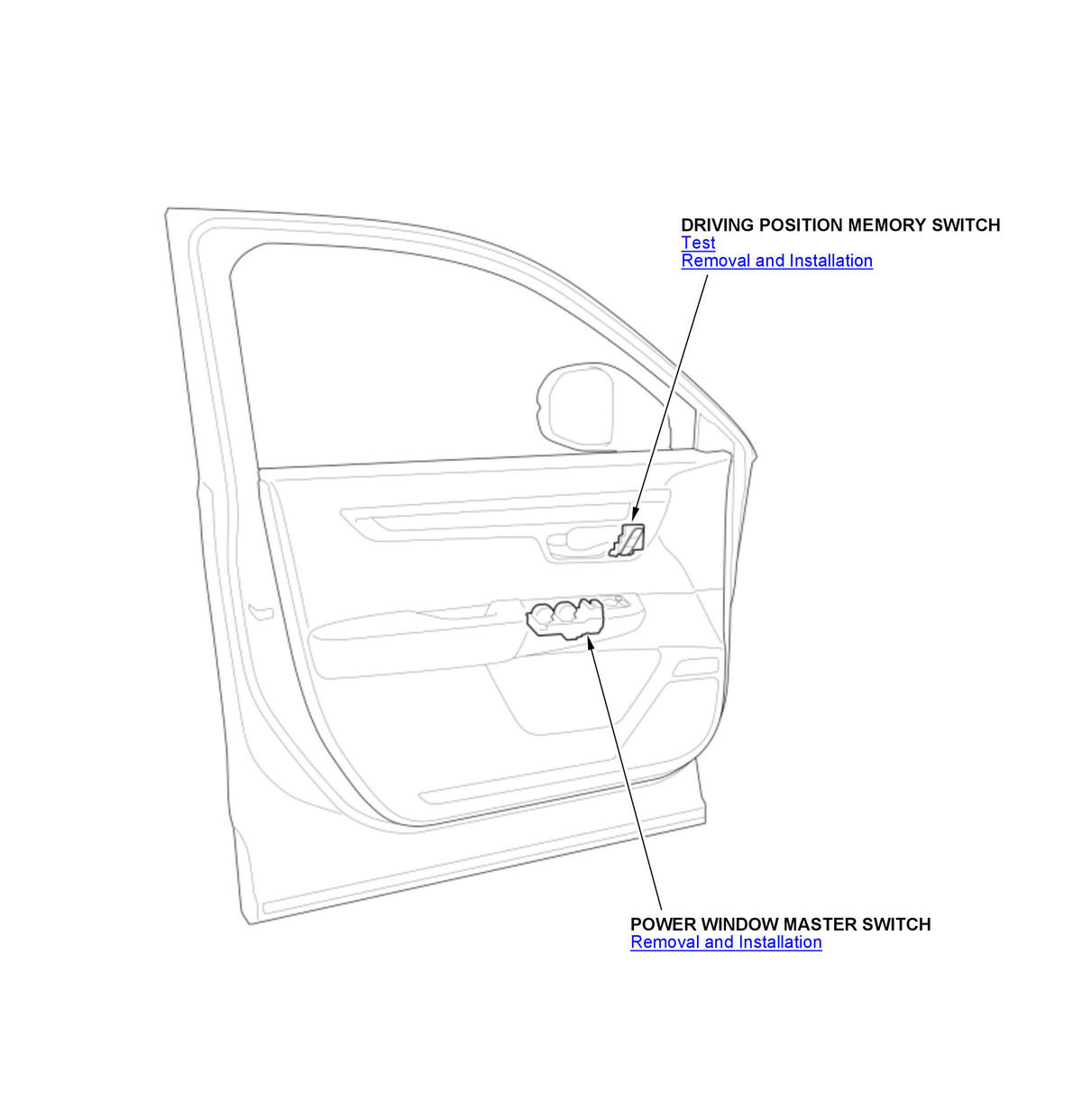

GHH550225Courtesy of HONDA, U.S.A., INC.

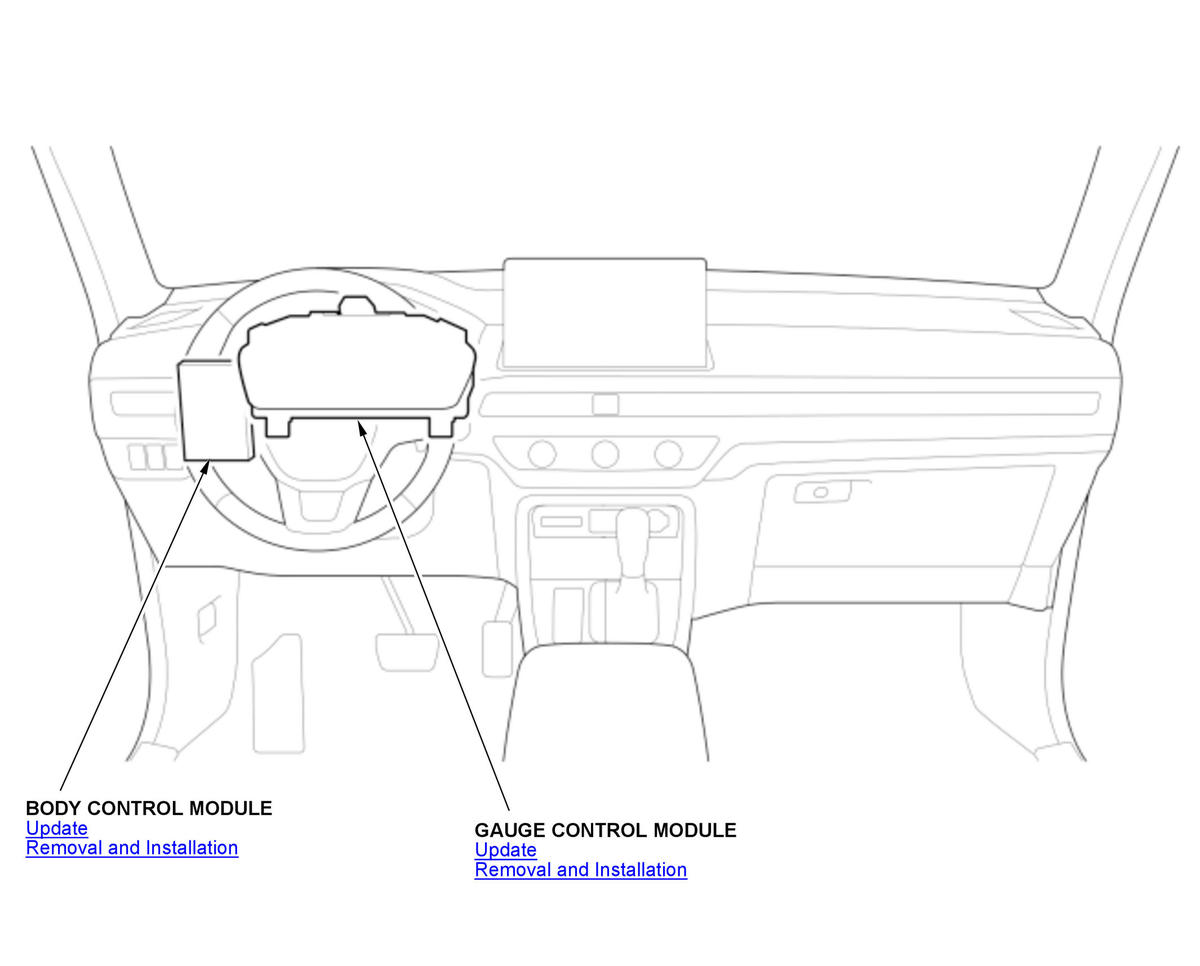

GHH550226Courtesy of HONDA, U.S.A., INC.
