2023
>>
Pilot Touring, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Access (Power Control Unit) - Diagnostics
>>
Troubleshooting
>>
DTC B12F3 (Keyless Access Power Control Unit)
>>

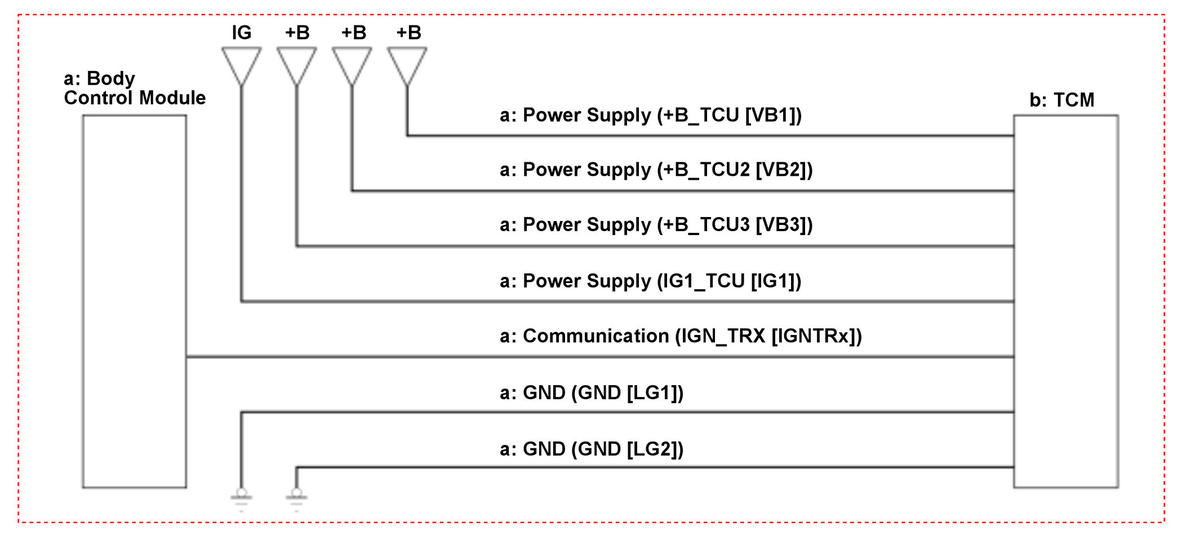

Inspection Outline
Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
+B_TCU [VB1], +B_TCU2 [VB2], +B_TCU3 [VB3], IG1_TCU [IG1], GND [LG1], GND [LG2], IGN_TRX [IGNTRx] Circuit Inspection
b
TCM
TCM Inspection
c
Body Control Module
Body Control Module Inspection
