Engine Control System - DTC Diagnostics (P000F - P0193)
>>
Troubleshooting
>>
DTC P0192
>>
Inspection Outline

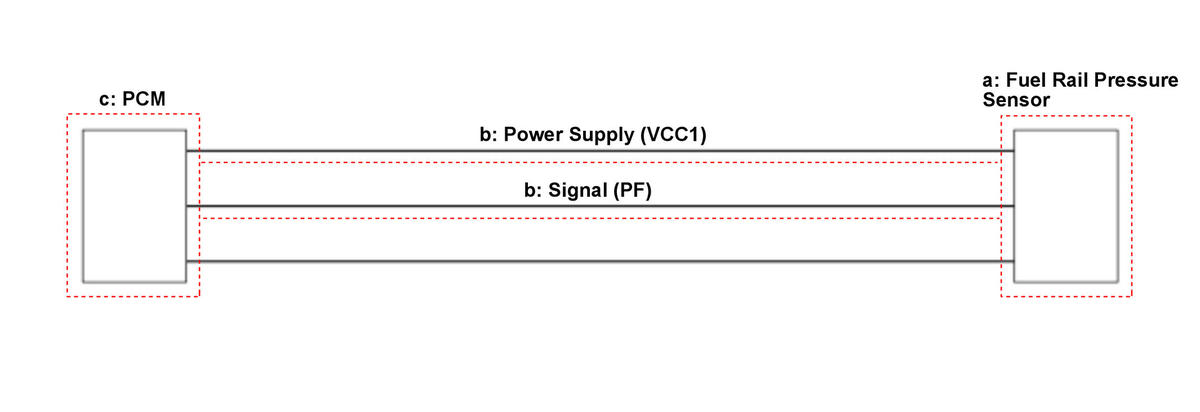

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
Fuel Rail Pressure Sensor
Fuel Rail Pressure Sensor Inspection
b
External Circuit
VCC1, PF Circuit Inspection
c
PCM
PCM Inspection
