Engine Control System - DTC Diagnostics (P000F - P0193)
>>
Troubleshooting
>>
DTC P0103
>>
Inspection Outline

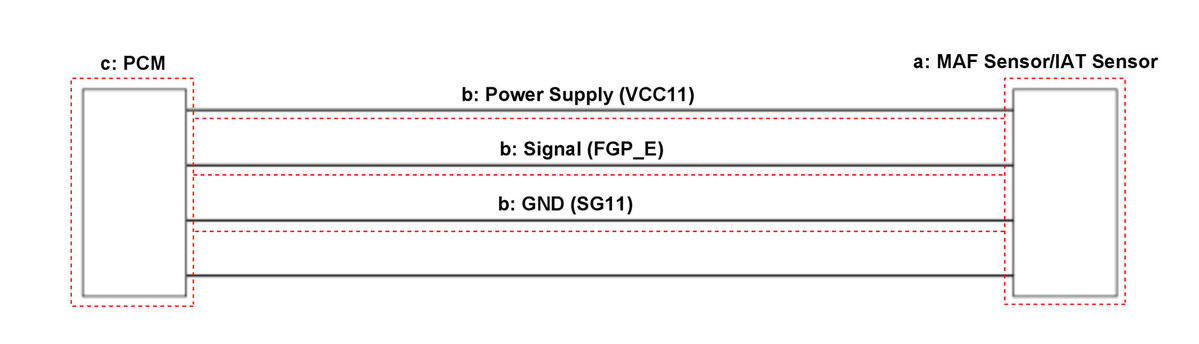

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
MAF Sensor/IAT Sensor
MAF Sensor Inspection
b
External Circuit
VCC11, FGP_E, SG11 Circuit Inspection
VCC11 Shorted Wire Inspection
c
PCM
PCM Inspection
