Inspection Outline
- The components to be tested are indicated by a dotted line.

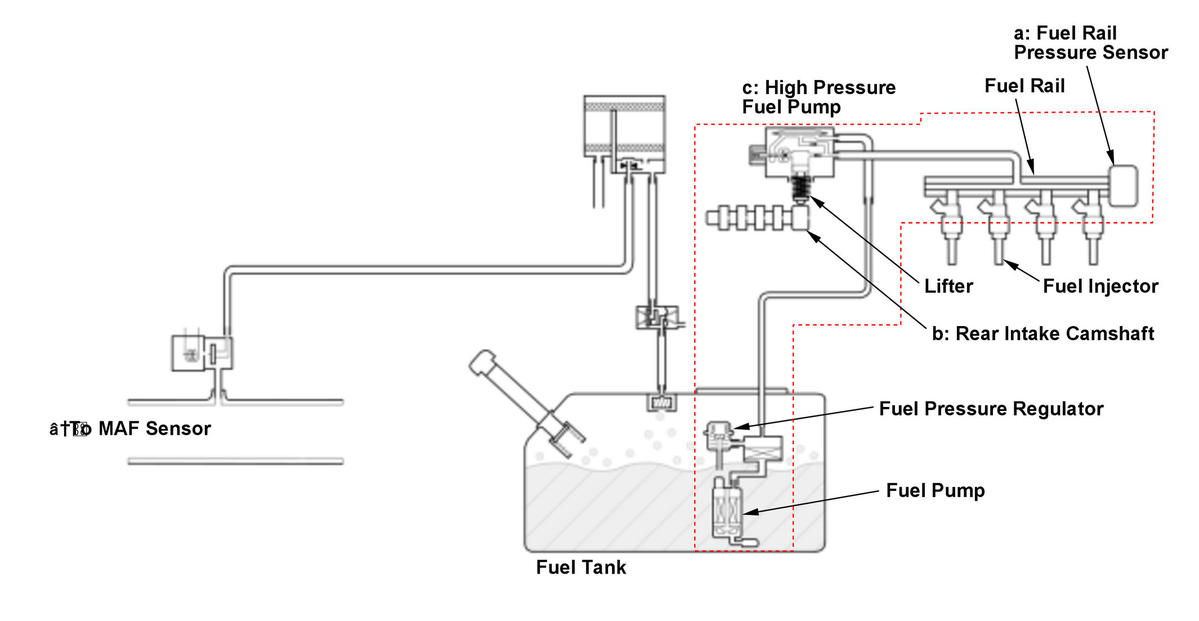

- The illustration does not show all of the areas to be inspected.
- Troubleshoot any DTCs listed or indicated systems below first.
| Inspection Items | Work Items | |
|---|---|---|
| - | Fuel Pump Circuit | Do the Fuel Pump Circuit Troubleshooting |
| - | Fuel Line | Do the Fuel Pressure Test (Low Pressure Side) - Refer to: Fuel Pressure Relieving () or Fuel Pressure Test () |
| a | Fuel Rail Pressure Sensor | Fuel Rail Pressure Sensor Inspection (1) |
| Fuel Rail Pressure Sensor Inspection (2) | ||
| b | Rear Intake Camshaft | High Pressure Fuel Pump Cam Inspection |
| c | High Pressure Fuel Pump | High Pressure Fuel Pump Inspection |
