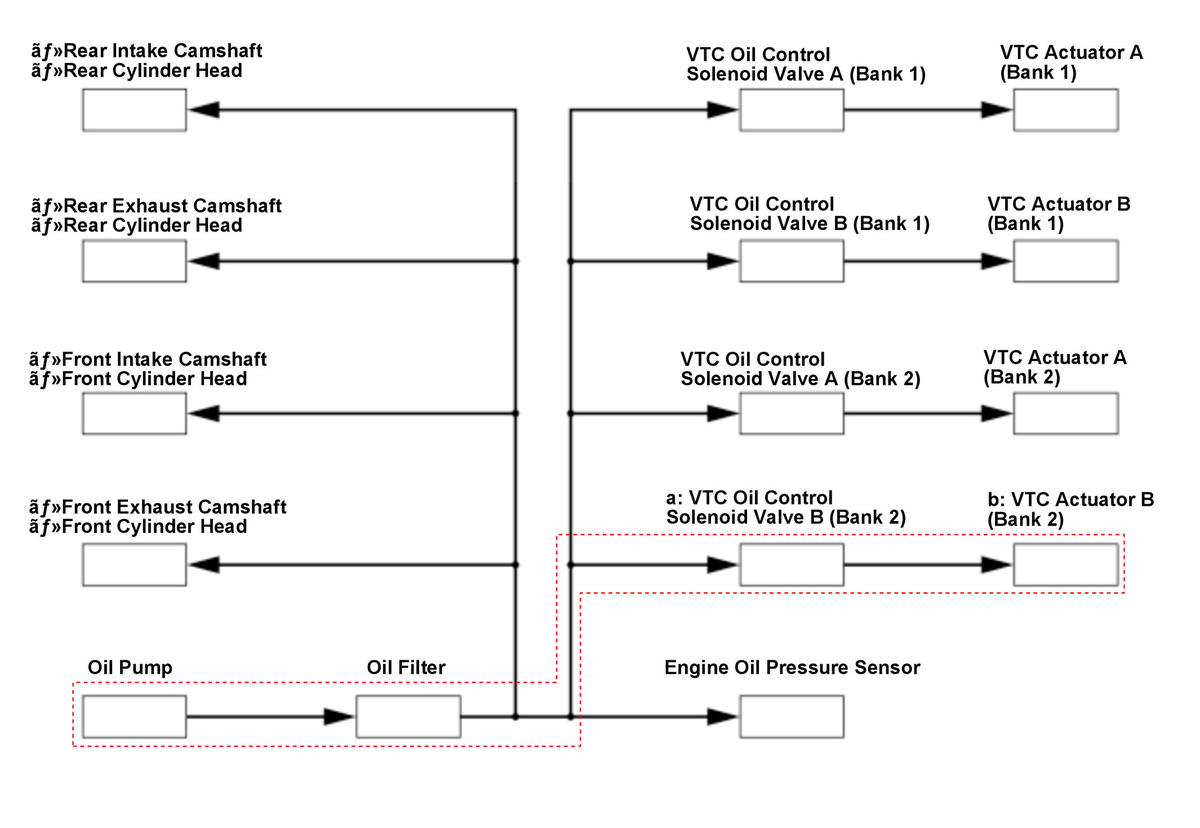

Inspection Outline

• The components to be tested are indicated by a dotted line.
• The illustration does not show all of the areas to be inspected.

Courtesy of HONDA, U.S.A., INC.

NOTICE:

For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

• Check the low oil pressure warning message in the gauge control module with the engine running.
  • Warning message displays on:
  • Warning message not displayed:

Inspection Items		Work Items
-	Engine Oil Pressure	Do the Engine Oil Pressure Test	◦
-	Engine Oil	Do the Engine Oil Level Check - Refer to: Engine Oil Replacement () or Engine Oil Level Check ()	◦

Inspection Items		Work Items
a	VTC Oil Control Solenoid Valve B (Bank 2)	Do the VTC Oil Control Solenoid Valve B (Bank 2) Test		◦
b	VTC Actuator B (Bank 2)	Do the VTC Actuator B (Bank 2) Inspection		◦
-	Timing Belt	Timing Belt Inspection		◦
-	CMP Sensor B (Bank 2)	CMP Sensor B (Bank 2) Installation Inspection		◦
-	CMP Pulse Plate B (Bank 2)	CMP Pulse Plate B (Bank 2) Visual Inspection		◦
-	CKP Sensor	CKP Sensor Installation Inspection		◦
-	CKP Pulse Plate	CKP Pulse Plate Visual Inspection		◦
-	VTC System Oil Passage	VTC System Oil Passage Inspection		◦
