DTC Advanced Diagnostics: P07E4: General Description

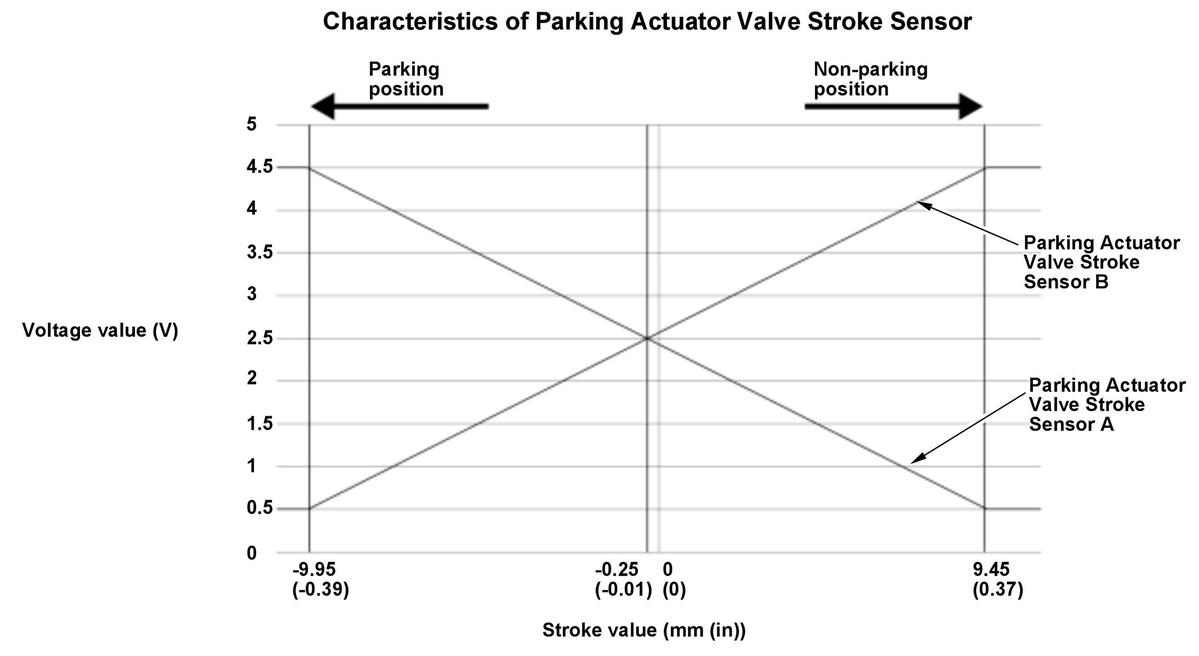

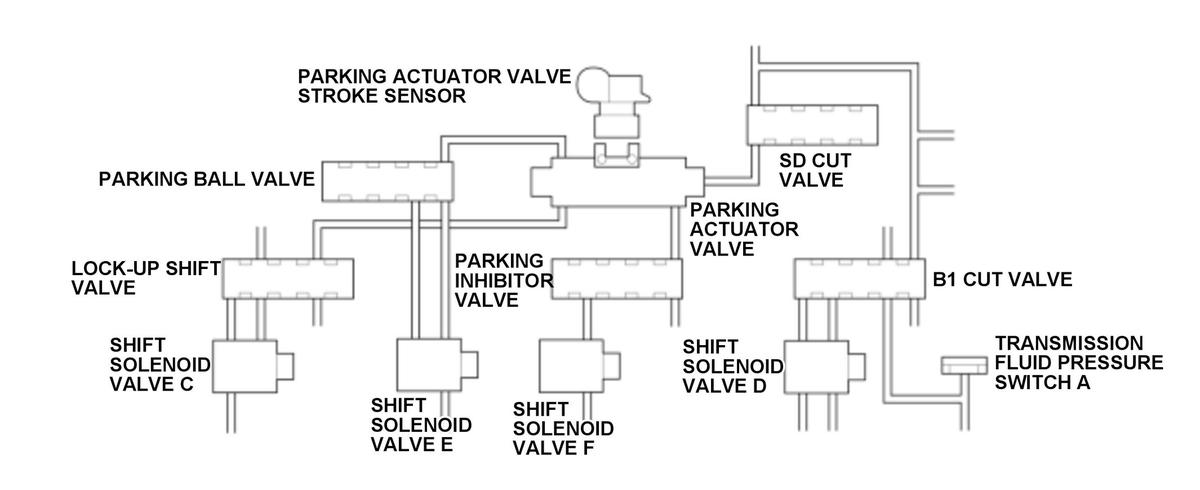

The parking system is operated by driving the parking actuator valve with shift solenoid valves C, D, E, and F. The parking actuator valve stroke sensor which measures the stroke position of the parking actuator valve is structured by two systems as the sensor characteristics are shown as in the figure. When the stroke value of the parking actuator valve stroke sensor is approximately 5.4 mm (0.21 in) or more, the parking system is non-parking position, and when it is approximately -4.1 mm (-0.16 in) or less, it is in parking position. If the parking actuator valve stroke sensor value does not exceed the parking determination value after certain lapsed time since the shift position/mode is selected to P, the transmission control module (TCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 4 seconds or more |
| DTC Type | One drive cycle, MIL off, shift position indicator blinks |
