Rear Door Control Unit Connector for Inputs and Outputs
| Connector Index |
| Left Rear Door Control Unit Connector (37P) |
| Right Rear Door Control Unit Connector (37P) |

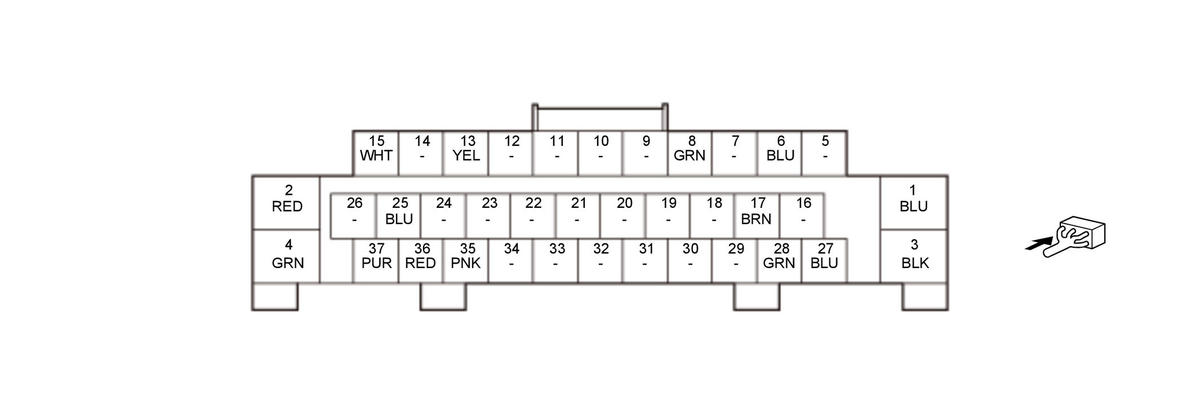

Left Rear Door Control Unit Connector (37P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
P/W_RR_L_MTR_UP |
Drives left rear power window motor |
| 2 |
P/W_RR_L_MTR_DOWN |
Drives left rear power window motor |
| 3 |
PGND |
Left rear door control unit ground |
| 4 |
+B_P/W_RR_L |
+B power source |
| 5 |
- - - |
Not used |
| 6 |
P/W_RR_L_SW_SGND |
Ground for left rear power window switch |
| 7 |
- - - |
Not used |
| 8 |
P/W_RR_L_SW_DOWN |
Detects left rear power window switch (left rear power window DOWN) signal |
| 9 |
- - - |
Not used |
| 10 |
- - - |
Not used |
| 11 |
- - - |
Not used |
| 12 |
- - - |
Not used |
| 13 |
LIN(P/W) |
Communication line |
| 14 |
- - - |
Not used |
| 15 |
P/W_RR_L_H-BRIDGE-DET |
Detects water submergence signal |
| 16 |
- - - |
Not used |
| 17 |
P/W_RR_L_SW_UP |
Detects left rear power window switch (left rear power window UP) signal |
| 18 |
- - - |
Not used |
| 19 |
- - - |
Not used |
| 20 |
- - - |
Not used |
| 21 |
- - - |
Not used |
| 22 |
- - - |
Not used |
| 23 |
- - - |
Not used |
| 24 |
- - - |
Not used |
| 25 |
P/W_RR_L_SW_ILL |
Outputs left rear power window switch illumination signal |
| 26 |
- - - |
Not used |
| 27 |
P/W_RR_L_MTR_SGND |
Ground for left rear power window motor hall IC (pulser) unit |
| Terminal number |
Terminal name |
Description |
| 28 |
P/W_RR_L_SW_AUTO |
Detects left rear power window switch (left rear power window AUTO UP/DOWN) signal |
| 29 |
- - - |
Not used |
| 30 |
- - - |
Not used |
| 31 |
- - - |
Not used |
| 32 |
- - - |
Not used |
| 33 |
- - - |
Not used |
| 34 |
- - - |
Not used |
| 35 |
P/W_RR_L_MTR_PLSB |
Detects left rear power window motor hall IC (pulser) unit signal |
| 36 |
P/W_RR_L_MTR_PLSA |
Detects left rear power window motor hall IC (pulser) unit signal |
| 37 |
P/W_RR_L_MTR_VCC |
Drives left rear power window motor hall IC (pulser) unit |
Right Rear Door Control Unit Connector (37P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
| 1 |
P/W_RR_R_MTR_UP |
Drives right rear power window motor |
| 2 |
P/W_RR_R_MTR_DOWN |
Drives right rear power window motor |
| 3 |
PGND |
Right rear door control unit ground |
| 4 |
+B_P/W_RR_R |
+B power source |
| 5 |
- - - |
Not used |
| 6 |
P/W_RR_R_SW_SGND |
Ground for right rear power window switch |
| 7 |
- - - |
Not used |
| 8 |
P/W_RR_R_SW_DOWN |
Detects right rear power window switch (right rear power window DOWN) signal |
| 9 |
- - - |
Not used |
| 10 |
- - - |
Not used |
| 11 |
- - - |
Not used |
| 12 |
- - - |
Not used |
| 13 |
LIN(P/W) |
Communication line |
| 14 |
- - - |
Not used |
| 15 |
P/W_AS_H-BRIDGE_DET |
Detects water submergence signal |
| 16 |
- - - |
Not used |
| 17 |
P/W_RR_R_SW_UP |
Detects right rear power window switch (right rear power window UP) signal |
| 18 |
- - - |
Not used |
| 19 |
- - - |
Not used |
| Terminal number |
Terminal name |
Description |
| 20 |
- - - |
Not used |
| 21 |
- - - |
Not used |
| 22 |
- - - |
Not used |
| 23 |
- - - |
Not used |
| 24 |
- - - |
Not used |
| 25 |
P/W_RR_R_SW_ILL |
Outputs right rear power window switch illumination signal |
| 26 |
- - - |
Not used |
| 27 |
P/W_RR_R_MTR_SGND |
Ground for right rear power window motor hall IC (pulser) unit |
| 28 |
P/W_RR_R_SW_AUTO |
Detects right rear power window switch (right rear power window AUTO UP/DOWN) signal |
| 29 |
- - - |
Not used |
| 30 |
- - - |
Not used |
| 31 |
- - - |
Not used |
| 32 |
- - - |
Not used |
| 33 |
- - - |
Not used |
| 34 |
- - - |
Not used |
| 35 |
P/W_RR_R_MTR_PLSB |
Detects right rear power window motor hall IC (pulser) unit signal |
| 36 |
P/W_RR_R_MTR_PLSA |
Detects right rear power window motor hall IC (pulser) unit signal |
| 37 |
P/W_RR_R_MTR_VCC |
Drives right rear power window motor hall IC (pulser) unit |
