Exploded View

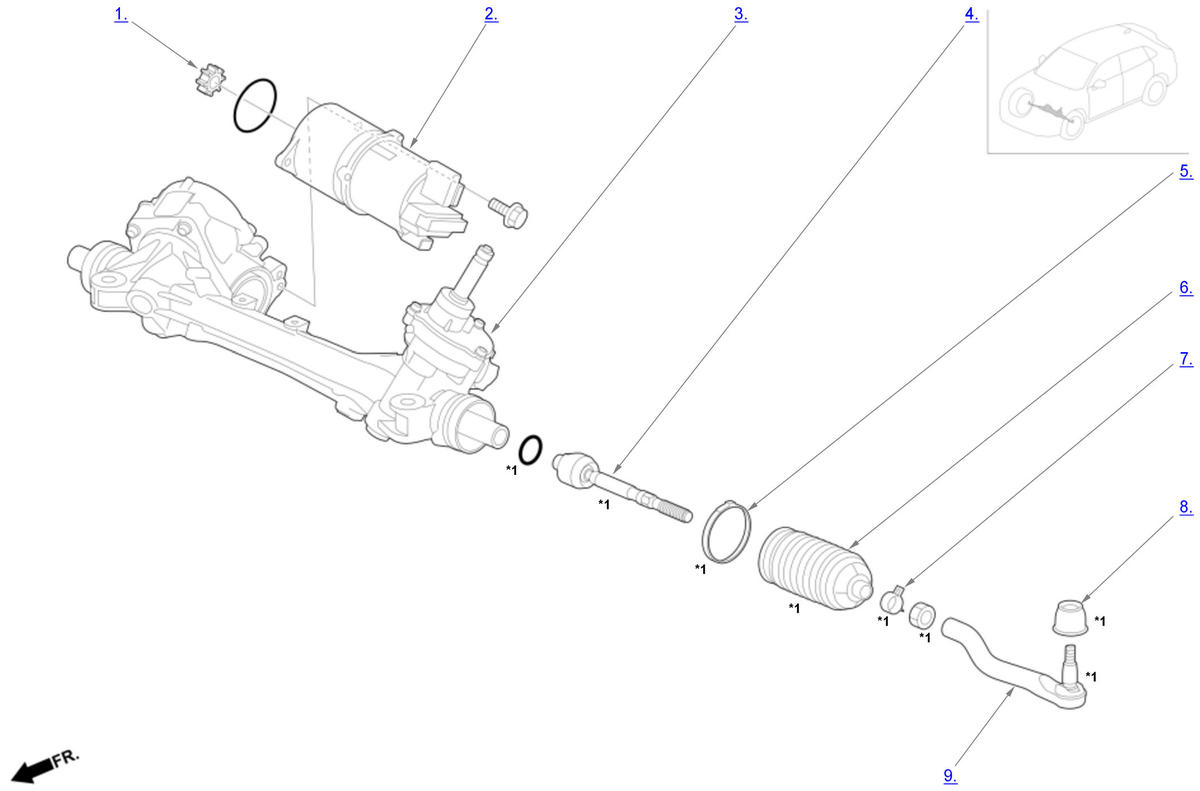

Fig 1: Exploded View Of Steering Gearbox Components (Items 1 thru 9)

GHH544173

Courtesy of HONDA, U.S.A., INC.

*1: Part(s) are shown for one side only as the procedure is the same for both sides.
