DTC Advanced Diagnostics: P0501

DTC P0501  : CVT Speed Sensor Circuit Range/Performance

General Description

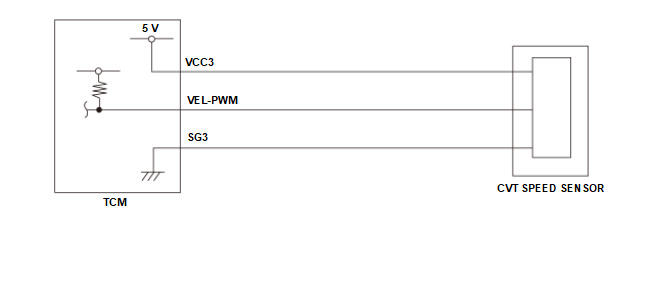

GHH536445Courtesy of HONDA, U.S.A., INC.

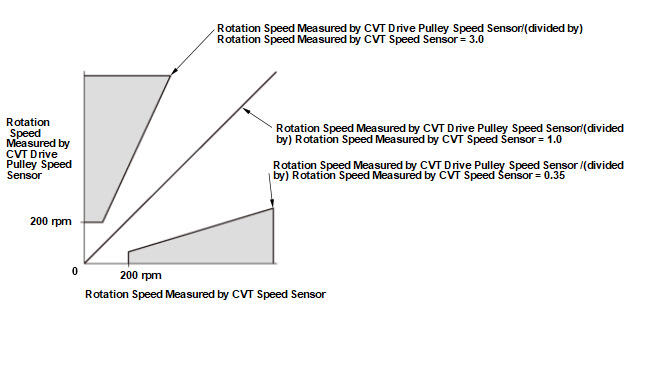

GHH536446Courtesy of HONDA, U.S.A., INC.

The CVT speed sensor is attached to the outside of the transmission housing. The CVT speed sensor detects the number of revolutions of the secondary driven gear and sends a pulsing signal to the TCM. The TCM converts the pulsing signal into vehicle speed. If no pulses occur with the secondary driven gear rotating, the TCM detects a malfunction that may be caused by an open, an intermittent open, or a short to ground. Based on the correlation between the CVT speed sensor and the CVT drive pulley speed sensor, the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution Continuous
Sequence None
Duration 4 seconds or more
DTC Type One drive cycle, MIL on, Shift position indicator blinks

Enable Conditions

Condition Minimum Maximum
Engine speed [Engine Speed] 500 rpm -
Drive pulley speed [Input Shaft (Drive Pulley) Speed rpm] 200 rpm -
12 volt battery voltage [Battery Voltage] 10.0 V -
Shift position/mode D, S, L*
Other Rotation speed [Secondary Shaft Speed 1 (rpm)] measured by CVT speed sensor is 200 rpm or more
No electrical noise in the CVT speed sensor output circuit
Decelerate and fuel cut-off for at least 3 seconds

*: Without paddle shifter

[ ]: HDS Parameter

Malfunction Threshold

One of the conditions is met:

Possible Cause

NOTE:

The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Confirmation Procedure

Operating Condition

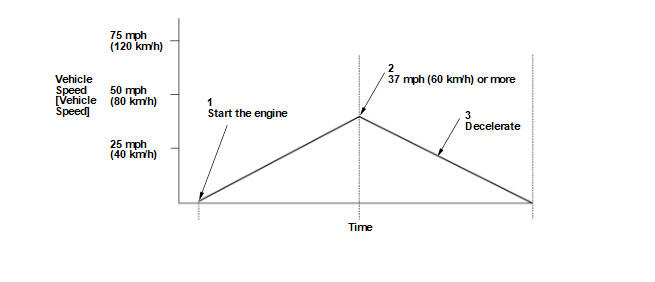

GHH536447Courtesy of HONDA, U.S.A., INC.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on, the shift position indicator blinks, and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
