DTC P0010: Inspection

VTC Oil Control Solenoid Valve A Component Inspection

Test Procedure

• Preparation
• VTC oil control solenoid valve A connector (2P): disconnected
• Procedure
  1. -

     Perform the inspection according to the following chart.

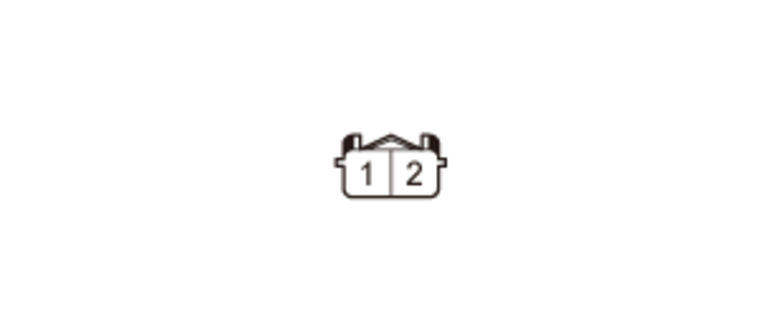

			(Disconnected) VTC oil control solenoid valve A connector (2P) male terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Valve internal circuit inspection	OFF		About 7.01 - 7.75 Ohm (at room temperature)

Results

• If abnormal, there is a problem with VTC oil control solenoid valve A.

VTC_IN, PG Circuit Inspection

Test Procedure

• Preparation
  1. -

     VTC oil control solenoid valve A connector (2P): disconnected

  2. -

     PCM connector E (80P): disconnected

• Procedure
  1. -

     Perform the inspection according to the following chart.

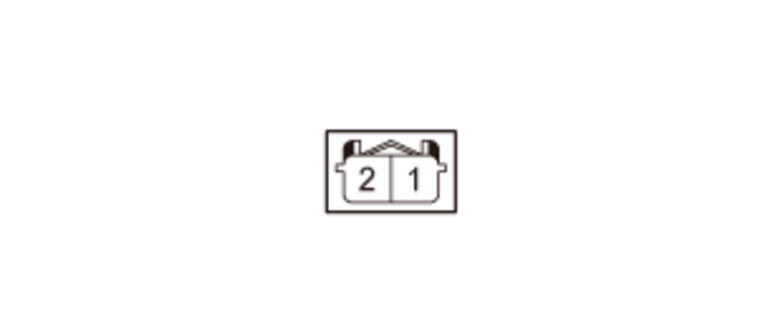

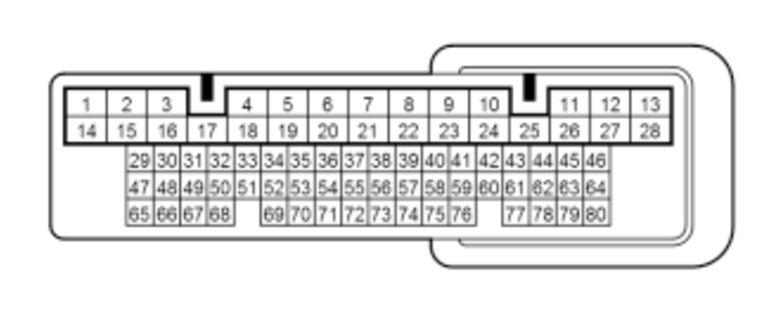

			(Disconnected) VTC oil control solenoid valve A connector (2P) female terminals	(Disconnected) PCM connector E (80P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	PG open wire inspection	OFF			There is less than 1 Ohm
	VTC_IN open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	VTC_IN shorted to ground inspection	OFF			There is more than 1 MOhm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
