Removal and Installation

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

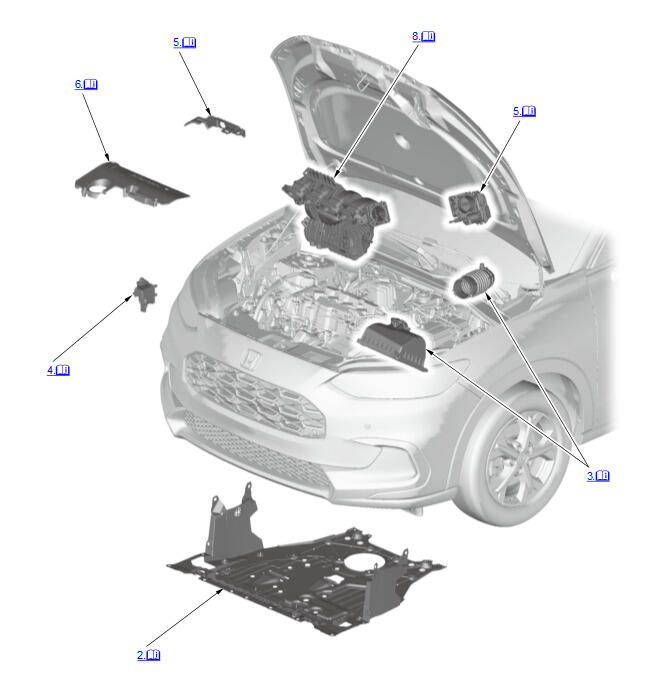

1. Vehicle - Lift
2. Engine Undercover - Remove
   • Engine Undercover
3. Air Cleaner Area Parts - Remove
   • Air Cleaner Area
   • • -

       Air Cleaner Housing Cover

     • -

       Air Flow Tube

4. EVAP Canister Purge Valve - Remove
   • EVAP Canister Purge Valve
5. Intake Manifold Area Parts - Remove/Move
   • Intake Manifold Area
   • • -

       Throttle Body

       NOTE:  Do not disconnect and excessively bend the water bypass hoses.

     • -

       Fuel Feed Hose Bracket

6. Engine Cover - Remove
   • Engine Cover

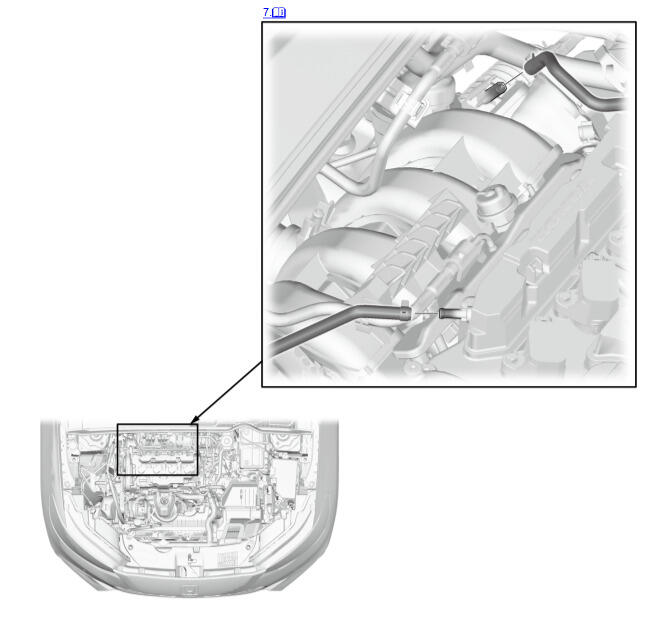

7. Hose - Disconnect
   • Intake Manifold Area
   • • -

       PCV Hose

     • -

       PCS Out Tube

8. Intake Manifold - Remove
   • Intake Manifold
9. All Removed Parts - Install
   • Install the parts in the reverse order of removal.
