Power Windows Component Location Index

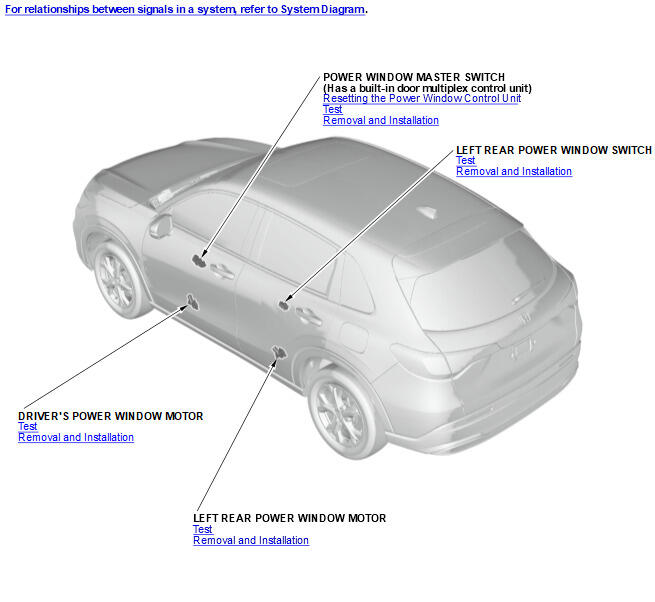

GHH543662

Courtesy of HONDA, U.S.A., INC.

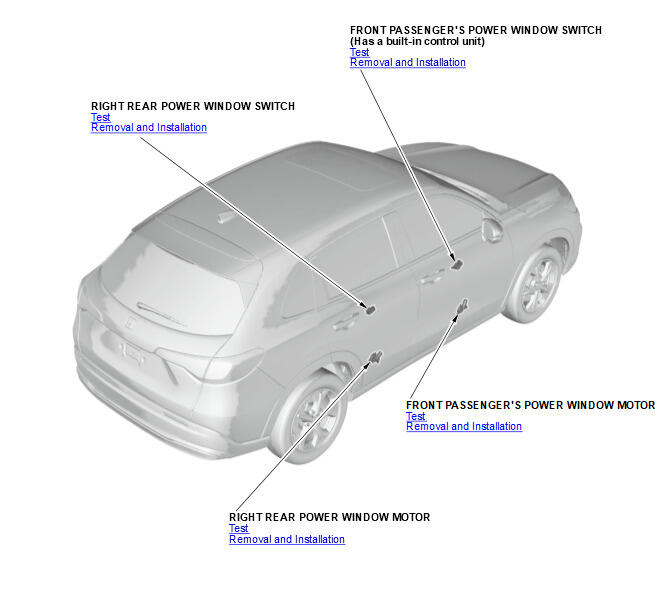

GHH543663

Courtesy of HONDA, U.S.A., INC.

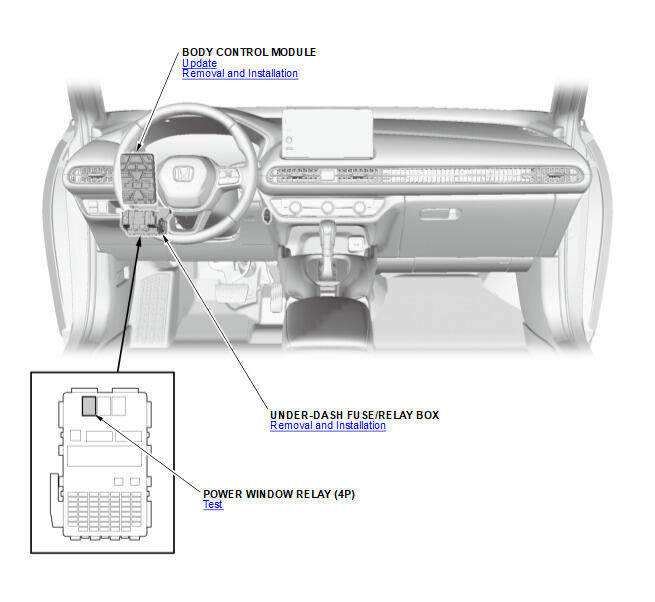

GHH543664

Courtesy of HONDA, U.S.A., INC.
