DTC P00FE
DTC P00FE : Evaporative Emission (EVAP) Vent Line Blockage
General Description

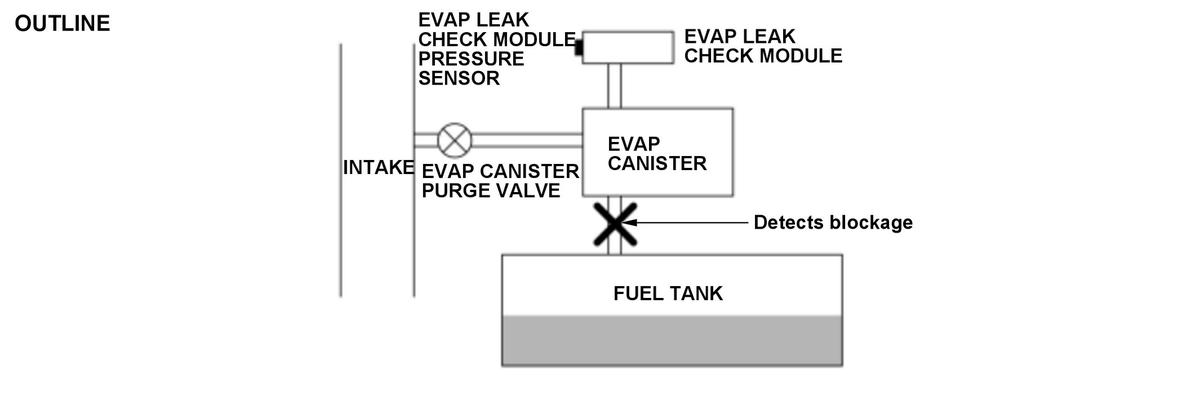

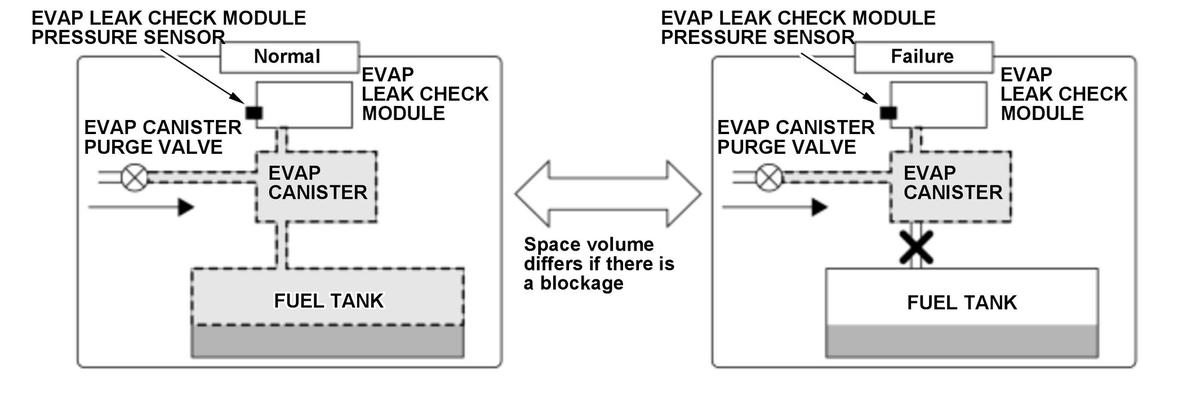

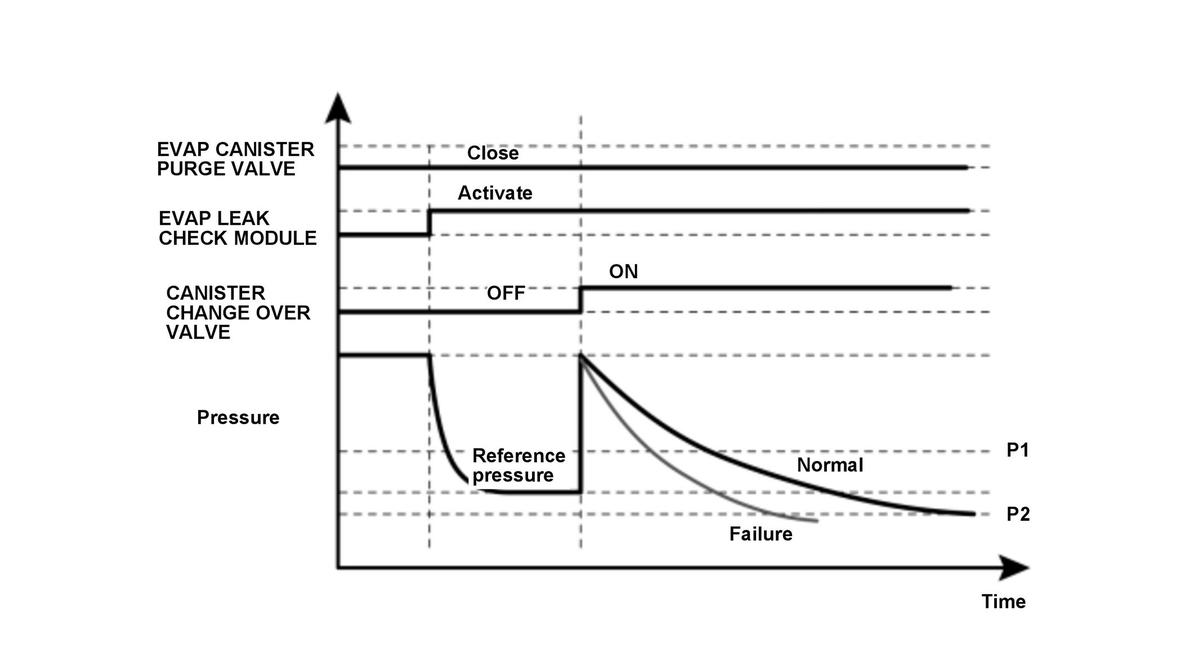

Vent blockage is determined by the difference in the volume of space of the fuel tank. The powertrain control module (PCM) closes the evaporative emission (EVAP) canister purge valve and estimates the volume of space from the pressure behavior when the pressure is decompressed by the EVAP leak check module. If the estimated volume of space is small, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Once per driving cycle |
| Sequence | None |
| Duration | - |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
Common Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Barometric pressure [ Baro Sensor ] | 76 kPa (569 mmHg, 22.5 inHg) | - |
| 12 volt battery voltage [ Battery ] | 10.5 V | - |
| Other | No refueling during the driving cycle | |
| [ ] : HDS Parameter | ||
Conditions before soak
| Condition | Minimum | Maximum |
|---|---|---|
| Driving time | 10 minutes | - |
| Vehicle speed [ Vehicle Speed ] * | 25 mph (40 km/h) | - |
| Drive distance after refueling | 7 miles (10 km) | - |
| Average fuel level [ Fuel Level (Average) ] | - | 85 % |
| *: For at least 5 minutes | ||
Conditions during soak
| Condition | Minimum | Maximum |
|---|---|---|
| Soak duration | 5 hours | - |
| Engine coolant temperature [ ECT Sensor 2 ] | 40.0 deg.F (4.4 deg.C) | 95 deg.F (35 deg.C) |
Malfunction Threshold
The calculated volume of space in the EVAP system is 10.7 L (2.83 US gal) or less.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- EVAP vent line blockage
- Vent shut float blockage
Confirmation Procedure
Operating Condition
- Drive the vehicle for at least 10 minutes with the following conditions:
- Average fuel level [ Fuel Level (Average) ] of 85 % or less
- Distance of 7 miles (10 km) or more after refueling
- Vehicle speed [ Vehicle Speed ] of 25 mph (40 km/h) or more for at least 5 minutes
- Turn the vehicle to the OFF (LOCK) mode and wait for at least 5 hours with maintaining the engine coolant temperature [ ECT Sensor 2 ] between 40.0 deg.F (4.4 deg.C) and 95 deg.F (35 deg.C).
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
