Camshaft Oil Seal Replacement - In Car: Replacement

NOTE:  Where icon is shown for further information continue to the information below.

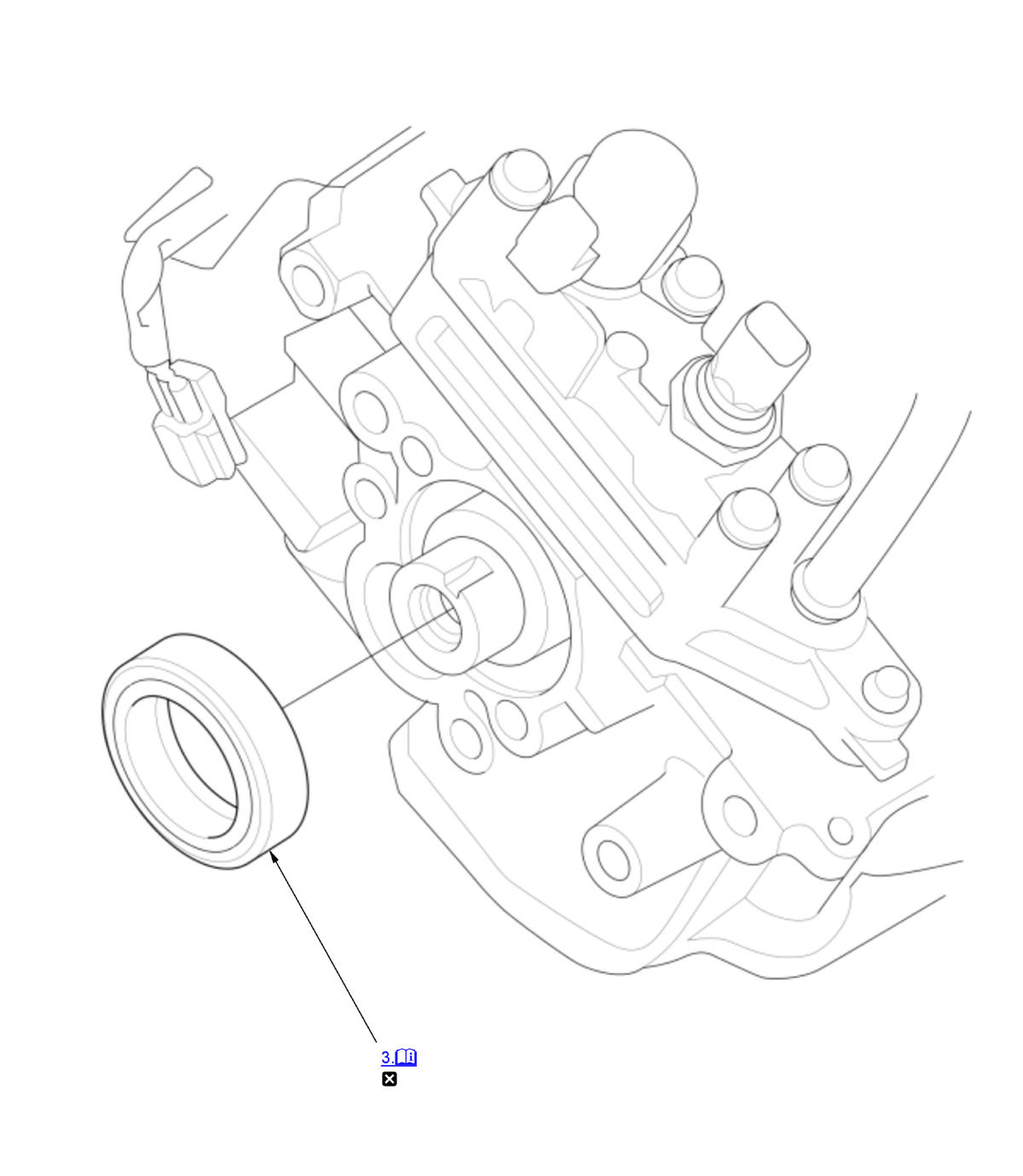

Front

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

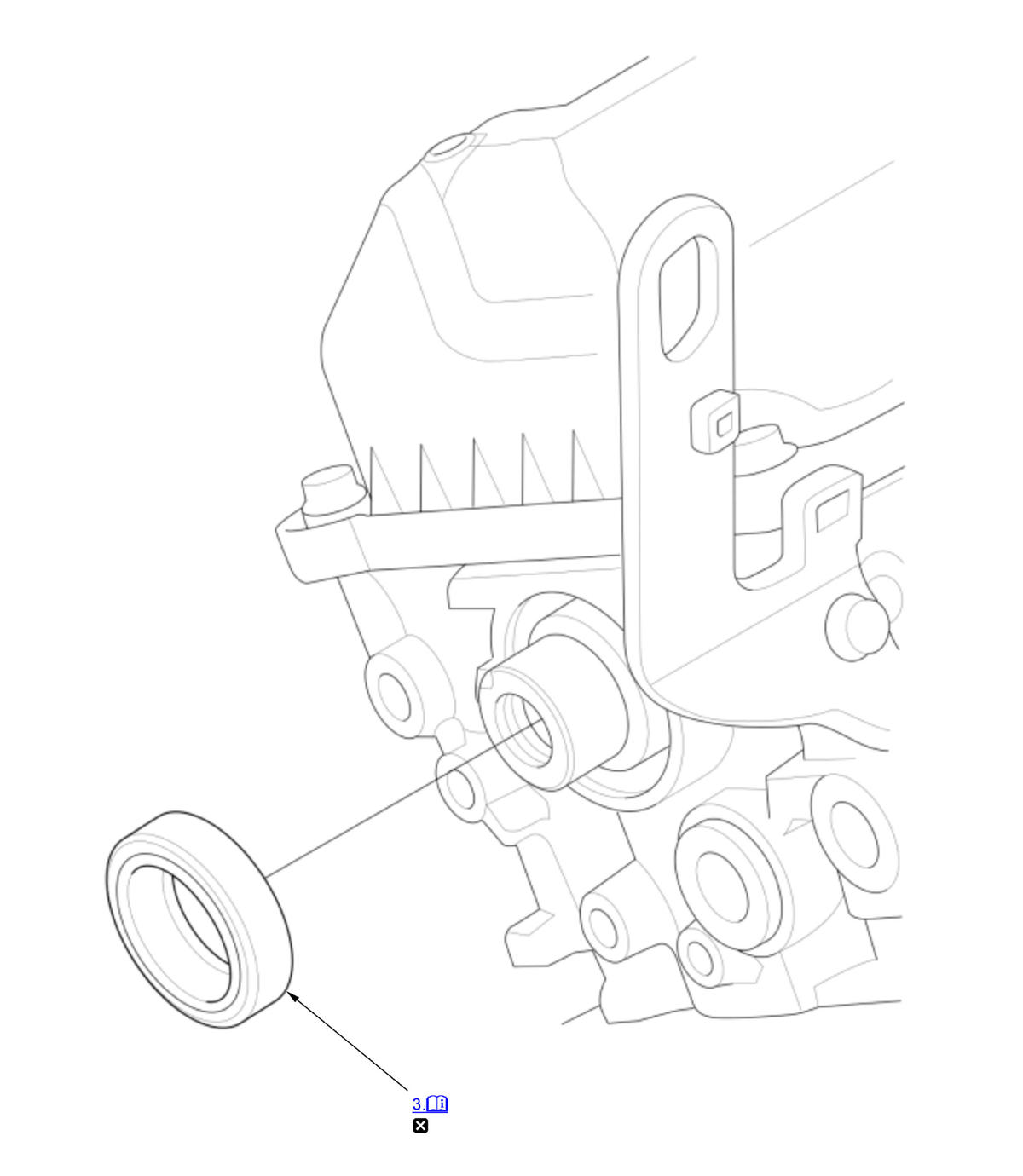

Rear

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Timing Belt - Remove
2. Camshaft Pulley and Back Cover - Remove
3. Camshaft Oil Seal - Replace

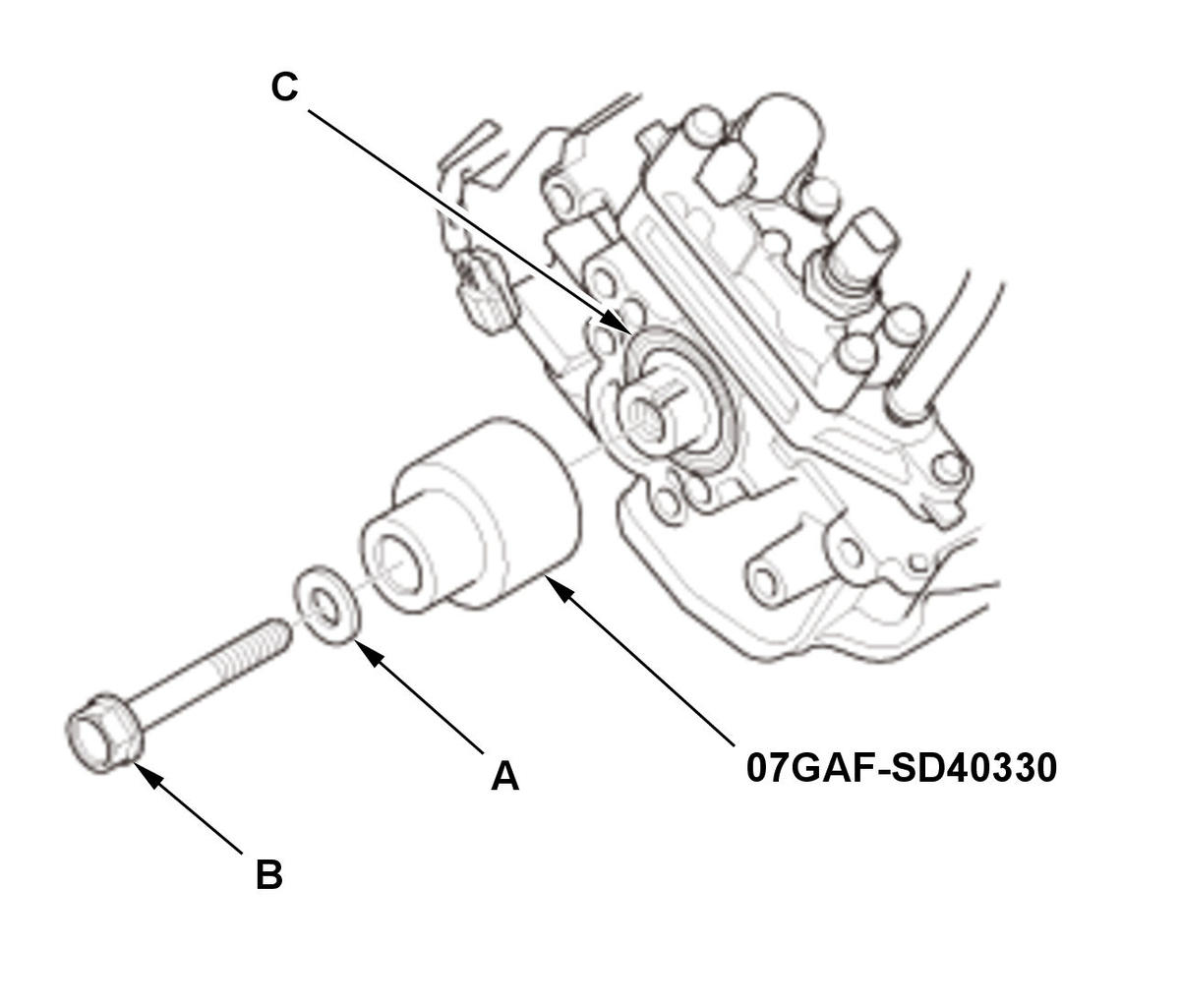

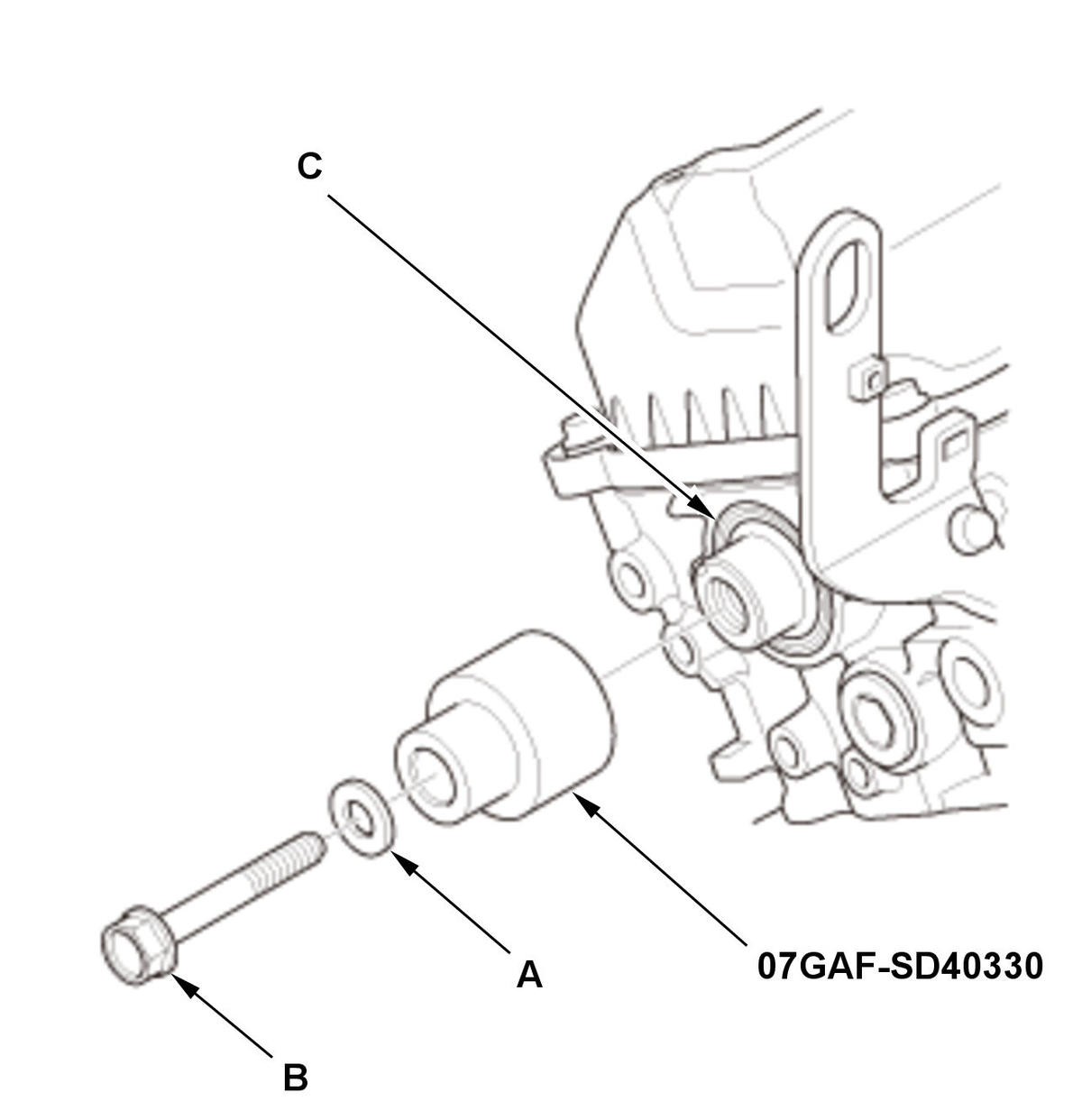

   FRONT  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. REAR  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

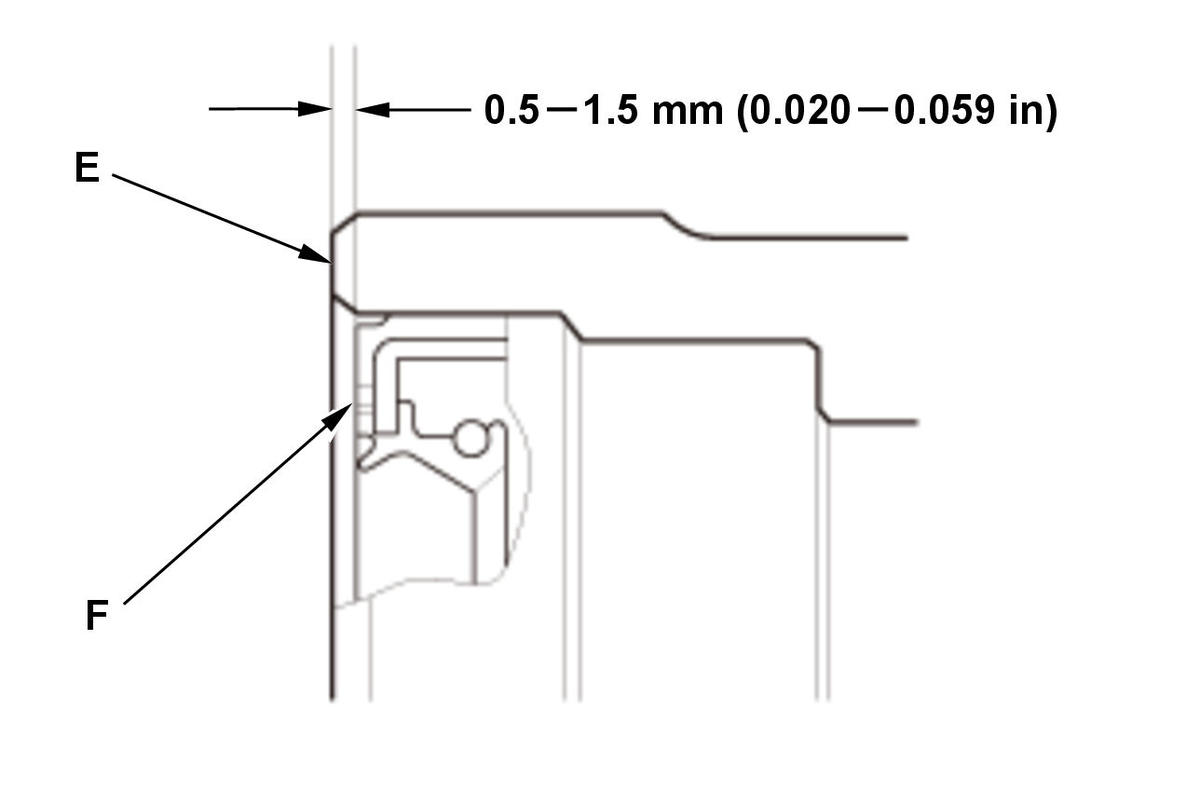

   1. Clean and dry the camshaft oil seal housing. 2. Apply a light coat of new engine oil to the lip of the camshaft oil seal. 3. Using the ball joint remover/installer, a washer (A), and a 12 x 75 x 1.25 mm bolt (B), press in the camshaft oil seal (C) squarely into the cylinder head to the specified installed height. 4. Measure the distance between the cylinder head surface (E) and the camshaft oil seal (F). Camshaft Oil Seal Installed Height  5. Clean the excess oil off the camshaft, and check that the camshaft oil seal lip is not distorted.

   0.5-1.5 mm (0.020-0.059 in)

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
