Valve, Spring, and Valve Seal Removal and Installation: Removal

NOTE:

Identify the valves and the valve springs as they are removed so that each item can be reinstalled in its original position.

  1. Cylinder Head - Remove
  2. Camshaft - Remove
  3. Valve and Valve Spring - Remove
    GHH455234Courtesy of HONDA, U.S.A., INC.

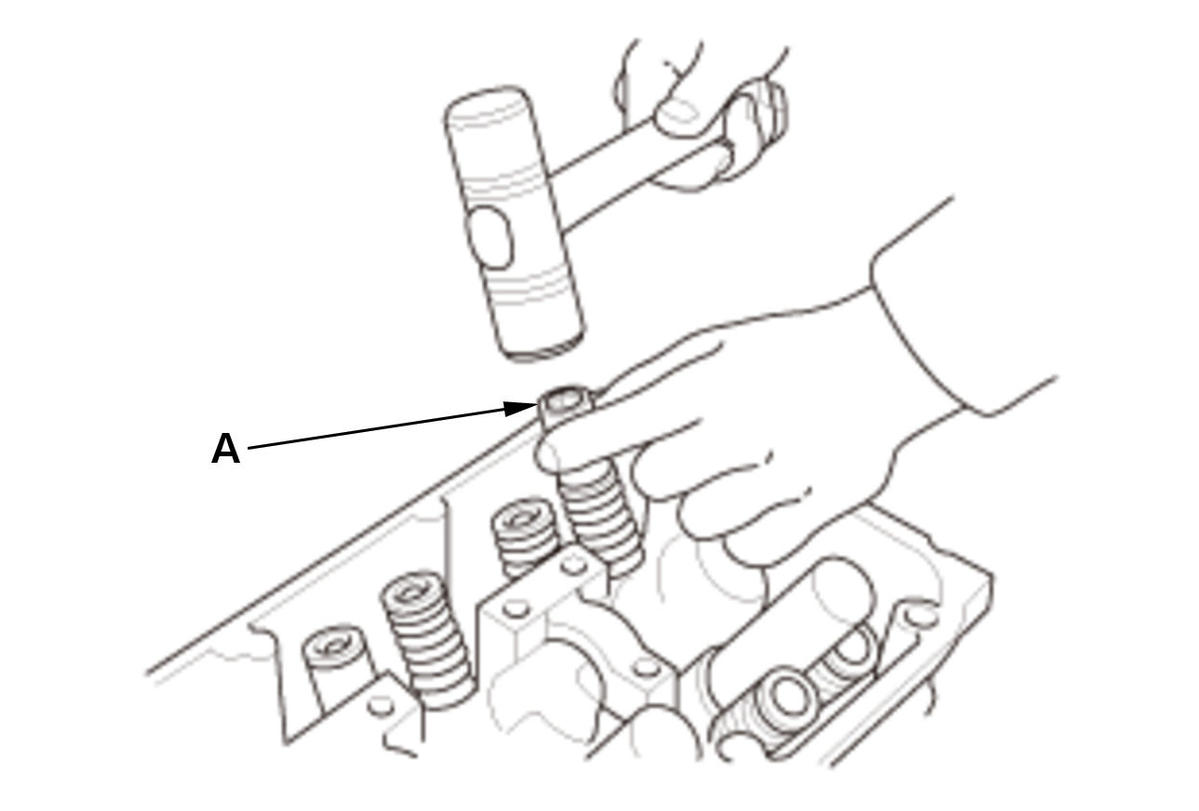

    		 1. Using an appropriate-sized socket (A) and a plastic mallet, lightly tap the spring retainer to loosen the valve cotters.
    GHH455235Courtesy of HONDA, U.S.A., INC.

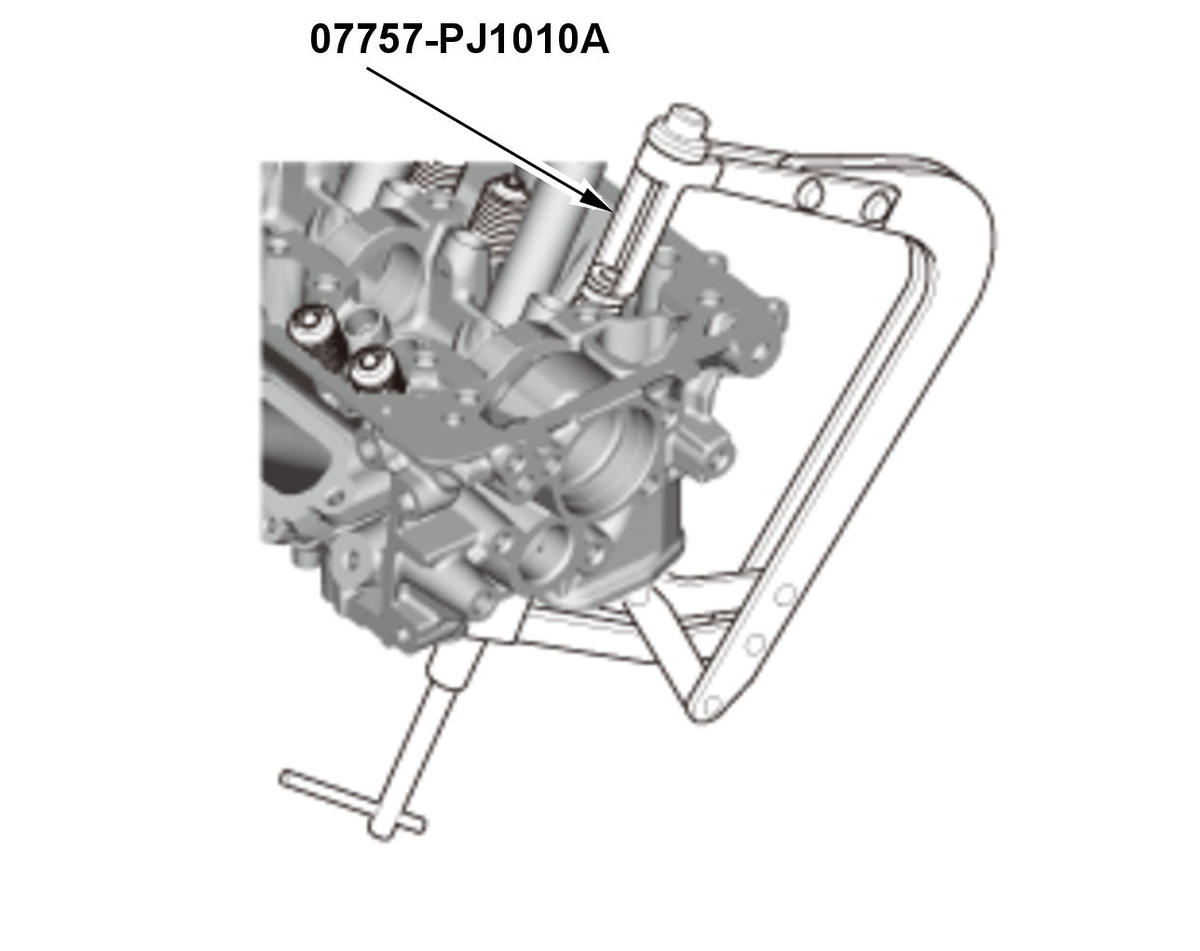

    		 2. Install the valve spring compressor attachment and the valve spring compressor. Compress the spring and remove the valve cotters.

    3. Remove the valve spring compressor and the valve spring compressor attachment, then remove the spring retainer, the valve spring, and the valve.
  4. Valve Seal - Remove
    GHH455236Courtesy of HONDA, U.S.A., INC.

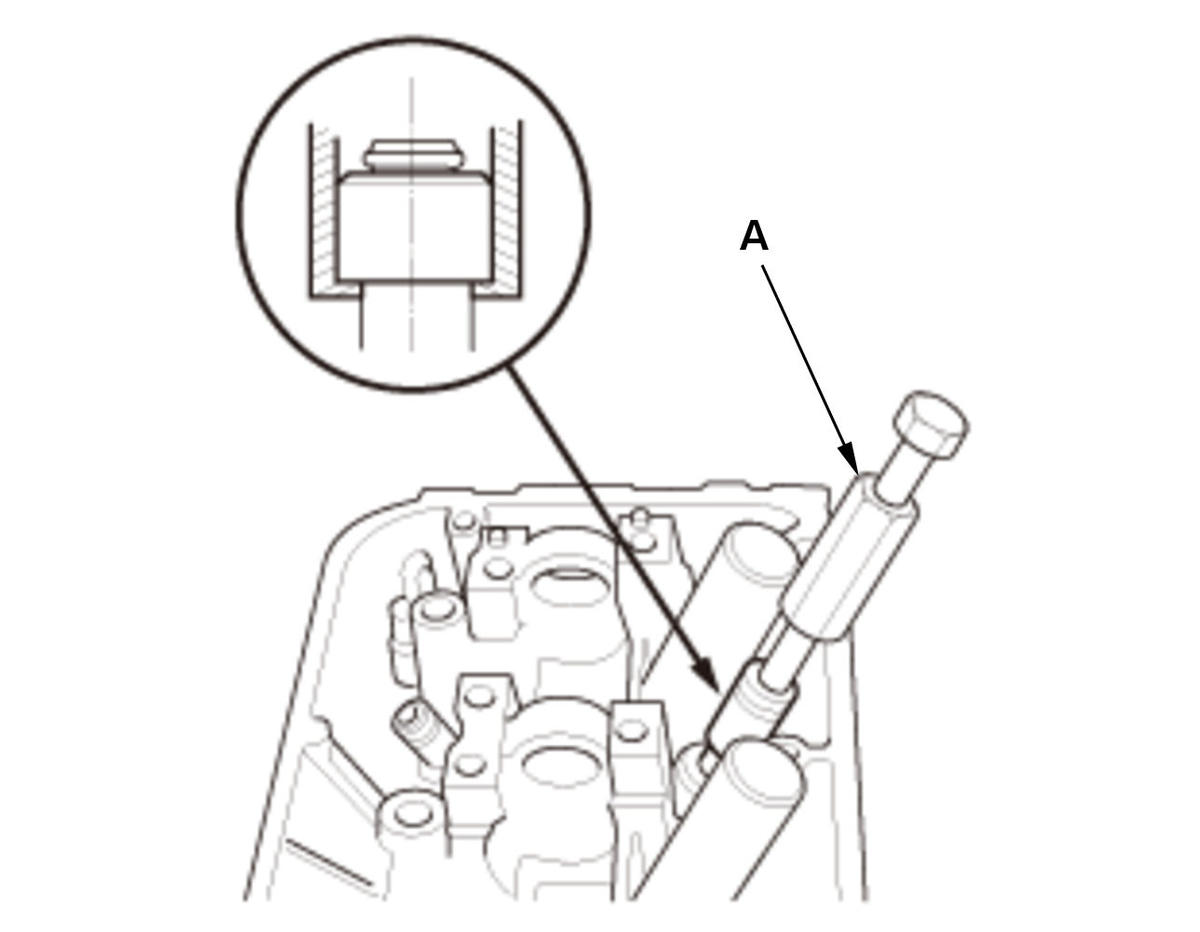

    		 1. Install a valve guide seal remover (A).
    GHH455237Courtesy of HONDA, U.S.A., INC.

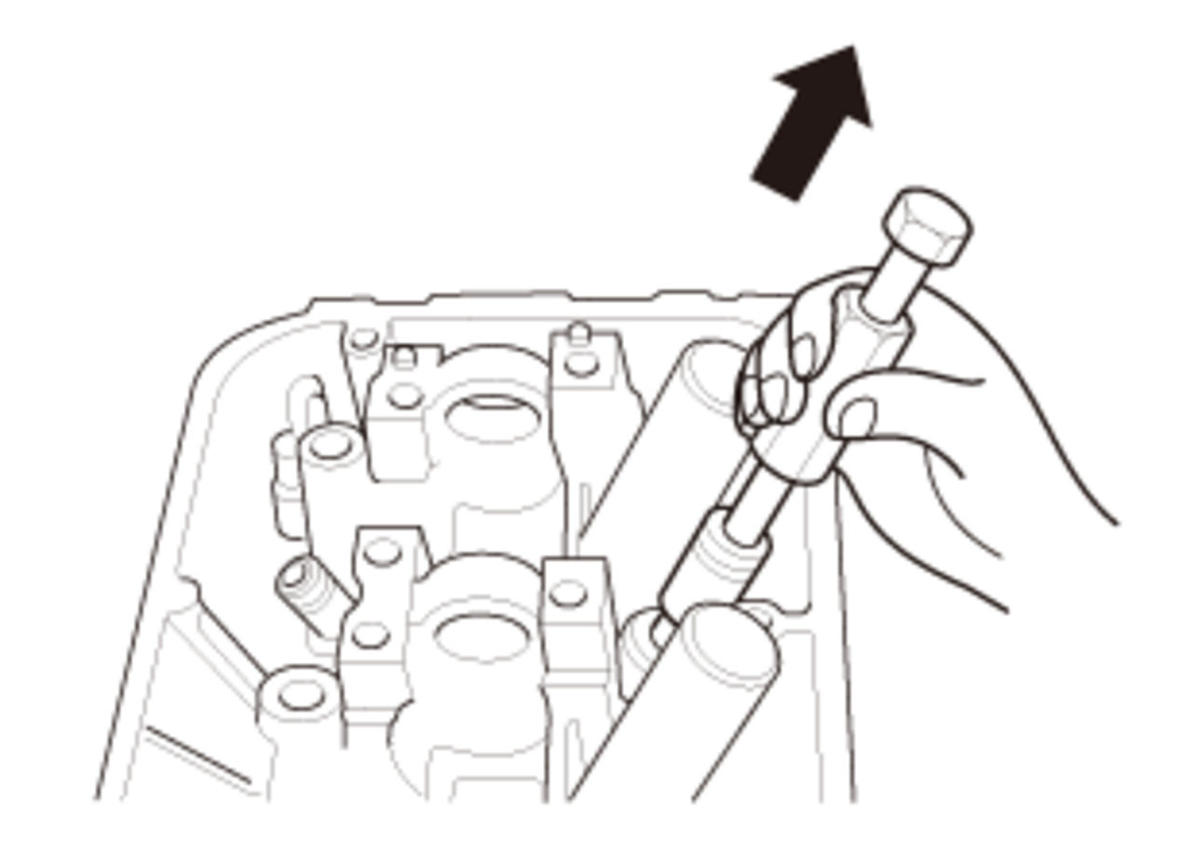

    		 2. Remove the valve seals.
  5. Valve Spring Seat - Remove
    GHH455238Courtesy of HONDA, U.S.A., INC.
