Intake Manifold Removal and Installation (2017 2018 2019): Removal

NOTE:

Refer to the Exploded View if needed during this procedure.

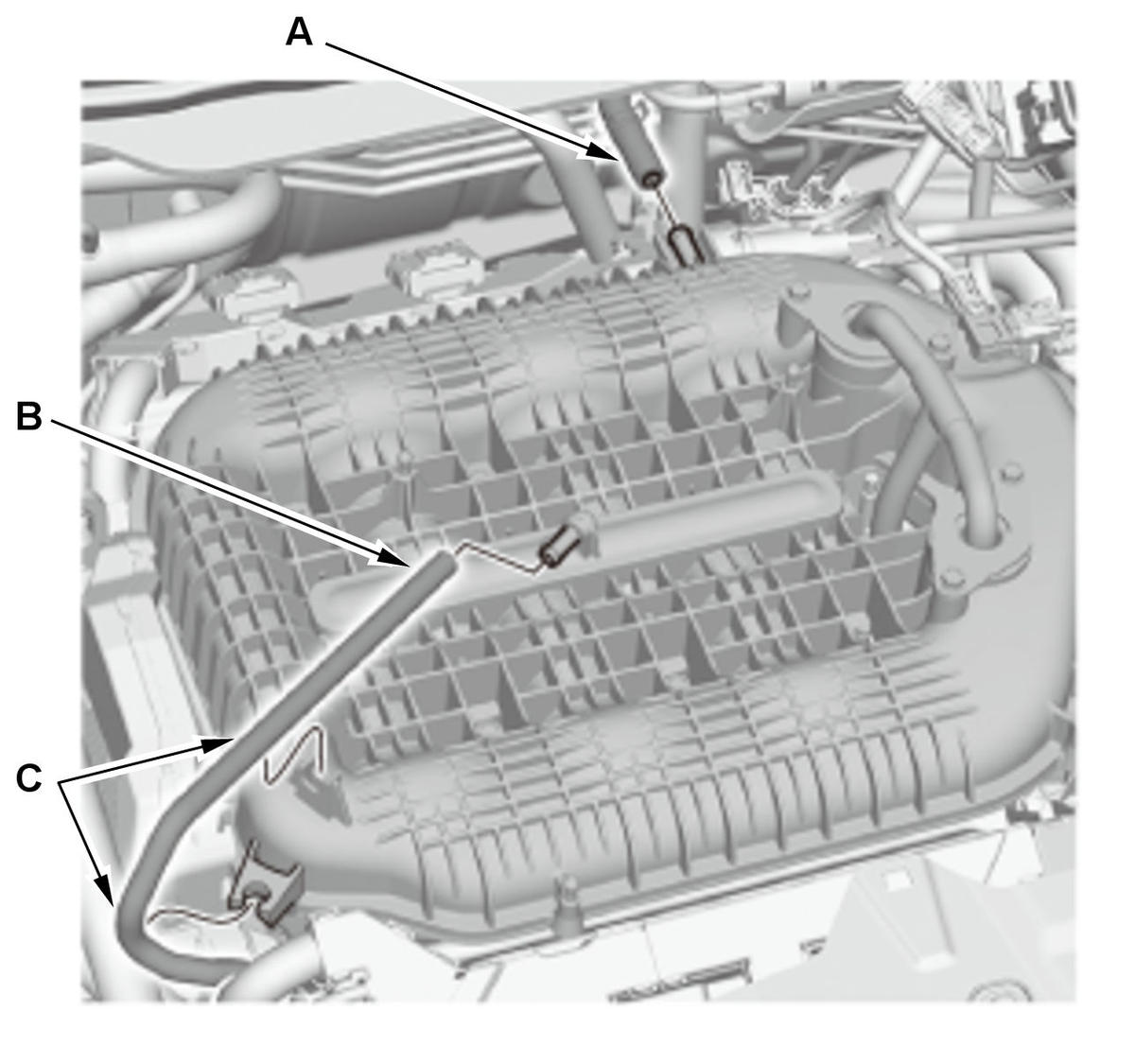

Brake Booster Vacuum Hose and PCV Hose - Disconnect

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the brake booster vacuum hose (A) and the PCV hose (B).

2. Remove the hose clamps (C).

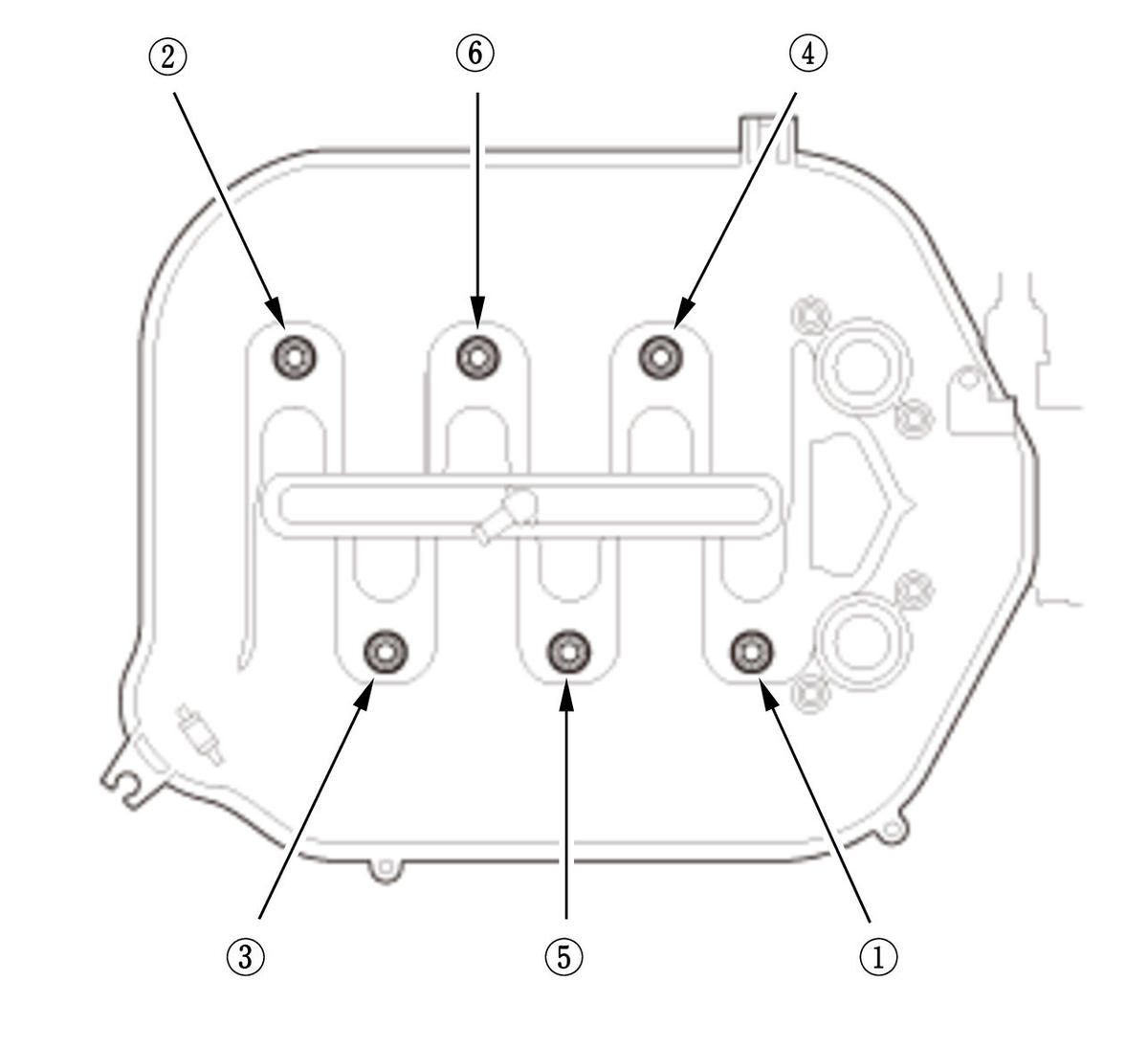

Intake Manifold - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the intake manifold mounting bolts and nuts sequentially in three steps.

2. Remove the intake manifold.

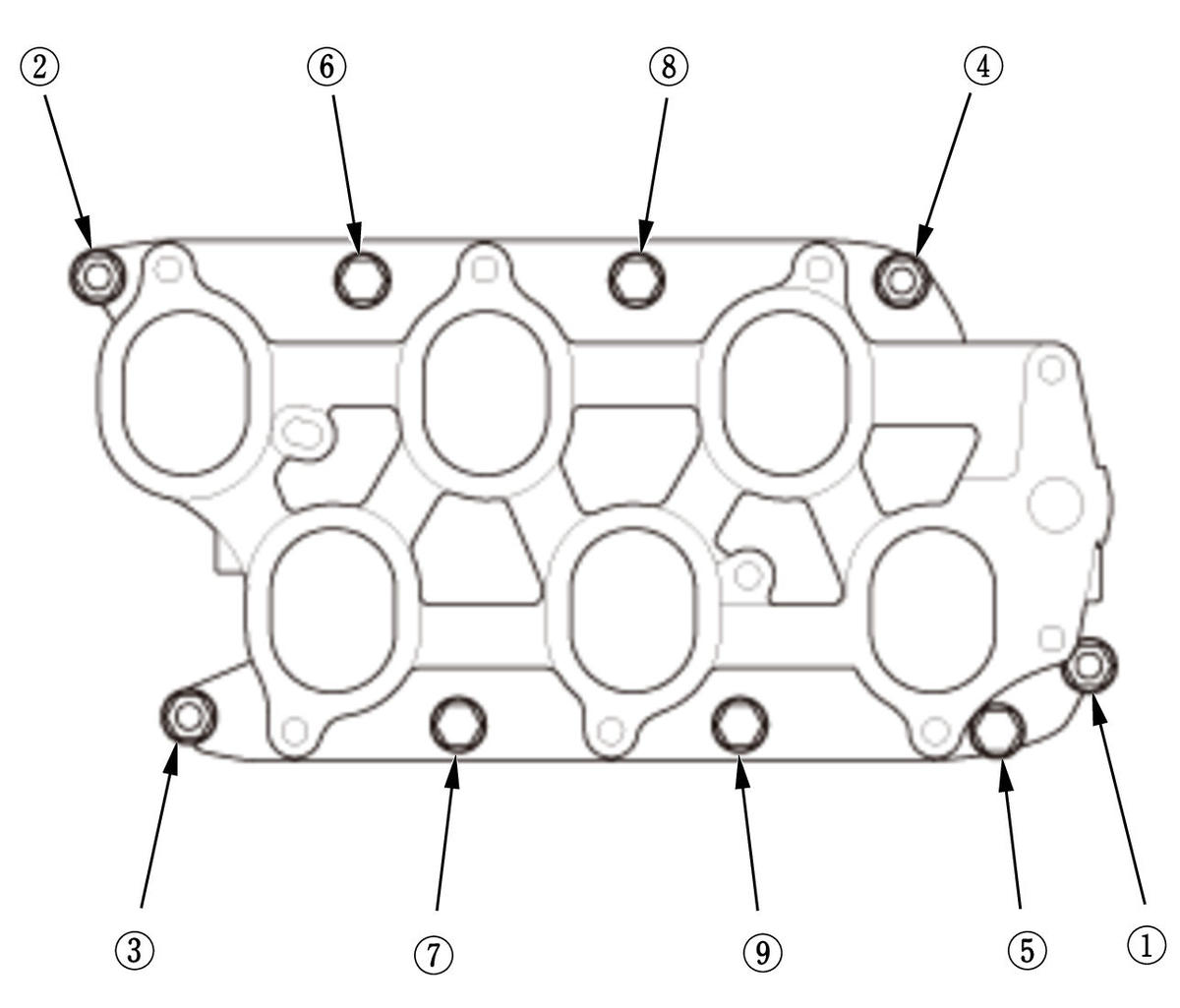

Intake Manifold Base - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the intake manifold base mounting bolts and nuts sequentially in three steps.

2. Remove the intake manifold base.
