Crankshaft Pulley Removal and Installation: Installation

NOTE:

Where icon is shown, further information shown below.

GHH455042Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions

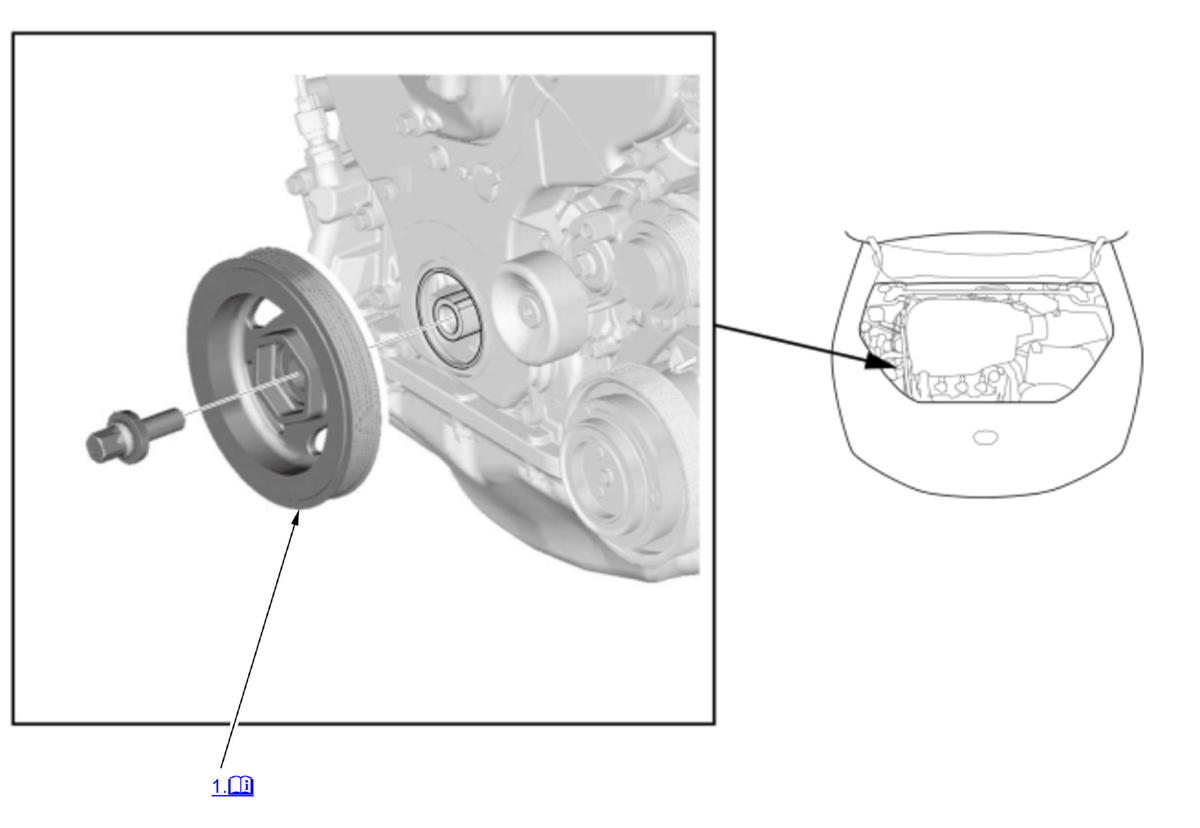

  1. Crankshaft Pulley - Install
    GHH455043Courtesy of HONDA, U.S.A., INC.

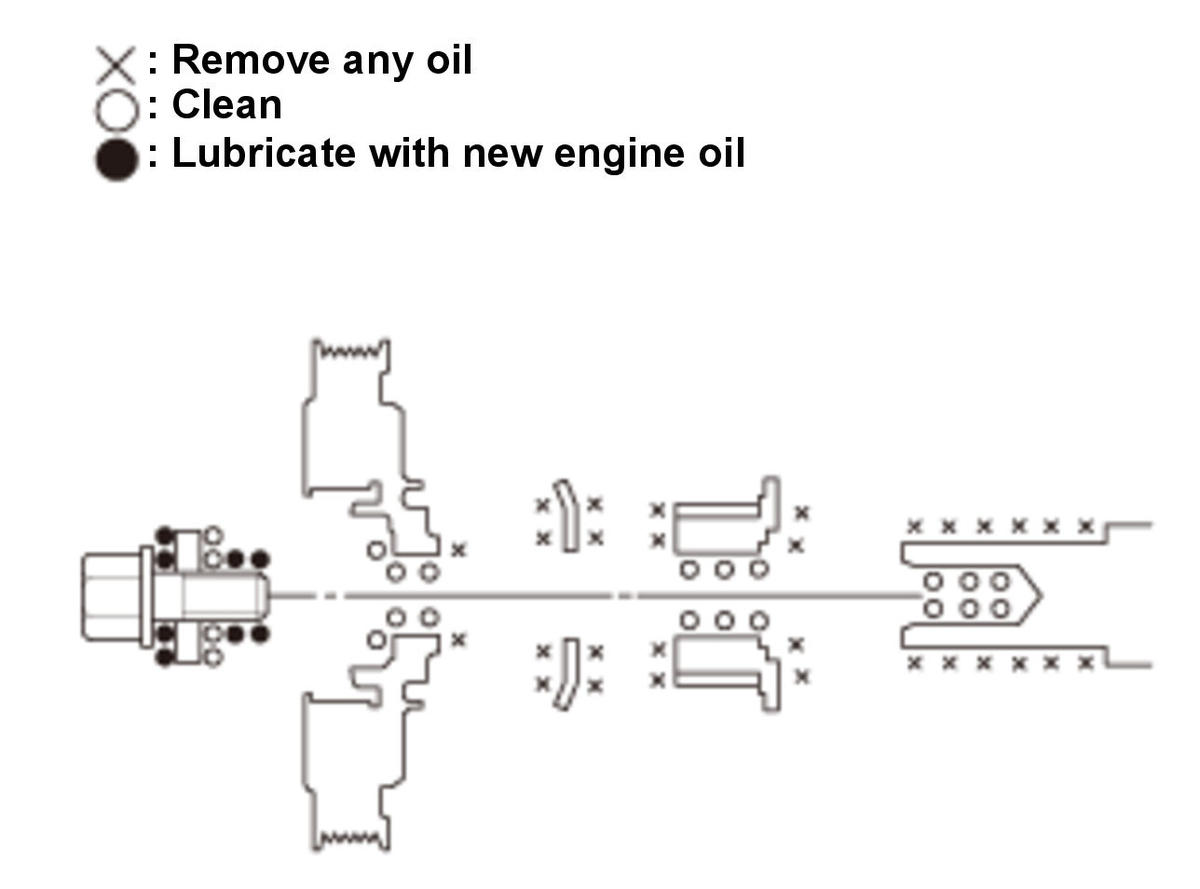

    		 1. Remove any oil and clean the pulleys, the crankshaft, the bolt, and the washer. Lubricate with new engine oil as shown.
    GHH455044Courtesy of HONDA, U.S.A., INC.
    		 2. Install the crankshaft pulley.

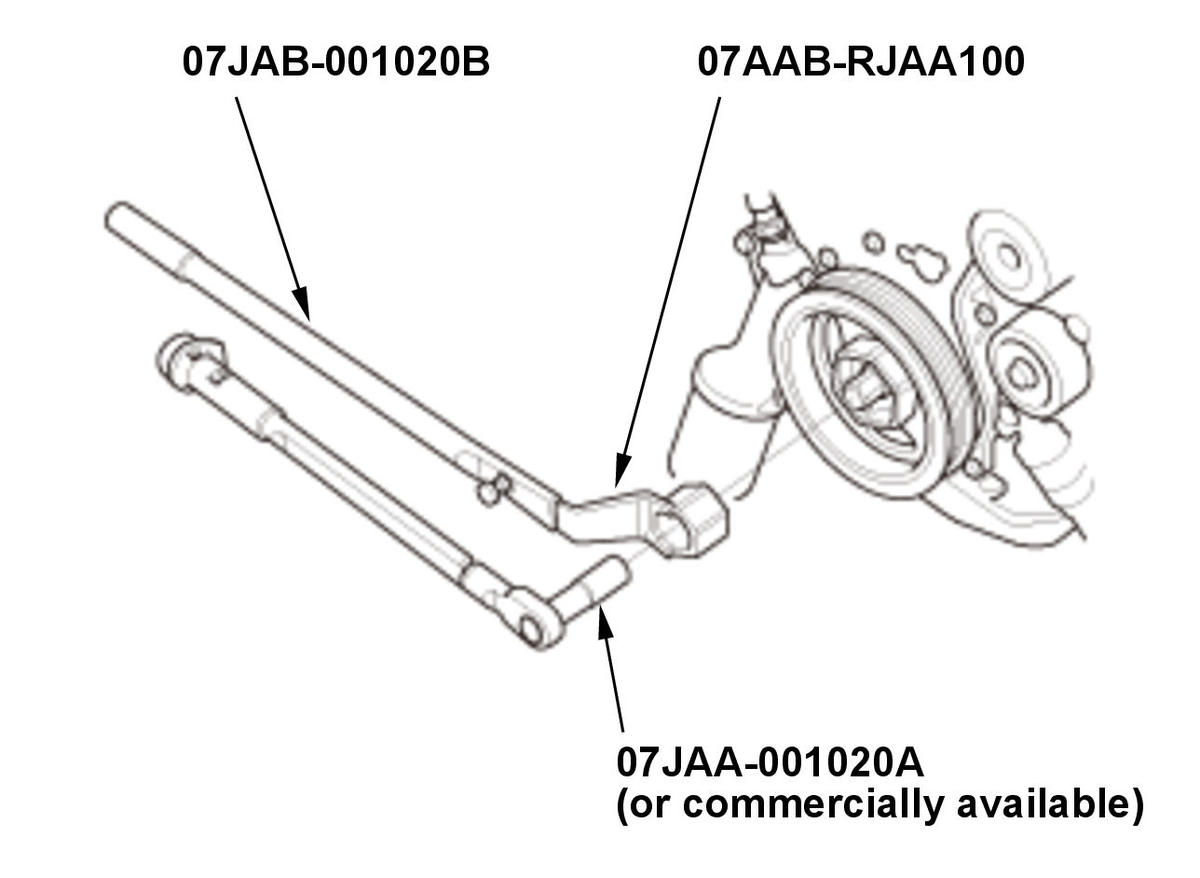

    3. Hold the pulley with the holder handle and the crankshaft pulley holder. Torque the bolt to 65 N.m (6.6 kgf.m, 48 lbf.ft) with a torque wrench and the heavy duty 19 mm socket.

    NOTE:

    Do not use an impact wrench.
    GHH455045Courtesy of HONDA, U.S.A., INC.

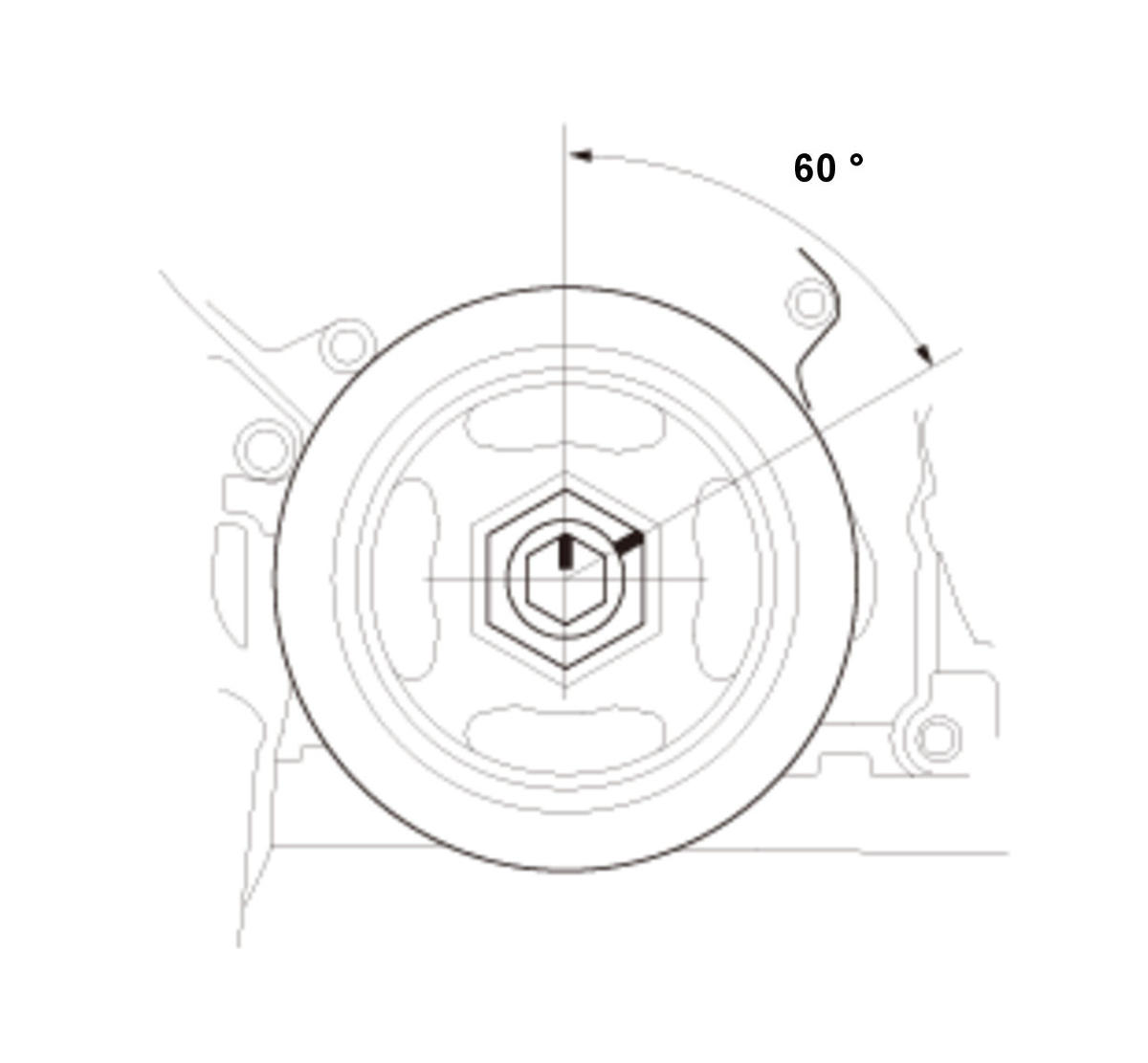

    		 4. Tighten the bolt an additional 60°.
  2. Right Front Inner Fender - Install
  3. Right Front Wheel - Install
  4. Drive Belt - Install
