Removal and Installation

NOTE:

How to read the torque specifications .

  1. Front Bulkhead Cover - Remove

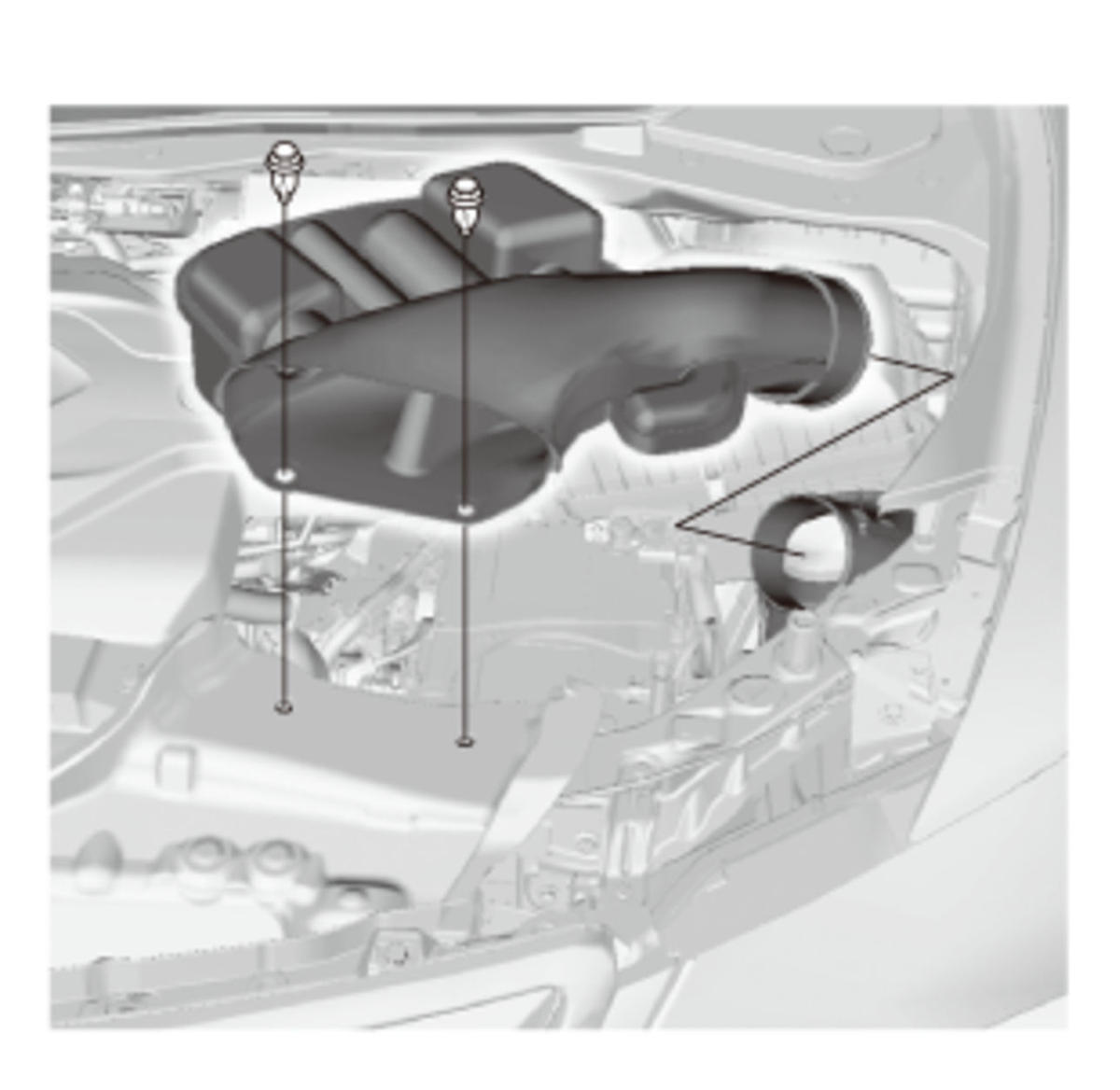

  2. Air Intake Tube - Remove
    GHH455035Courtesy of HONDA, U.S.A., INC.
  3. Intake Air Duct (Air Cleaner Side) - Disconnect
  4. Air Cleaner - Remove

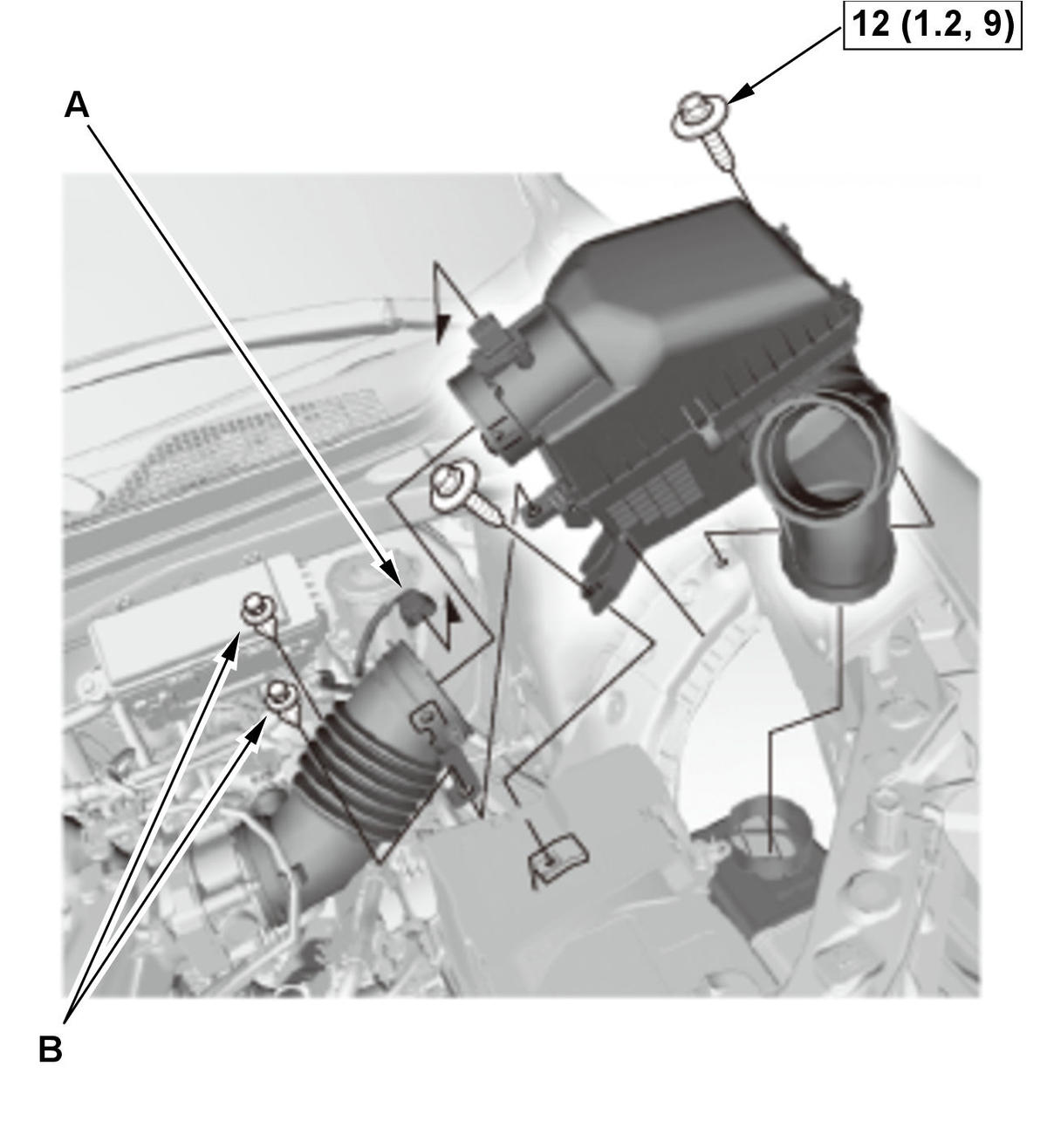

    Fig 1: Air Cleaner Clips With Torque Specifications
    GHH455036Courtesy of HONDA, U.S.A., INC.
    1. Disconnect the connector (A).

    2. Remove the clips (B).

    3. Remove the air cleaner.
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
