DTC U0029 (Engine Mount Control Unit (Without CAN Gateway)): General Description

Courtesy of HONDA, U.S.A., INC.

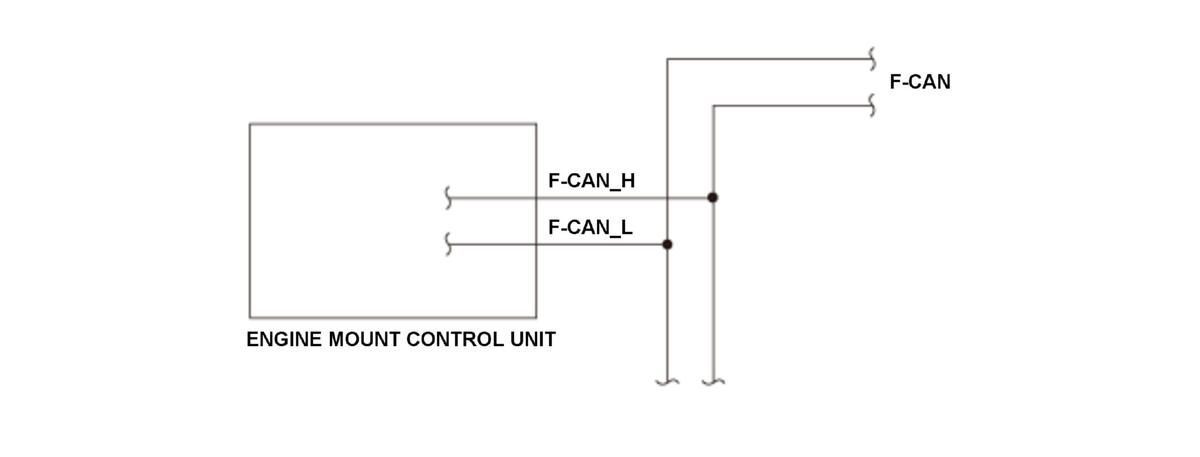

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (F-CAN H and F-CAN L). When the engine mount control unit does not receive the signals via the F-CAN lines for a set time, the engine mount control unit detects a malfunction and stores a DTC.
