Engine Lubrication System Component Location Index

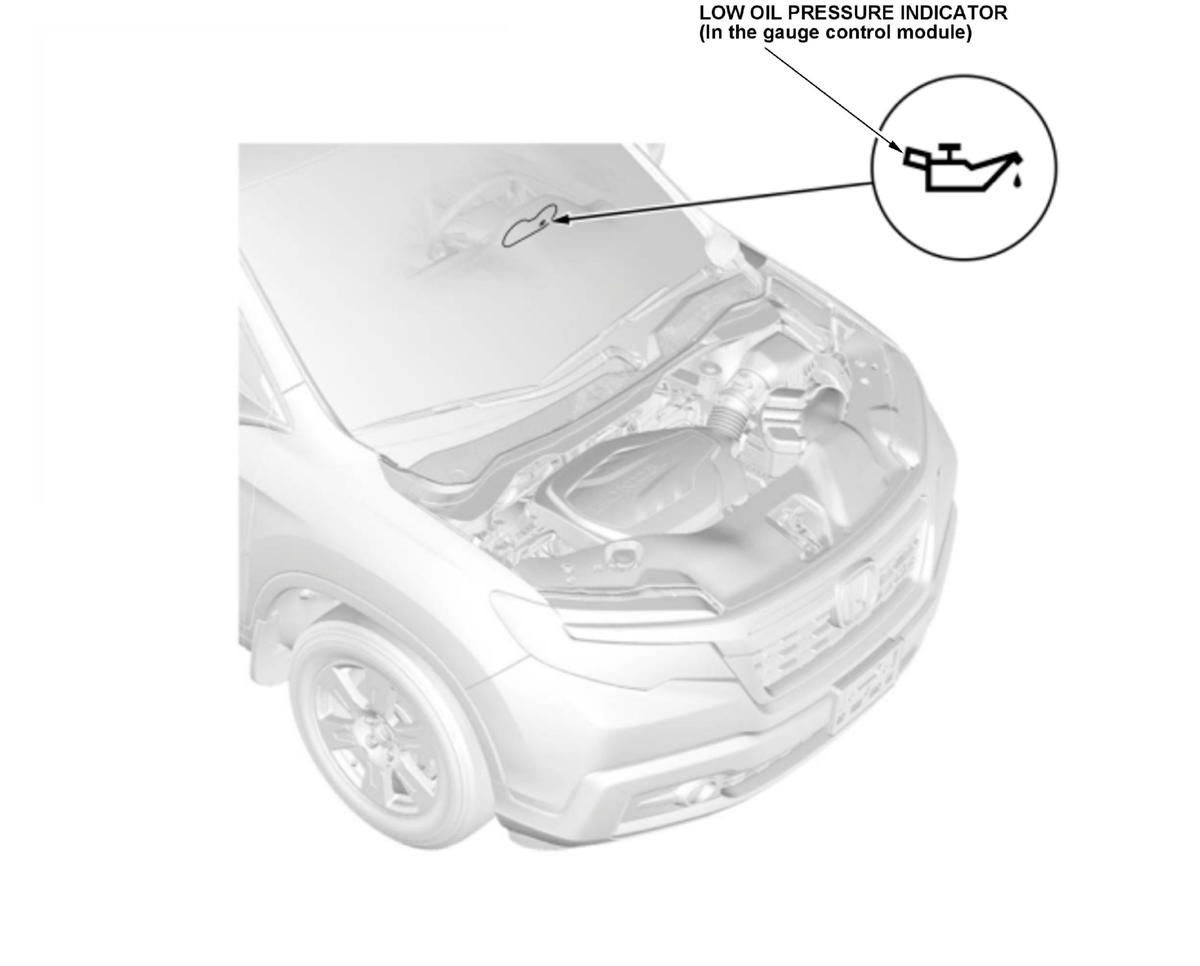

GHH457768

Courtesy of HONDA, U.S.A., INC.

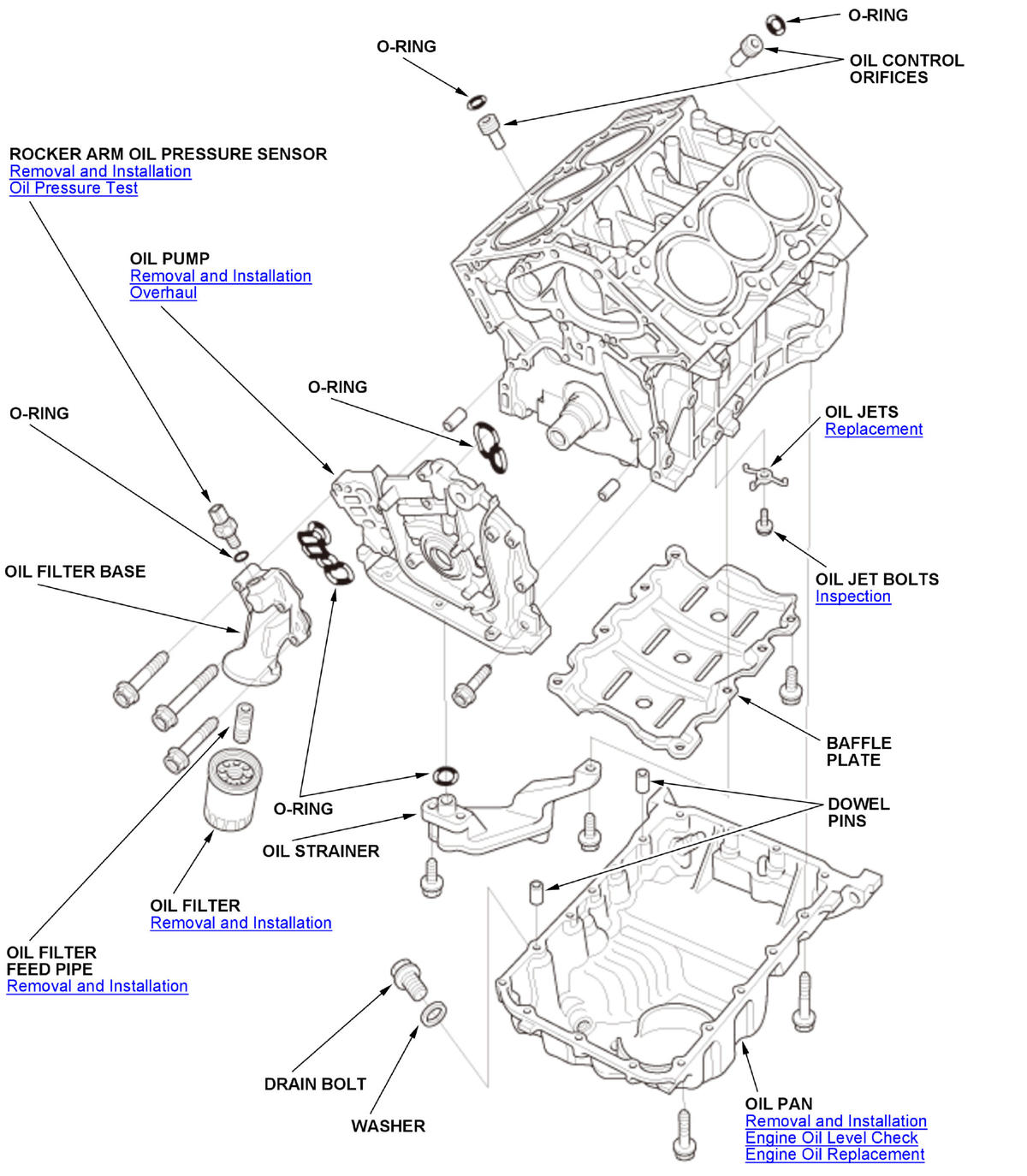

GHH457769

Courtesy of HONDA, U.S.A., INC.
