Power Windows System Description

Basic Control/Function

• Manual Up/Down Function

  The 1-step operation of the power window switch moves the window up or down. This is available when the vehicle is in the ON mode or the vehicle OFF operation.

• Auto Up/Down Function (Front Windows Only)

  The 2-step operation of the power window switch moves the window up or down. This is available when the vehicle is in the ON mode or the vehicle OFF operation.

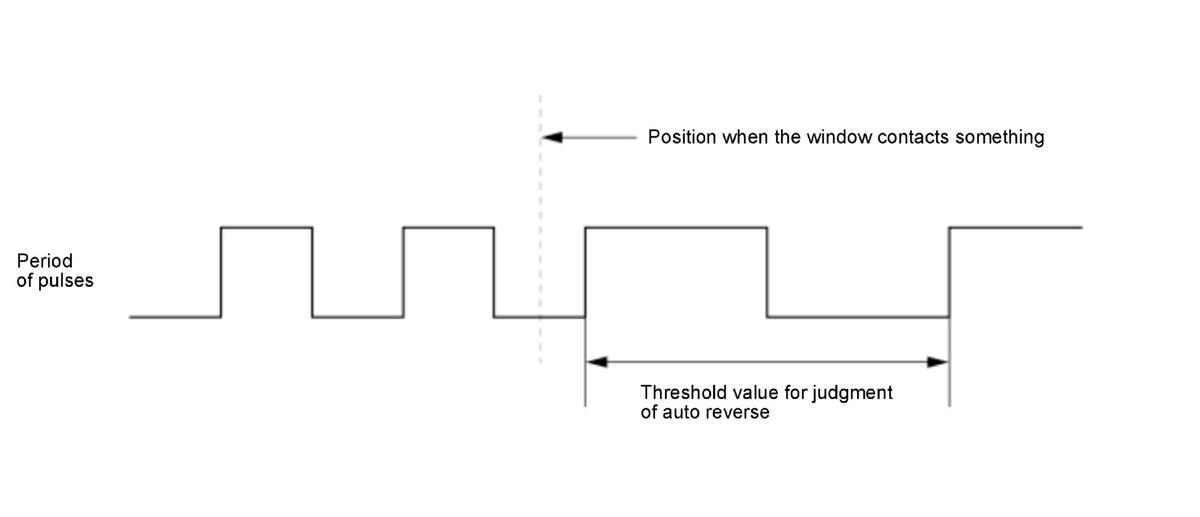

Auto Reverse Power Window Function (except back power window)

When an object is detected during the AUTO UP operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)), it will reverse to the half open position (about 220 mm (8.66 in)). In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

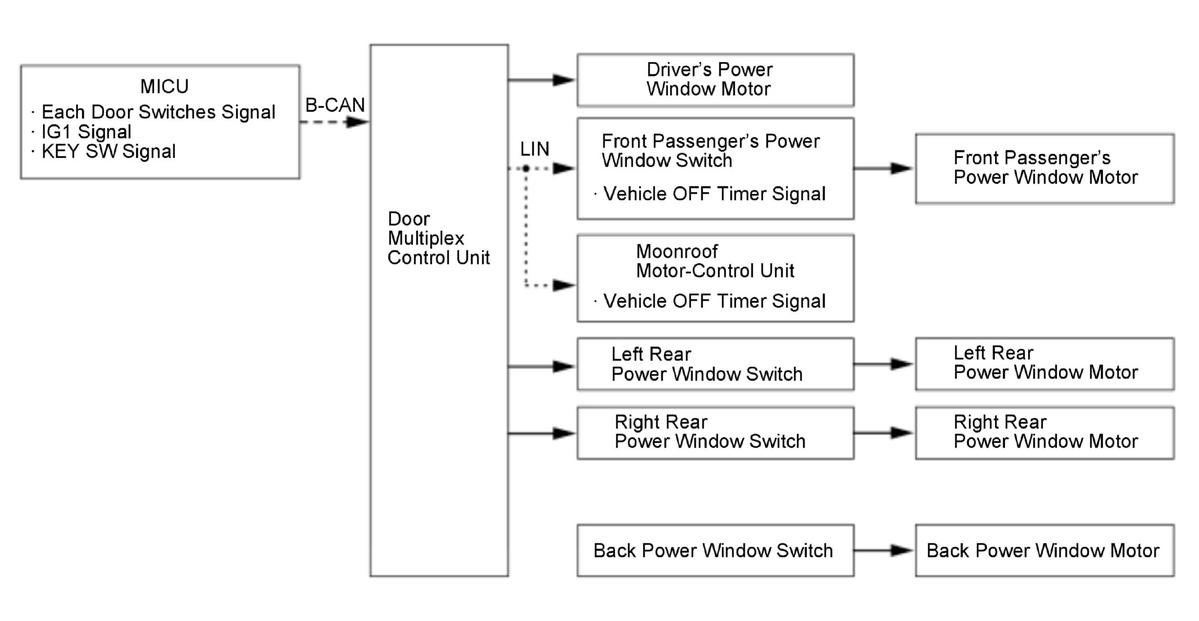

Vehicle OFF Operation

For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches are available.

Courtesy of HONDA, U.S.A., INC.

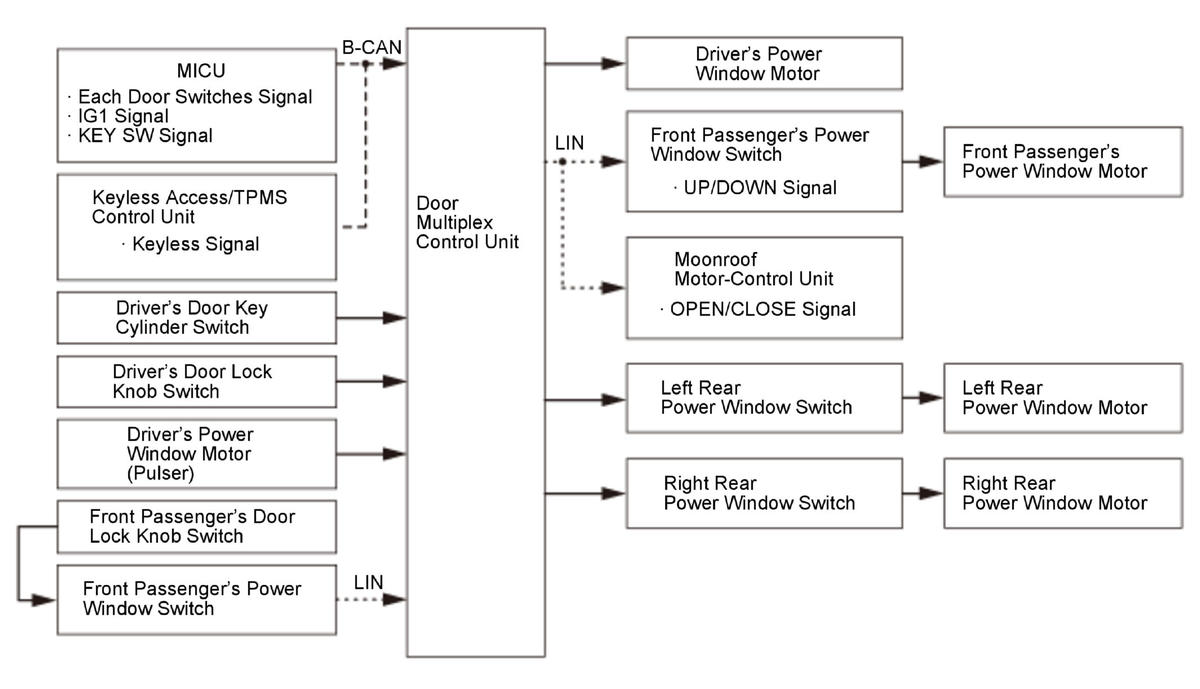

Keyless/Key Cylinder Operation (except back power window)

By turning the key a second time and holding it with the key inserted into the driver's door key cylinder, the windows and moonroof close (or open) (turning the key clockwise to open, turning the key counterclockwise to close). The windows and moonroof stop moving when the key is returned to the neutral position.

By pressing and holding the UNLOCK button of the remote a second time, the windows and moonroof open. The windows and moonroof stop moving when the UNLOCK button is released. The windows do not close with the LOCK button.

Courtesy of HONDA, U.S.A., INC.

Failsafe Function

When a failure occurs in the inputs of the motor pulses and power window switches, the failsafe function stops the control of each function.
