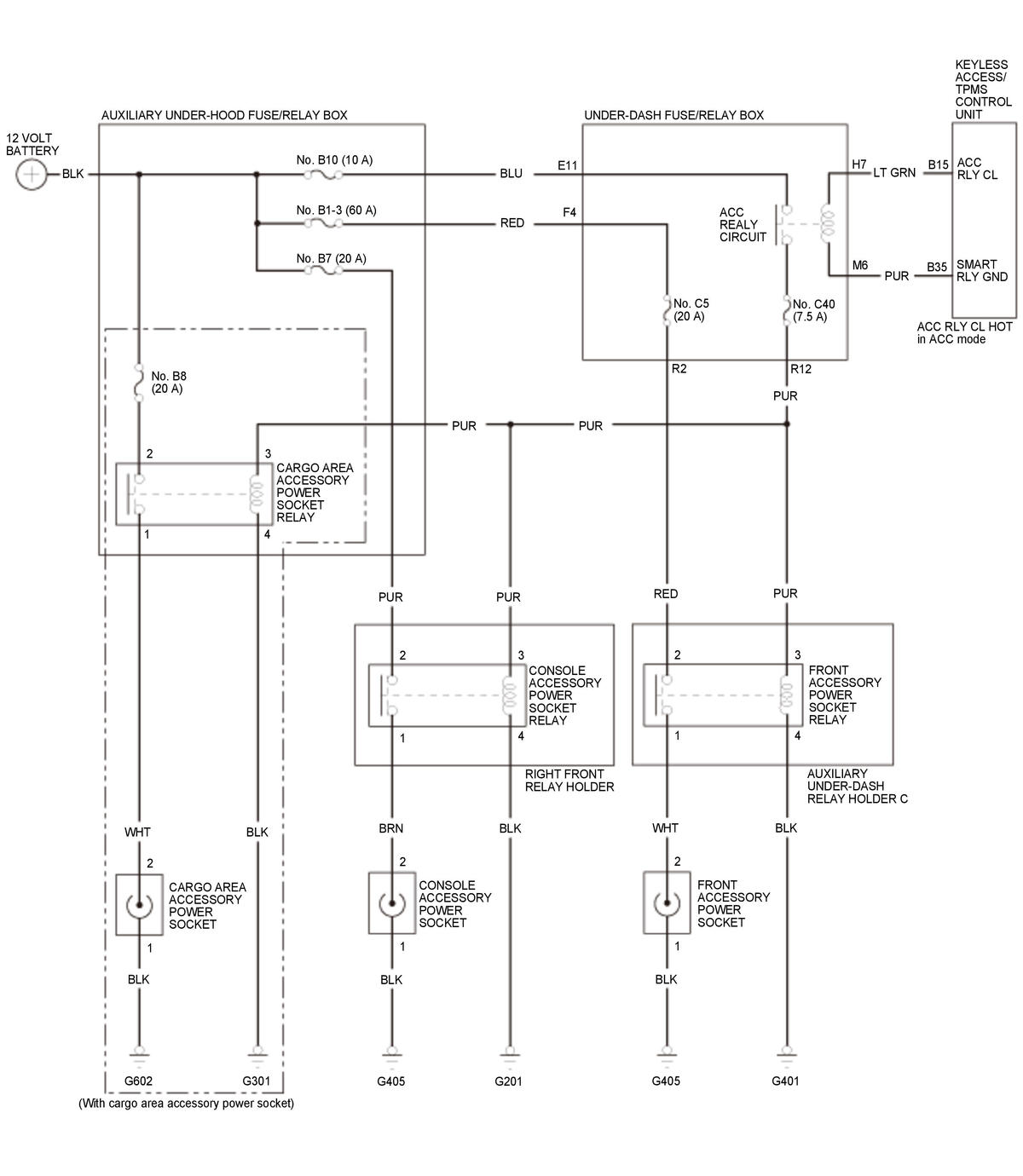

Circuit Diagram
>>
Accessory Power Sockets
Accessory Power Sockets
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
