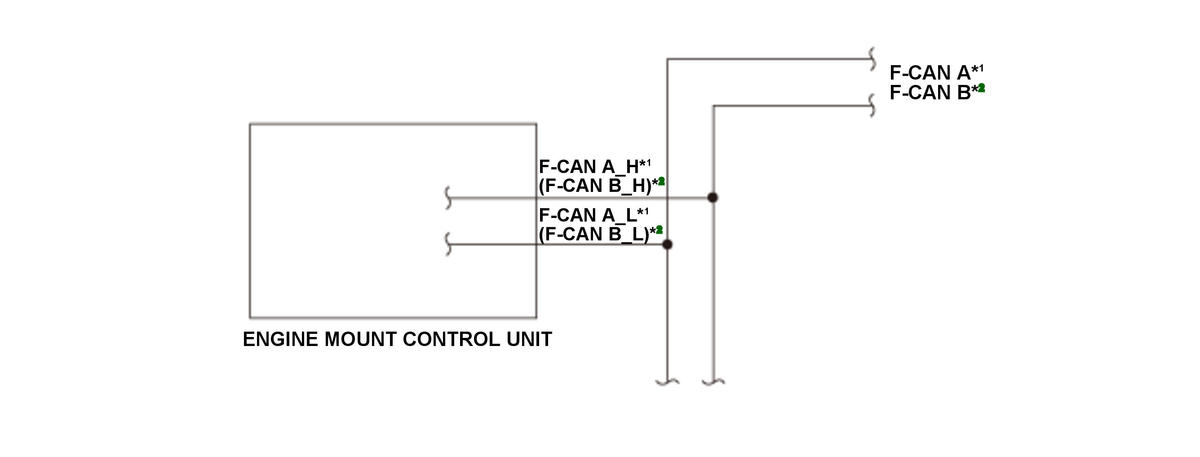

With CAN gateway

Courtesy of HONDA, U.S.A., INC.

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (H line and L line). When the engine mount control unit does not receive the signals via the F-CAN lines for a set time, the engine mount control unit detects a malfunction and stores a DTC.
