Removal and Installation

ANC/Active Sound Control Unit - Remove

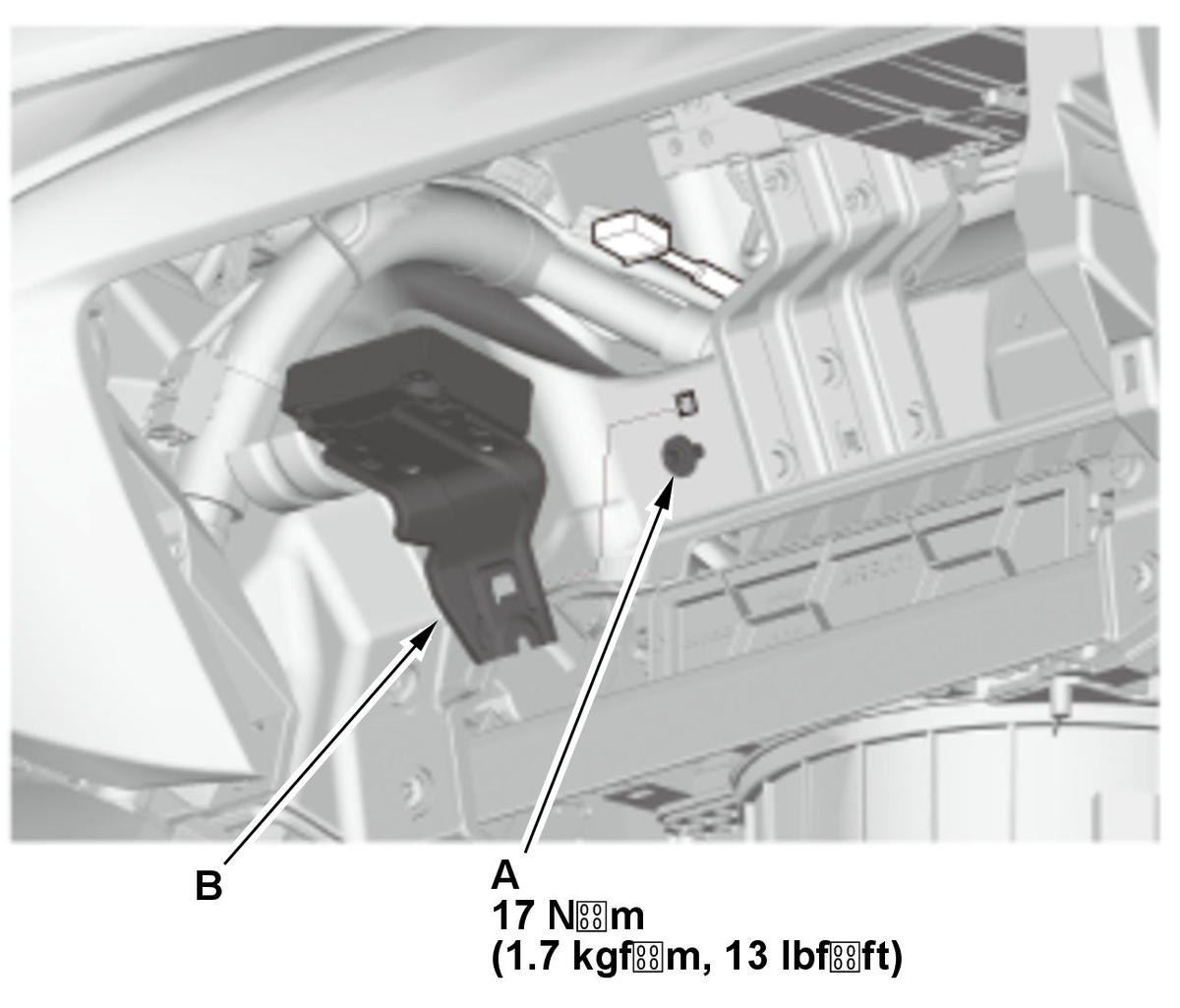

Fig 1: ANC/Active Sound Control Unit - Remove With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Using a TORX E8 bit, loosen the TORX bolt (A), then pull out the ANC/active sound control unit (B).

2. Disconnect the connector, then remove the ANC/active sound control unit.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.
