Security Hood Switch: Test

  1. Hood Latch - Remove
  2. Security Hood Switch - Test
    GHH312472GHH312473Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH312472GHH312473Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

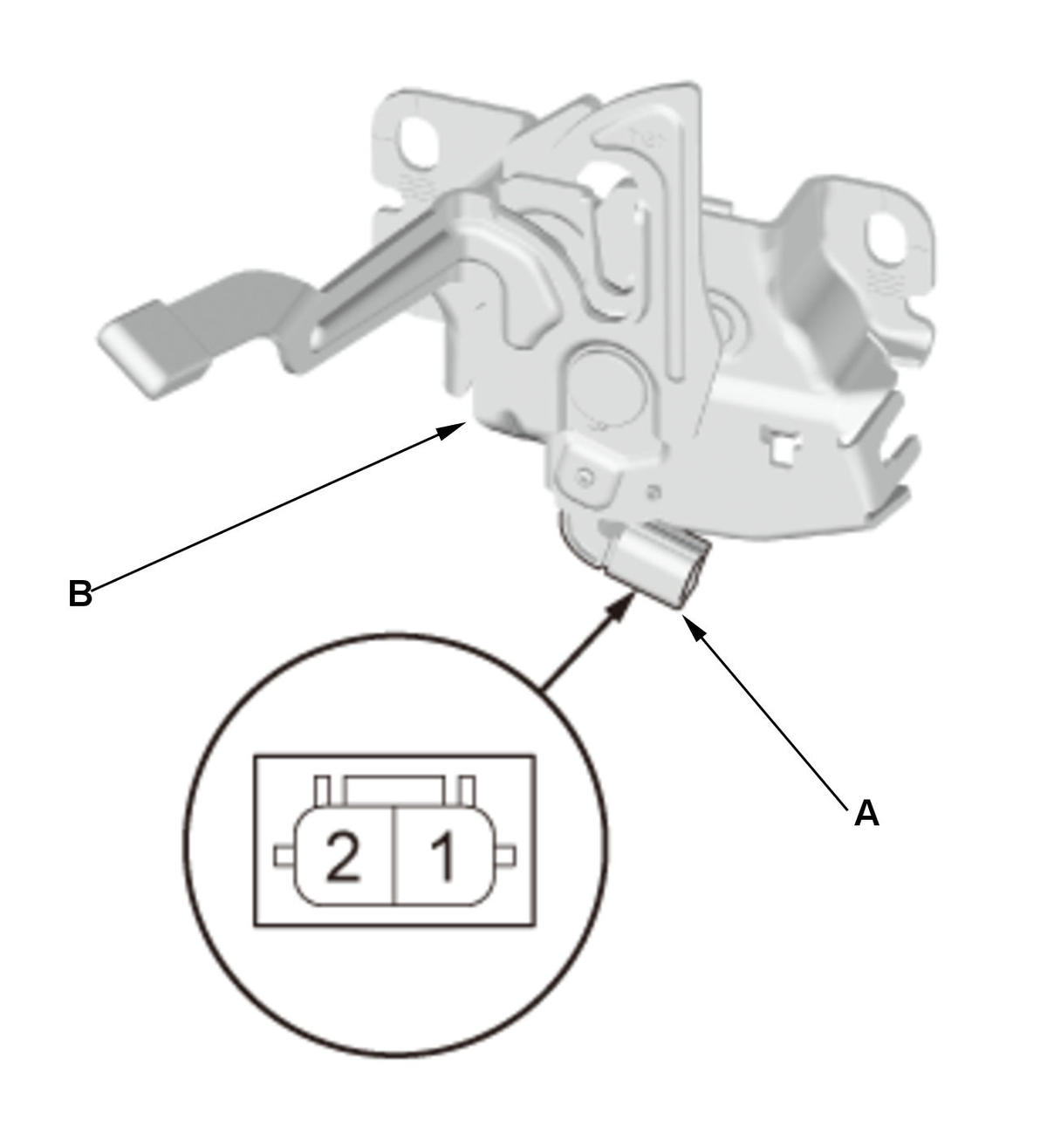

    		 1. Disconnect the connector (A).

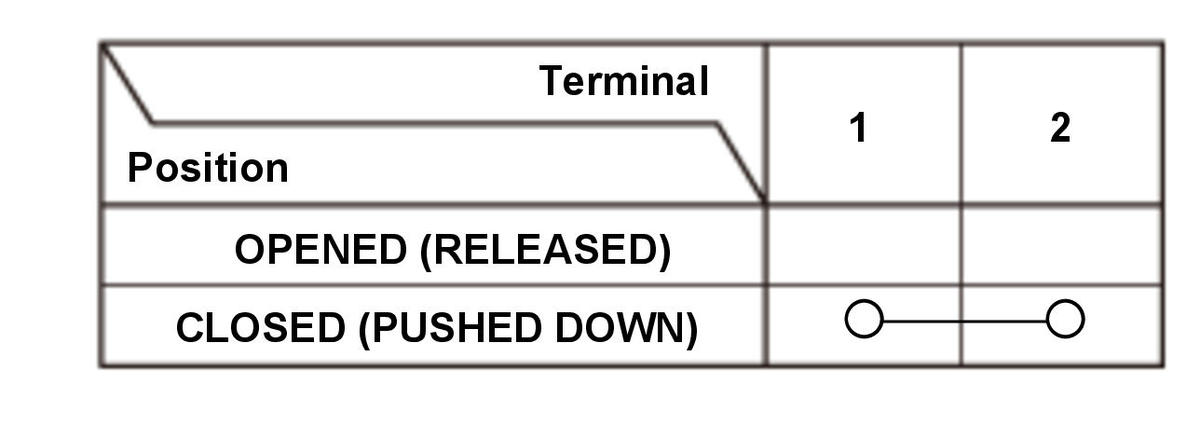

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the security hood switch is faulty; replace the hood latch (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
