Home >> Honda >> 2021 >> Pilot EX-L, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Service, Testing And Troubleshooting >> Component Location Index >> Automatic Transmission Component Location Index (6-Speed A/T)

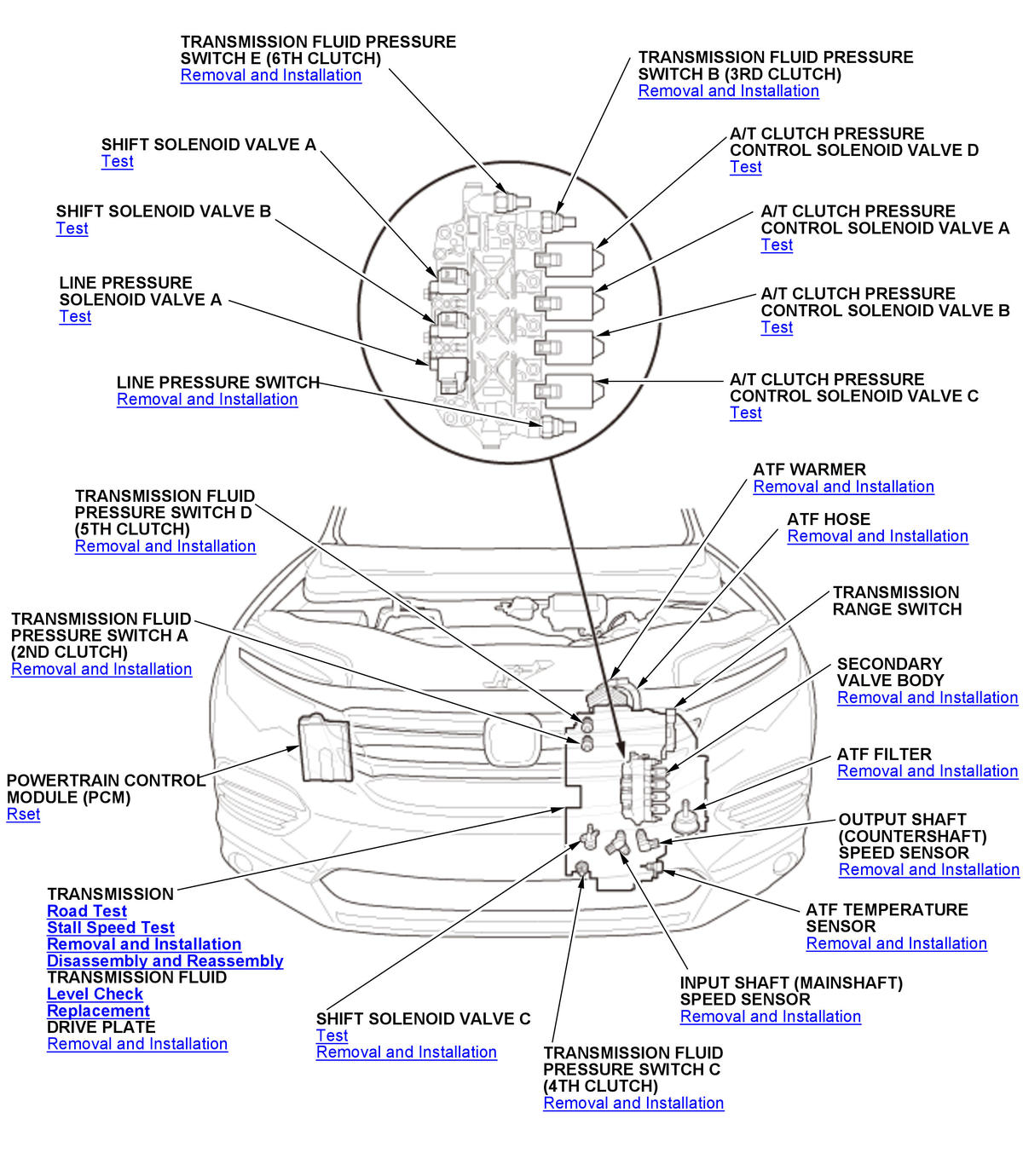

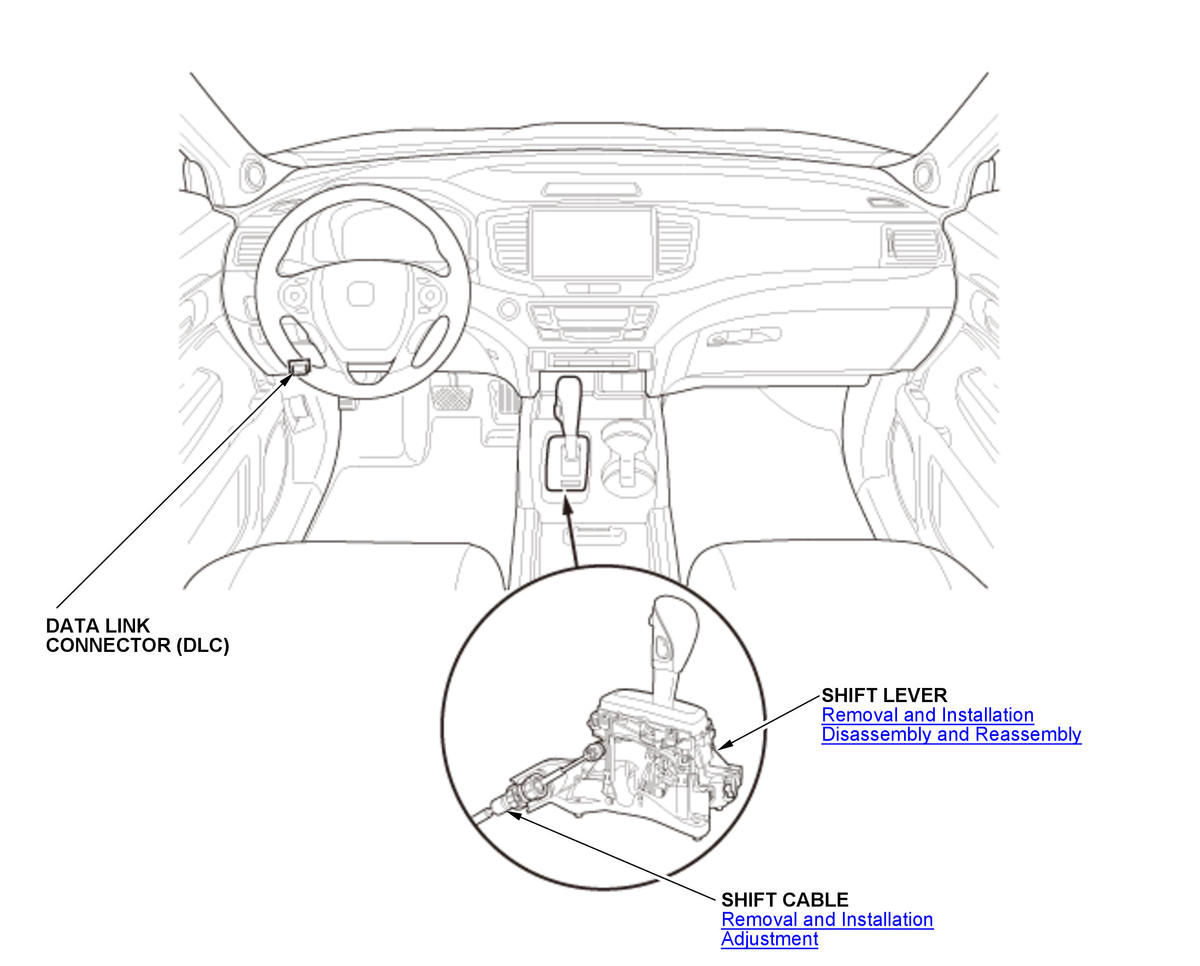

Automatic Transmission Component Location Index (6-Speed A/T)

GHH304688

Courtesy of HONDA, U.S.A., INC.

GHH304689

Courtesy of HONDA, U.S.A., INC.
