Relay Box Locations And Control Unit Locations (2016 2017 2018): Rear

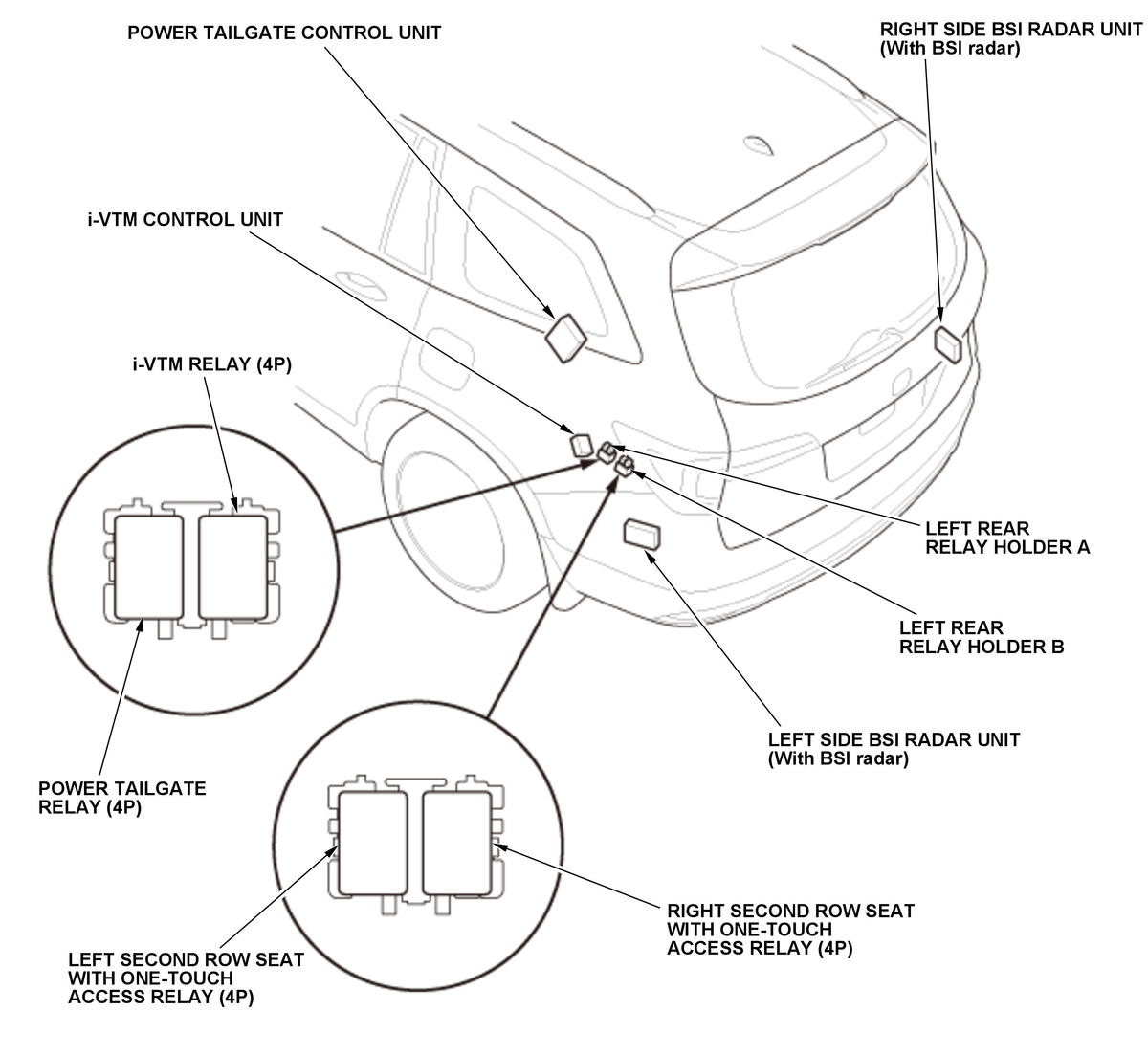

Rear Location

GHH306344

Courtesy of HONDA, U.S.A., INC.
