Removal and Installation

  1. Engine Cover - Remove
  2. Engine Coolant - Drain - Refer to:

    Coolant Replacement (2016 2017 2018)

    Coolant Replacement (2019 2020 2021)

  3. ECT Sensor 1 - Remove

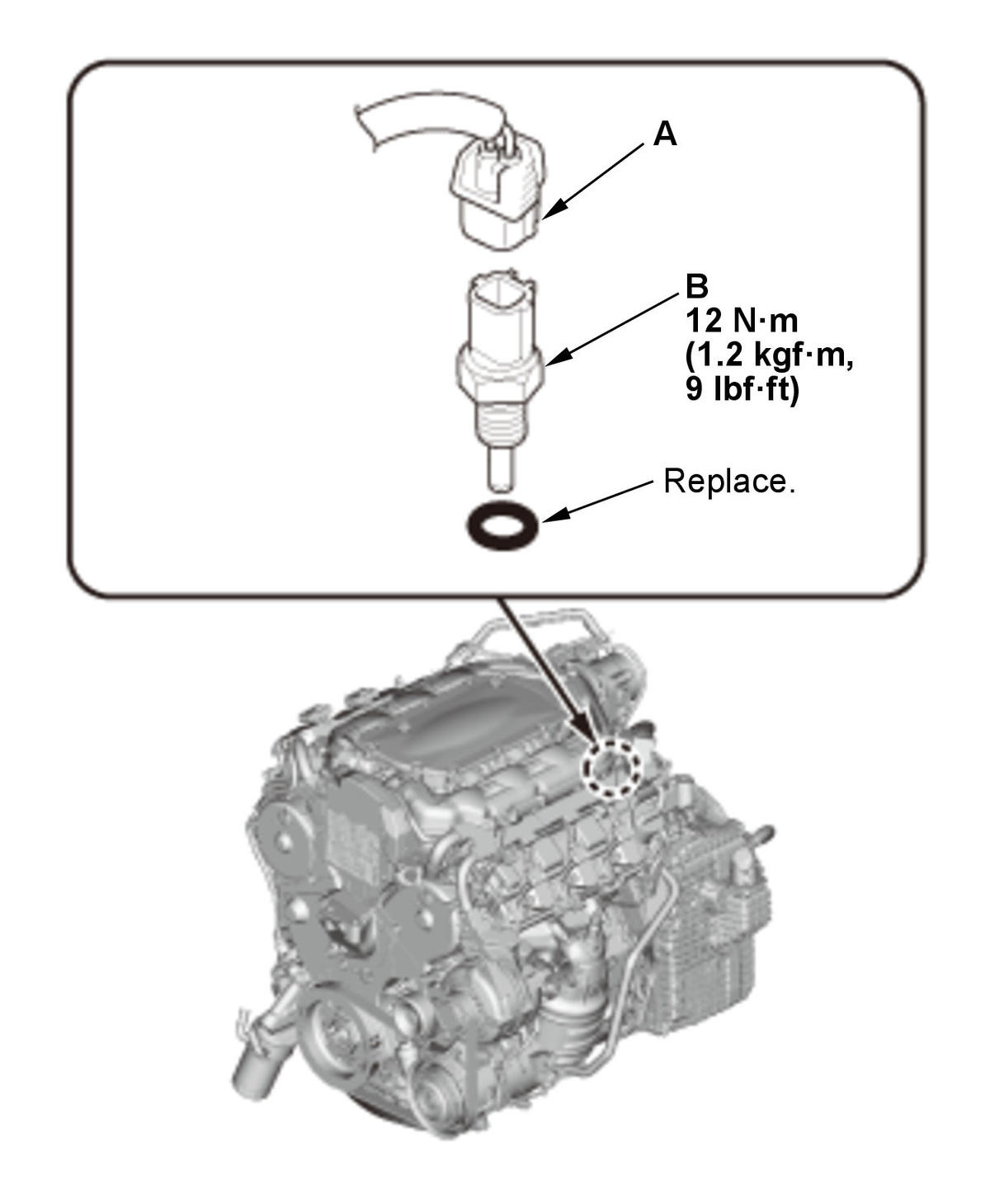

    Fig 1: ECT Sensor 1 With Torque Specifications
    GHH308471Courtesy of HONDA, U.S.A., INC.
    1. Disconnect the connector (A).

    2. Remove the ECT sensor 1 (B).
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new O-ring.
