Rocker Arm Oil Pressure Sensor: Installation

Rocker Arm Oil Pressure Sensor - Install

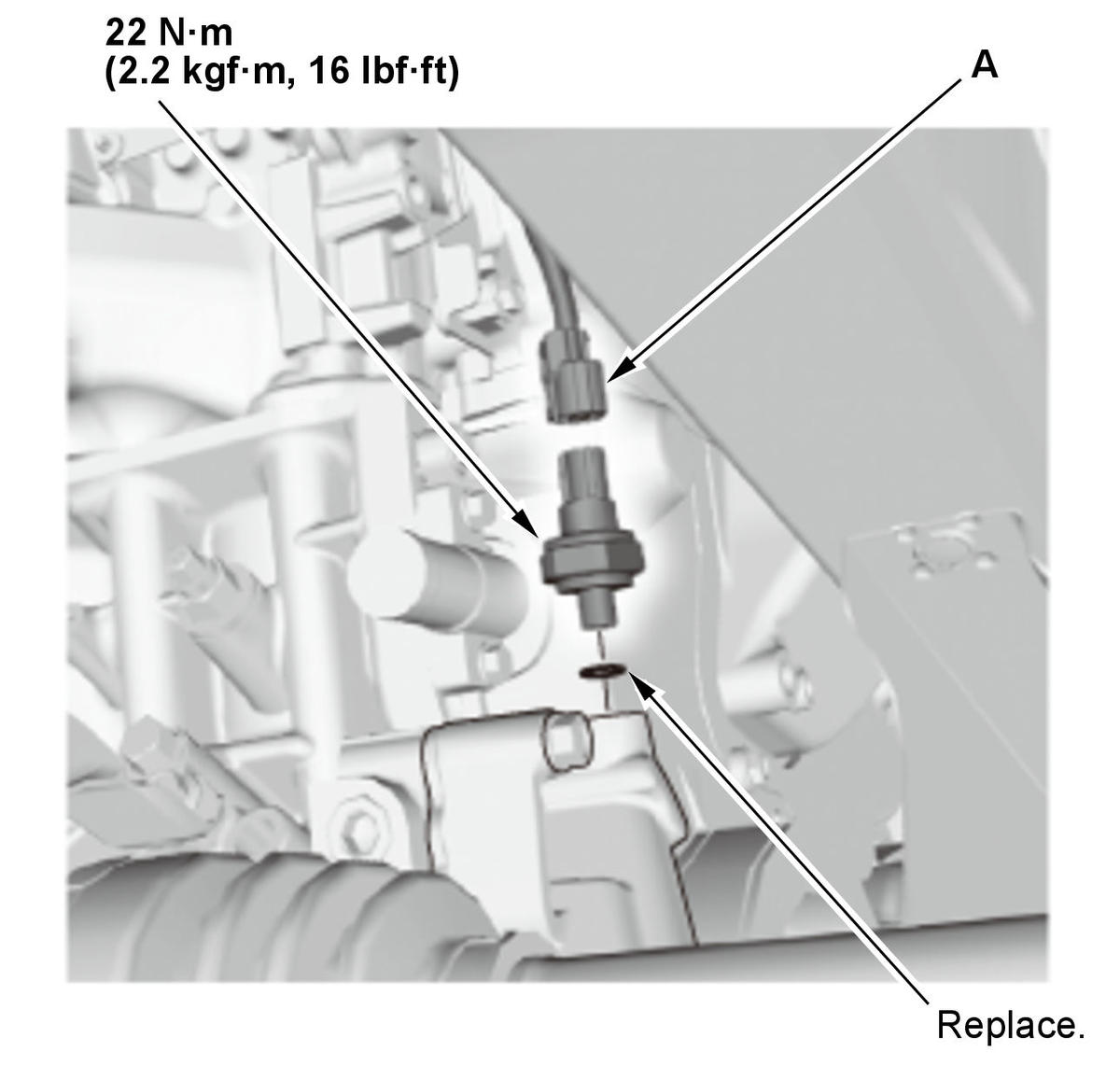

Fig 1: Rocker Arm Oil Pressure Sensor With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Apply liquid gasket (P/N 08718-0003, 08718-0004, or 08718-0009) to the rocker arm oil pressure sensor threads. Install the component within 5 minutes of applying the liquid gasket.

NOTE:

Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the rocker arm oil pressure sensor.
If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

2. Install the rocker arm oil pressure sensor with a new O-ring.

3. Connect the connector (A).
