Automatic Transmission Component Location Index

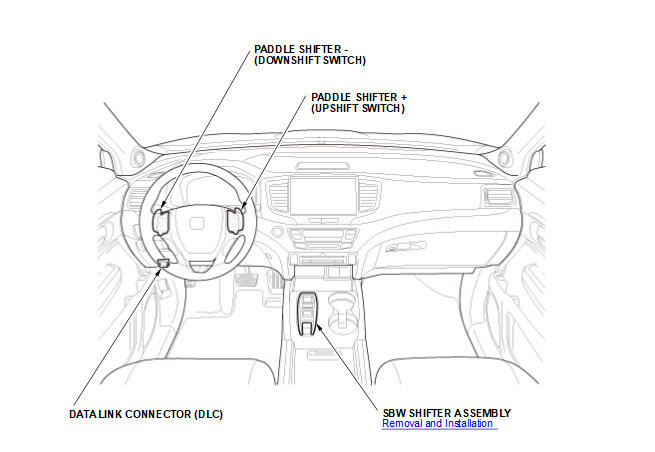

GHH367183

Courtesy of HONDA, U.S.A., INC.

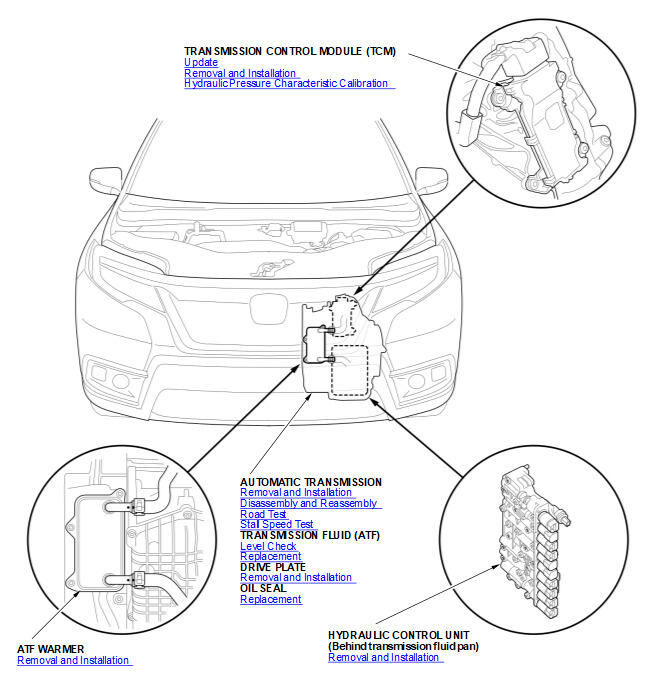

GHH367184

Courtesy of HONDA, U.S.A., INC.

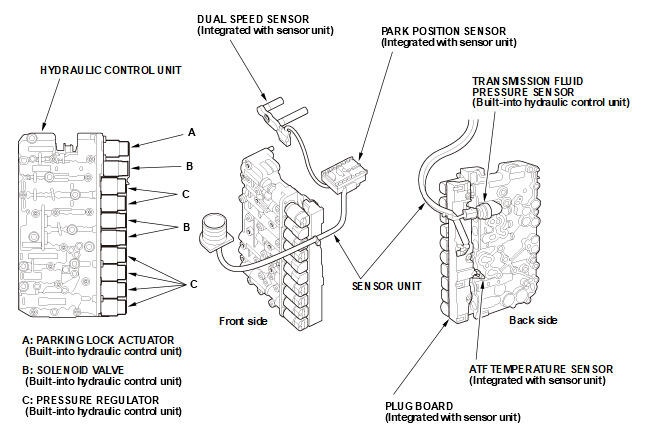

GHH367185

Courtesy of HONDA, U.S.A., INC.
