EPS Motor/Control Unit Removal and Installation: Removal

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.

NOTE:  Where icon is shown, further information shown below.

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes and precautions
	Replace

1. 12 Volt Battery Terminal - Disconnect
2. Vehicle - Lift
3. Engine Undercover - Remove
4. Lower Stabilizer Link Ball Joint - Disconnect (Both Sides)

   1. Disconnect the lower stabilizer link ball joint on both sides. NOTE: Push up the stabilizer bar to secure a work space for remove the EPS motor/control unit.

5. Connector (EPS Motor) - Disconnect

   Courtesy of HONDA, U.S.A., INC.

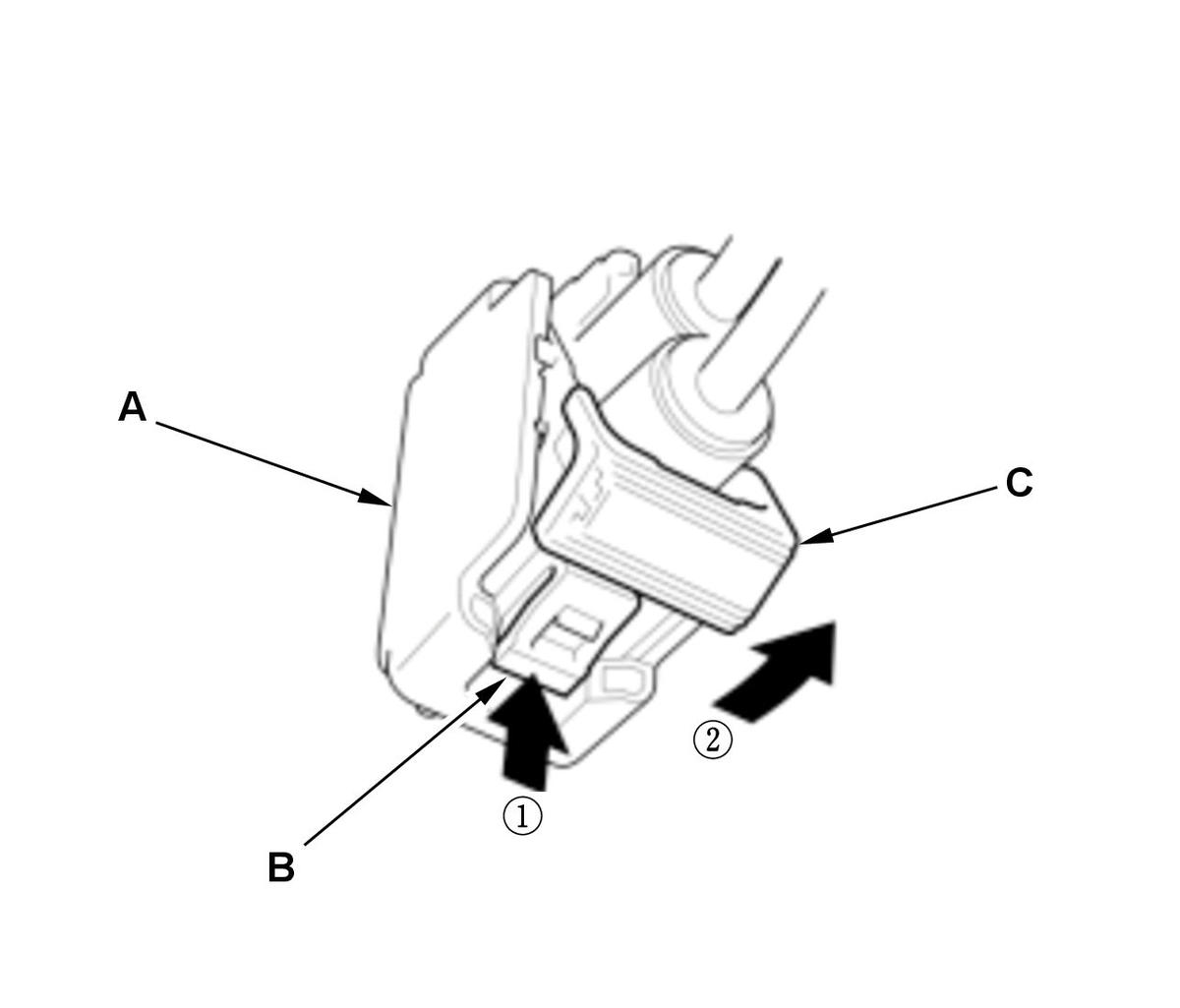

   1. Disconnect the connector (A) by pushing the lock (B) and the lever (C) up in the numbered sequence shown.

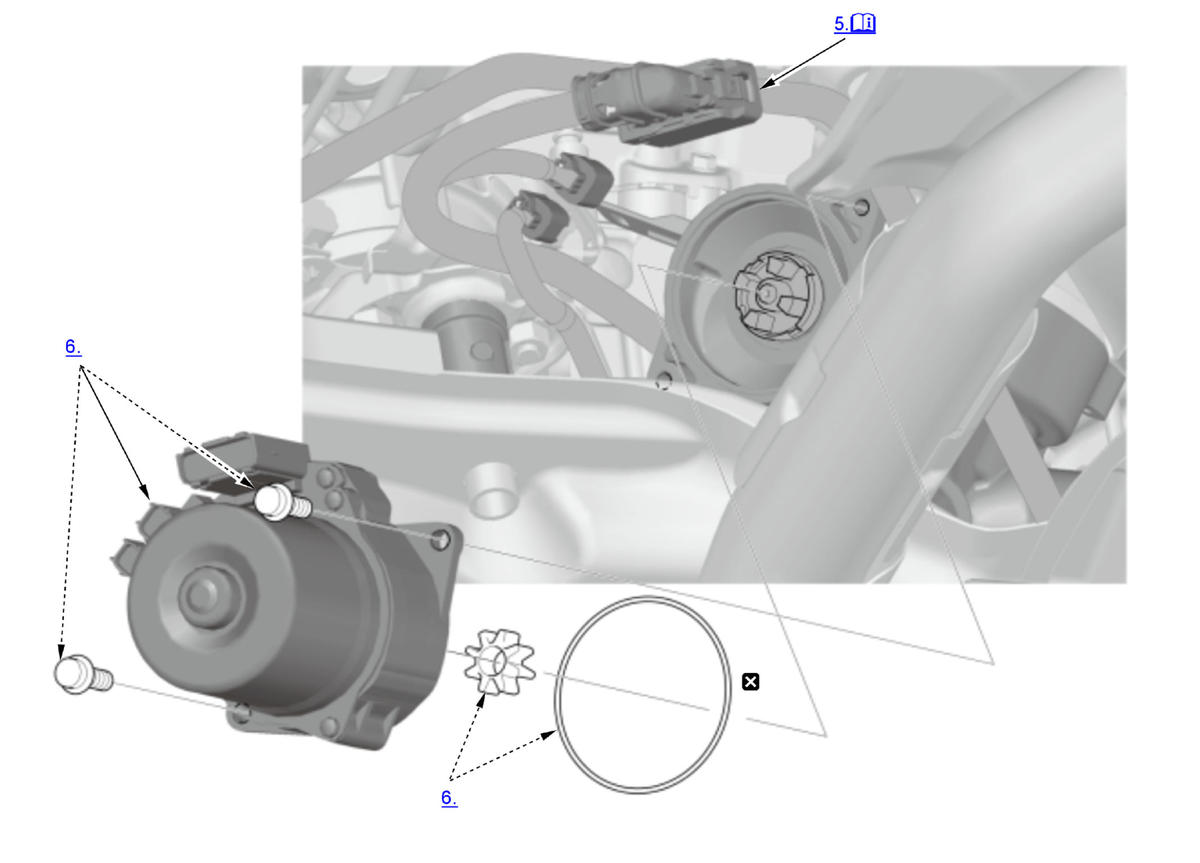

6. EPS Motor/Control Unit - Remove
