Engine Start/Stop Switch Removal, Installation, and Test: Test

Engine Start/Stop Switch - Test

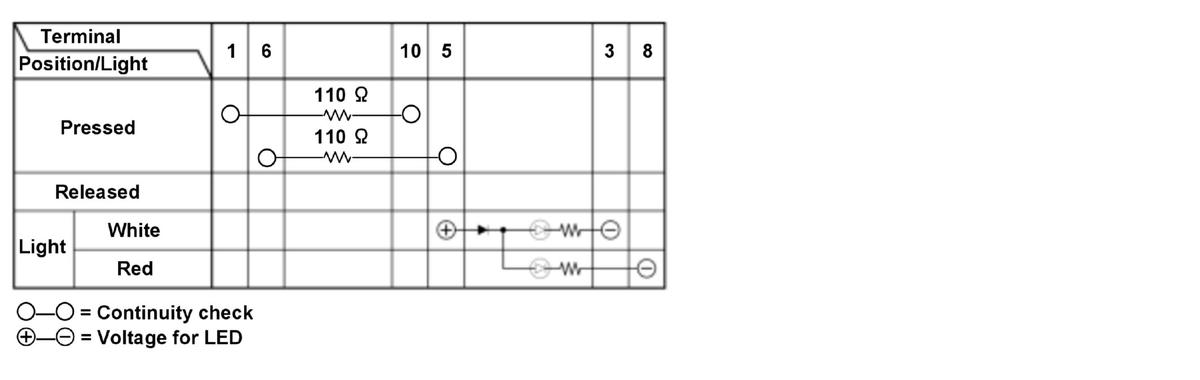

1. Check the switch according to the table.
NOTE:
- When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

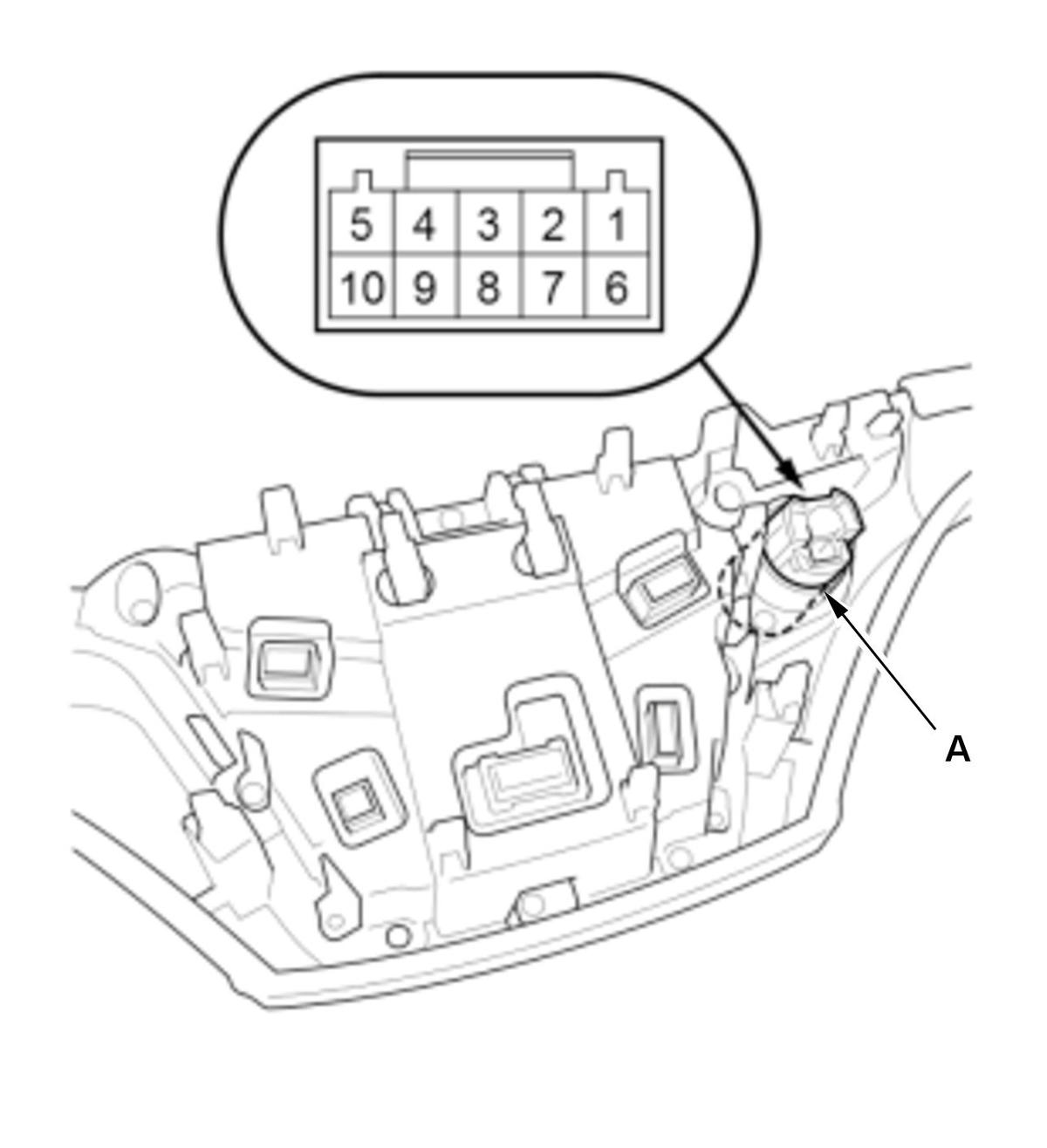

2. If the result is not as specified, replace the engine start/stop switch (A).

LF Antenna Test

3. Check for continuity between the terminals according to the table. There should be continuity.

Courtesy of HONDA, U.S.A., INC.

4. If the continuity is not as specified, replace the engine start/stop switch.
