Rear Power Window Switch Connector for Inputs and Outputs

Connector Index
Left Rear Power Window Switch 10P Connector
Right Rear Power Window Switch 10P Connector

Left Rear Power Window Switch 10P Connector (female terminals)

GHH448881

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W RR L MTR SGND	Ground for left rear power window motor pulser	Less than 0.2 V at all times
2	LIN(P/W)	Communication line	---
3	P/W RR L MTR VCC	Outputs P/W RR L MTR VCC signal	With left rear power window control unit is wakeup mode and left rear power window motor operation: about battery voltage If none of the above conditions are met: less than 0.2 V
4	P/W RR L MTR PLSB	Detects P/W RR L MTR PLSB signal	---
5	P/W RR L MTR PLSA	Detects P/W RR L MTR PLSA signal	---
6	GND	Ground for left rear power window switch	Less than 0.2 V at all times
7	Not used	---	---
8	+B P/W RR L	Power source for left rear power window switch	About battery voltage at all times
9	P/W RR L MTR DOWN	Drives left rear power window motor	With left rear power window motor DOWN operation: about battery voltage If none of the above conditions are met: less than 0.2 V
10	P/W RR L MTR UP	Drives left rear power window motor	With left rear power window motor UP operation: about battery voltage If none of the above conditions are met: less than 0.2 V

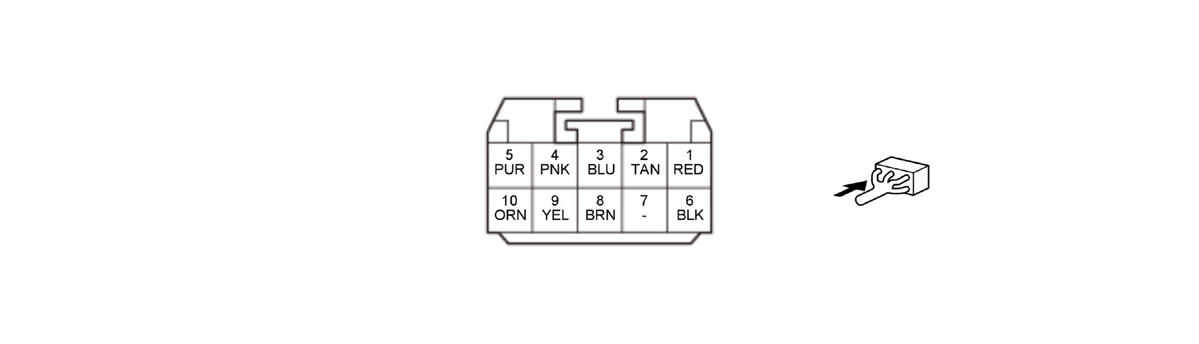

Right Rear Power Window Switch 10P Connector (female terminals)

GHH448882

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	P/W RR R MTR SGND	Ground for right rear power window motor pulser	Less than 0.2 V at all times

Terminal number	Terminal name	Description	Signal
2	LIN(P/W)	Communication line	---
3	P/W RR R MTR VCC	Outputs P/W RR R MTR VCC signal	With right rear power window control unit is wakeup mode and right rear power window motor operation: about battery voltage If none of the above conditions are met: less than 0.2 V
4	P/W RR R MTR PLSB	Detects P/W RR R MTR PLSB signal	---
5	P/W RR R MTR PLSA	Detects P/W RR R MTR PLSA signal	---
6	GND	Ground for right rear power window switch	Less than 0.2 V at all times
7	Not used	---	---
8	+B P/W RR R	Power source for right rear power window switch	About battery voltage at all times
9	P/W RR R MTR DOWN	Drives right rear power window motor	With right rear power window motor DOWN operation: about battery voltage If none of the above conditions are met: less than 0.2 V
10	P/W RR R MTR UP	Drives right rear power window motor	With right rear power window motor UP operation: about battery voltage If none of the above conditions are met: less than 0.2 V
