Gear Unit Control System Component Location Index

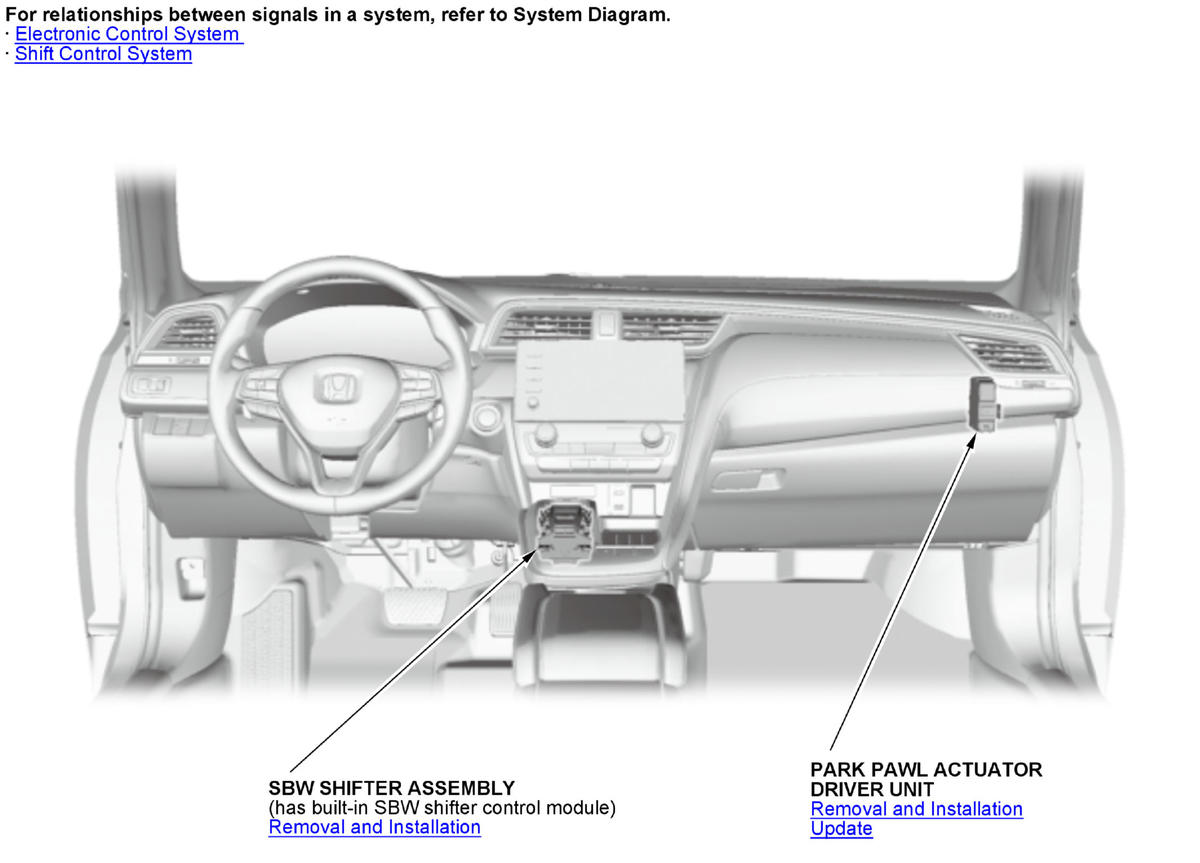

GHH382445

Courtesy of HONDA, U.S.A., INC.

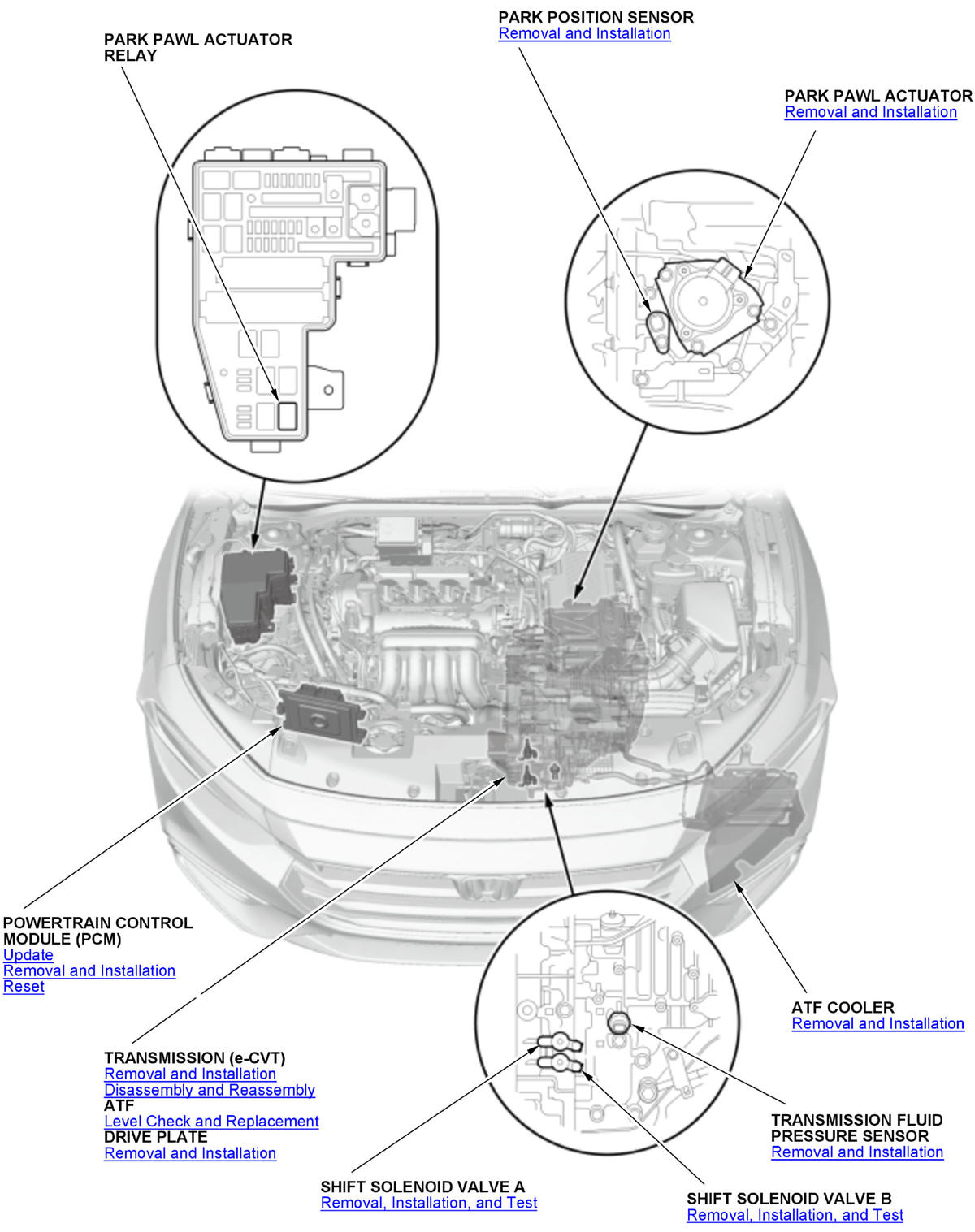

GHH382446

Courtesy of HONDA, U.S.A., INC.
