Removal and Installation

  1. Air Cleaner Element - Remove

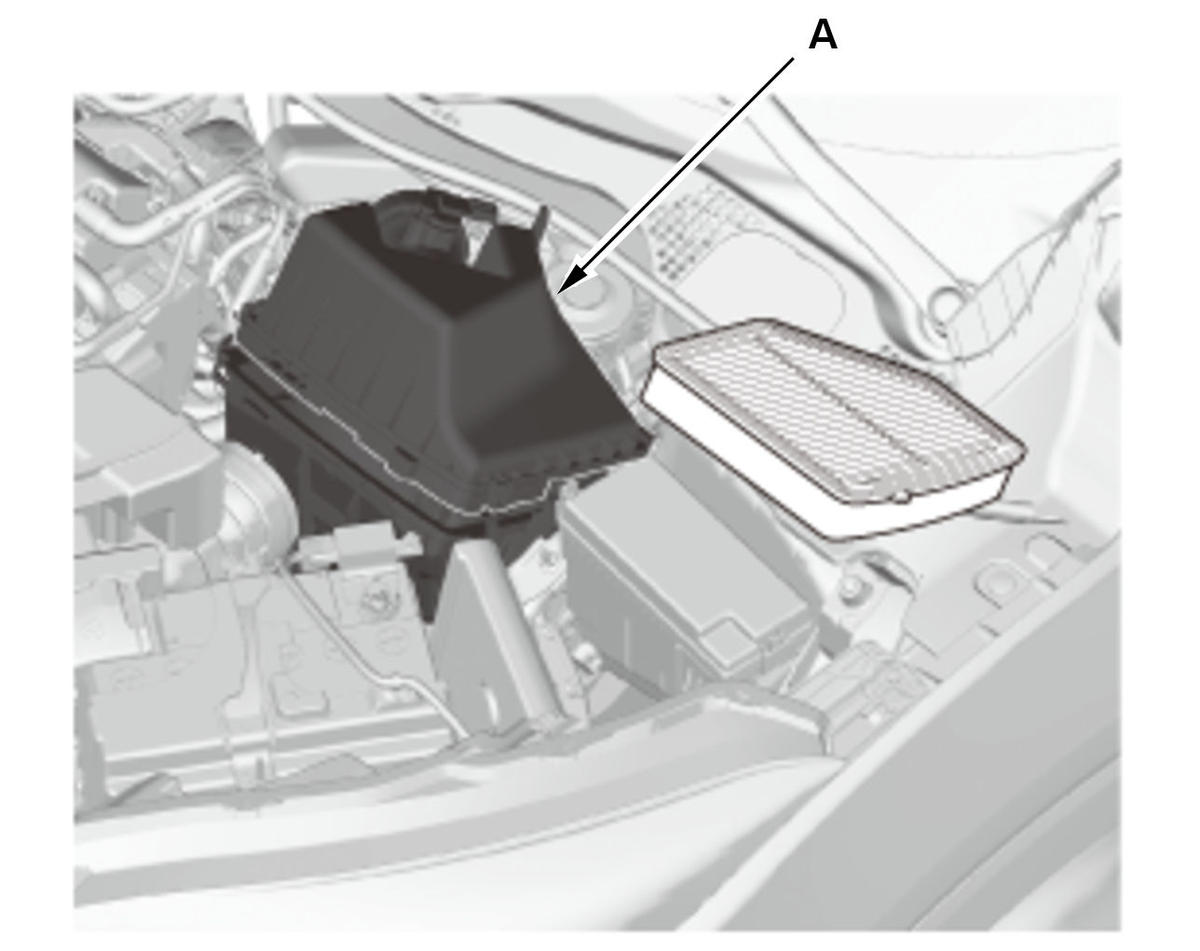

    GHH435284Courtesy of HONDA, U.S.A., INC.
    		 1. Open the air cleaner housing cover (A).

    2. Remove the air cleaner element.
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.NOTE:  If the idle speed fluctuates, do the idle speed inspection .
  3. Maintenance Minder - Reset (With Maintenance Minder System)
    1. If the Maintenance Minder required to replace the air cleaner element, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder").
