Removal and Installation

  1. IMT Actuator - Remove
  2. IMT Valve - Remove

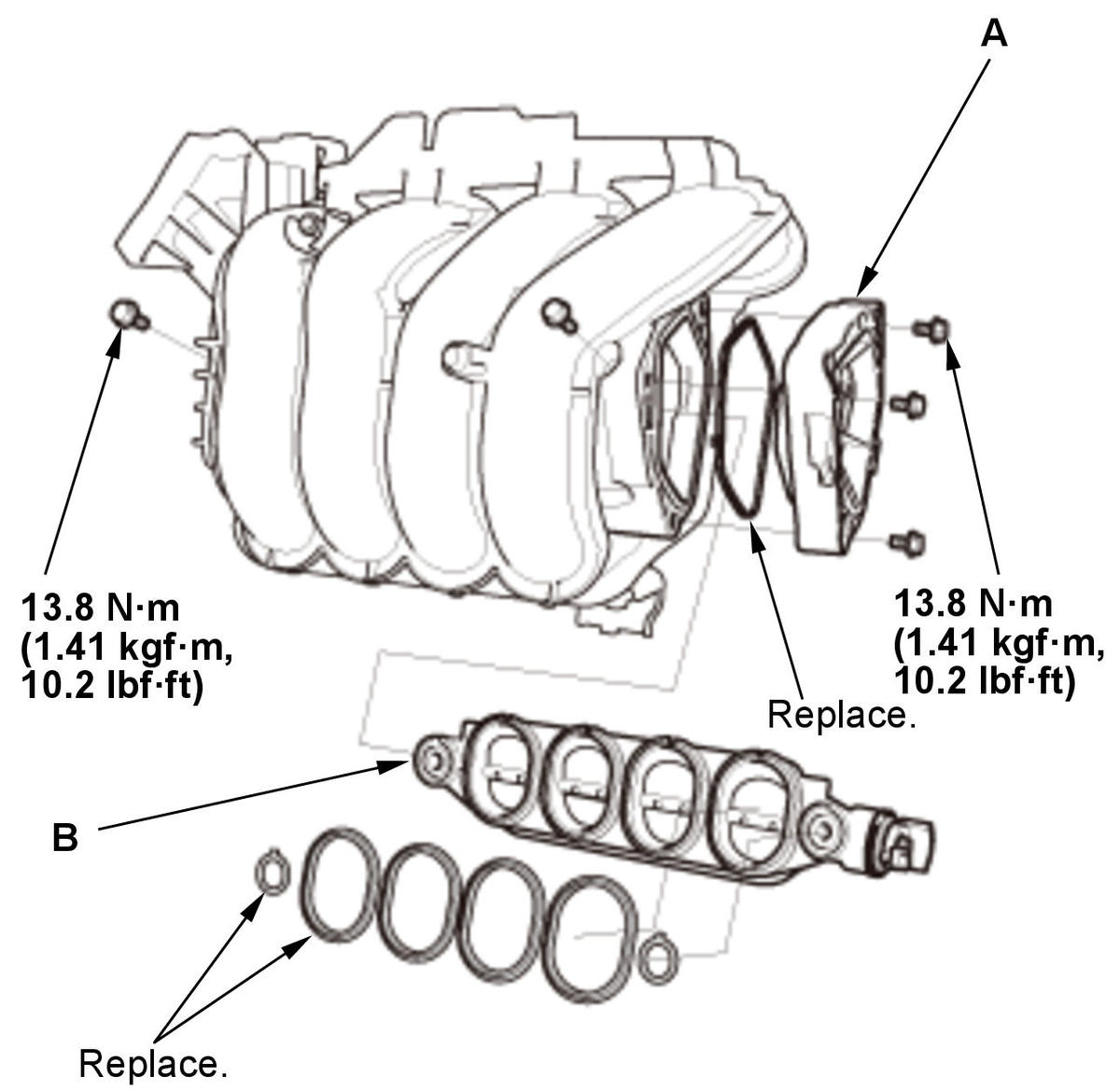

    Fig 1: IMT Cover / Valve With Torque Specifications
    GHH435398Courtesy of HONDA, U.S.A., INC.
      1. Remove the IMT cover (A).

    2. Remove the IMT valve (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new O-rings.
