Removal and Installation

  1. Crankshaft - Remove
  2. Oil Jet - Remove

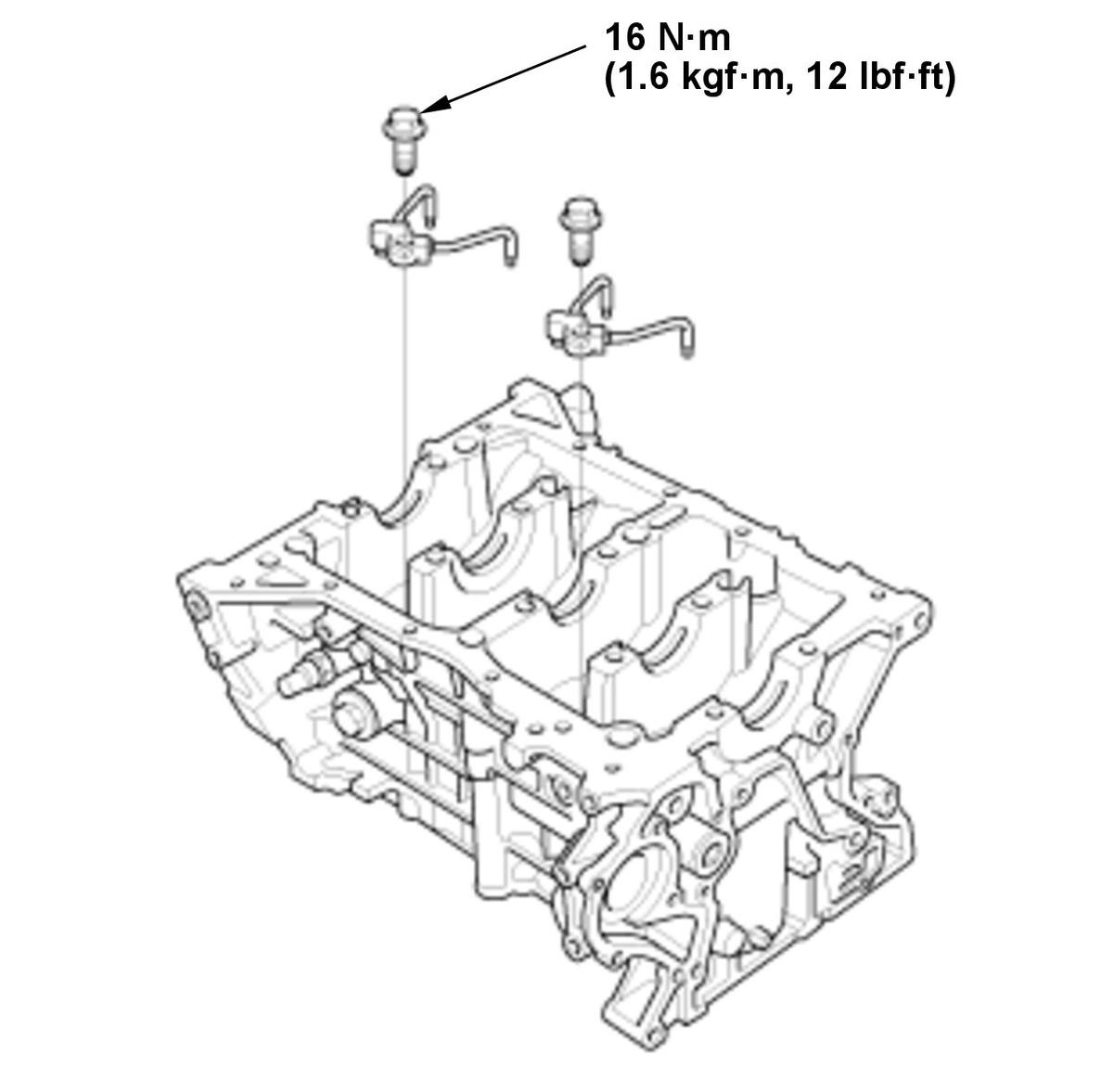

    Fig 1: Oil Jet With Torque Specifications
    GHH435370Courtesy of HONDA, U.S.A., INC.


    NOTE:  Check the oil jets and the oil jet bolts for damaged or clogged. If it is damaged or clogged, replace the oil jet (s) and the oil jet bolt (s).

  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
