Cam Chain Auto-Tensioner Removal and Installation: Removal

  1. Right Front Wheel - Remove
  2. Right Front Splash Shield - Remove
  3. Drive Belt - Remove
  4. Cain Case Cover - Remove

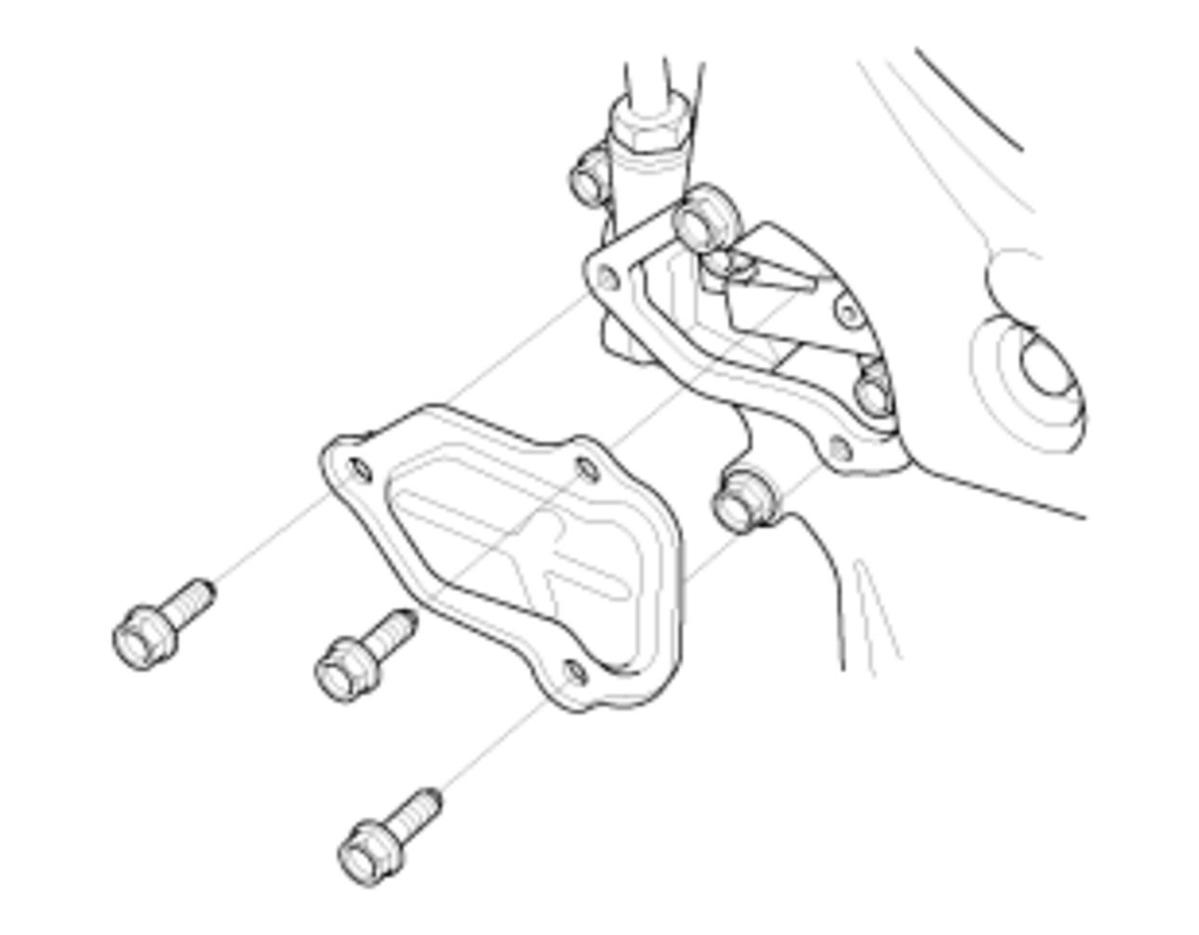

    GHH435315Courtesy of HONDA, U.S.A., INC.
  5. Cam Chain Auto-Tensioner - Remove

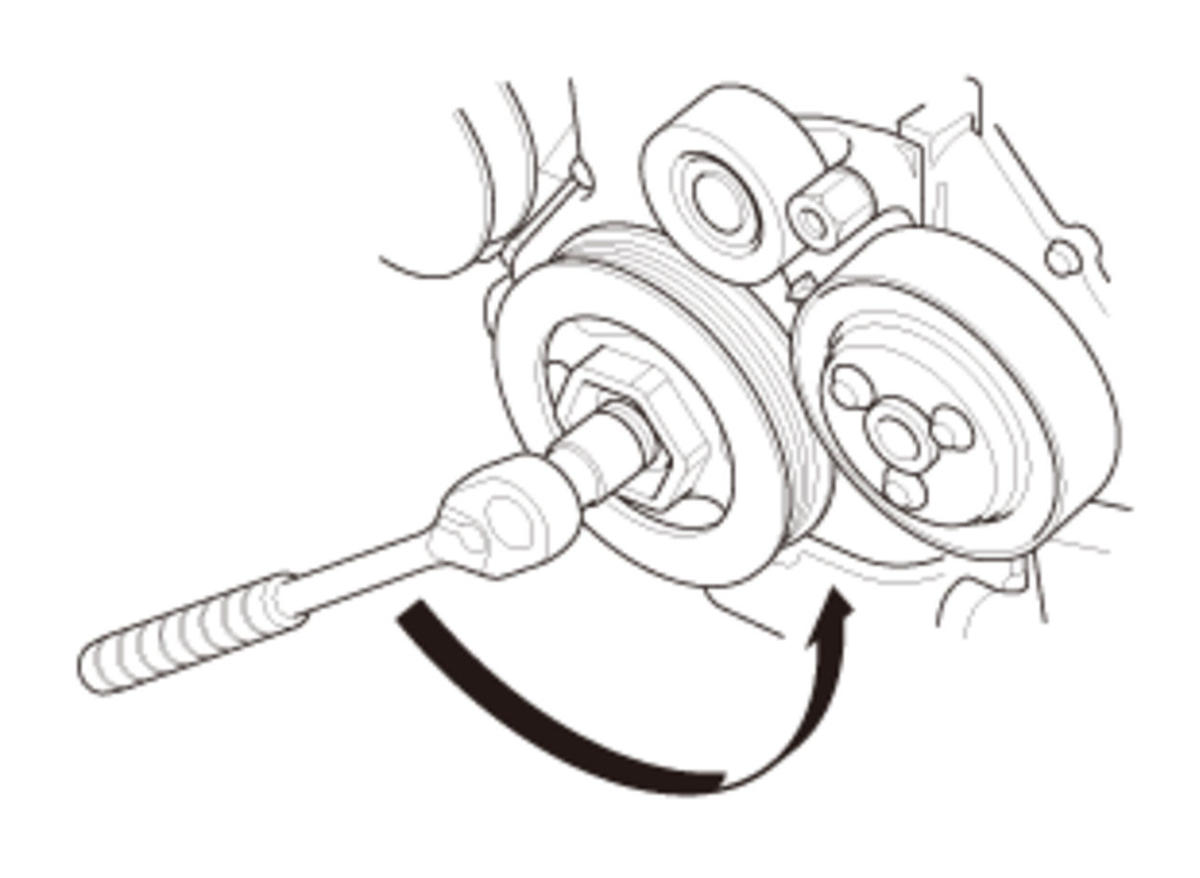

    GHH435316Courtesy of HONDA, U.S.A., INC.
    		 1. Turn the crankshaft counterclockwise to compress the cam chain auto-tensioner.

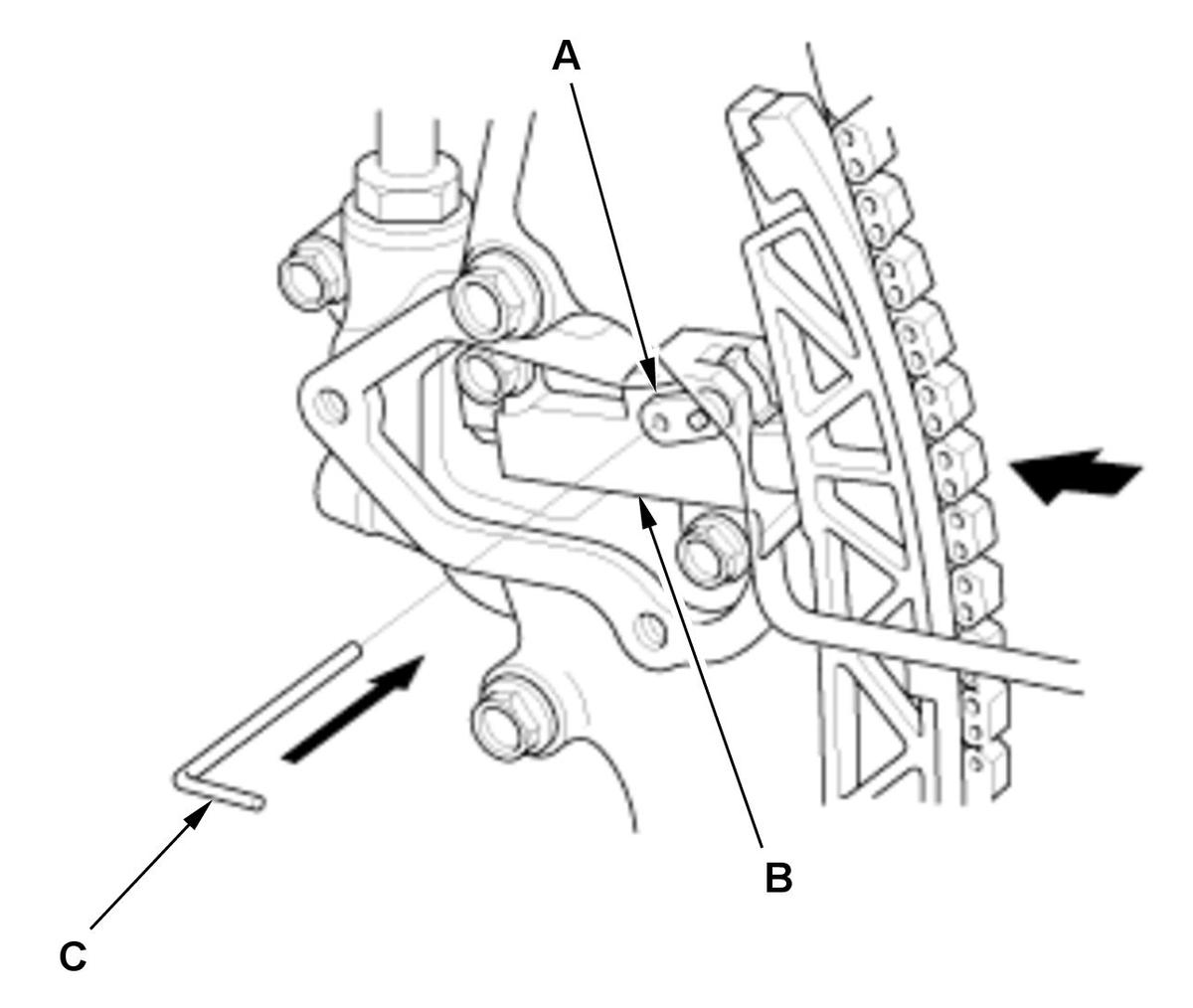

    GHH435317Courtesy of HONDA, U.S.A., INC.
    		 2. Rotate the crankshaft counterclockwise to align the holes on the lock (A) and the cam chain auto-tensioner (B), then insert a 1.0 mm (1/32 in) diameter pin (C) into the holes. Turn the crankshaft clockwise about 90 deg. to secure the pin.NOTE:  If the holes in the lock and the cam chain auto-tensioner do not align, continue to rotating the crankshaft counterclockwise until the holes align, then install the pin.

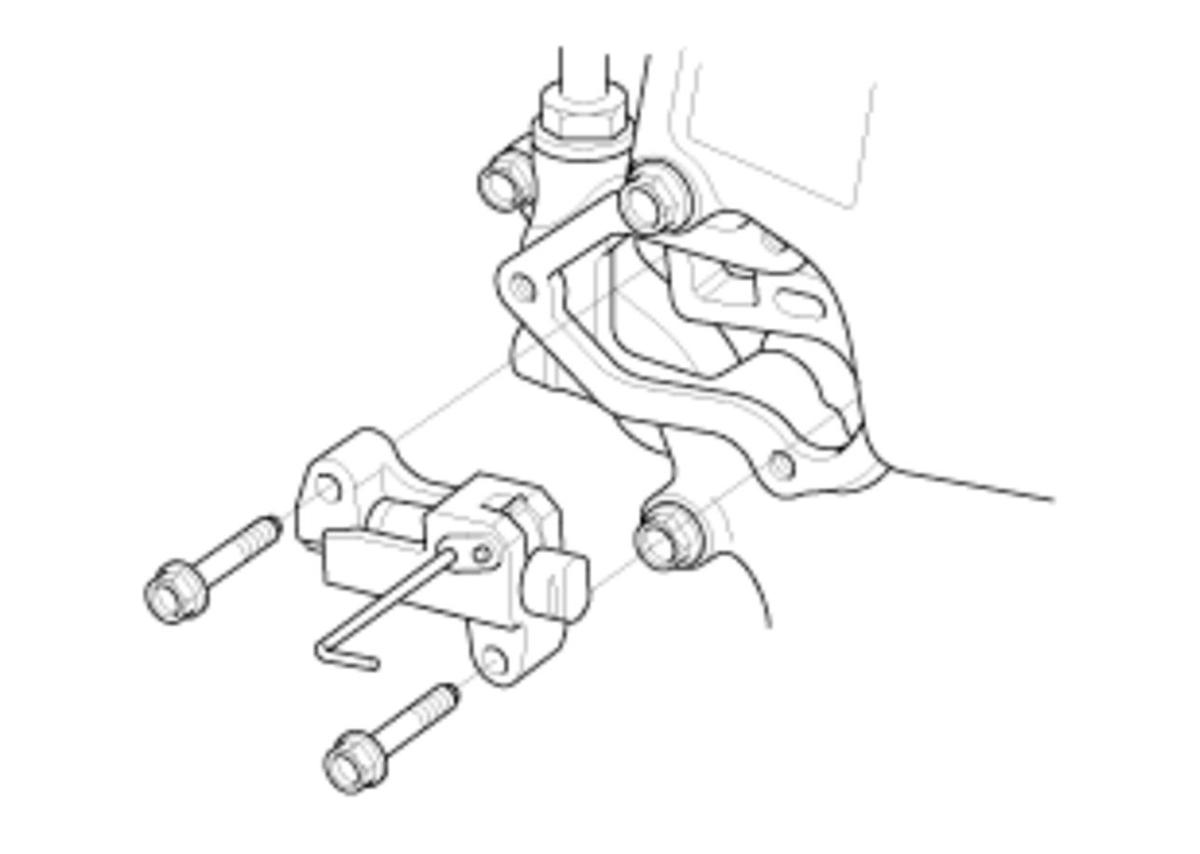

    GHH435318Courtesy of HONDA, U.S.A., INC.
    		 3. Remove the cam chain auto-tensioner.
