Engine Lubrication System Component Location Index

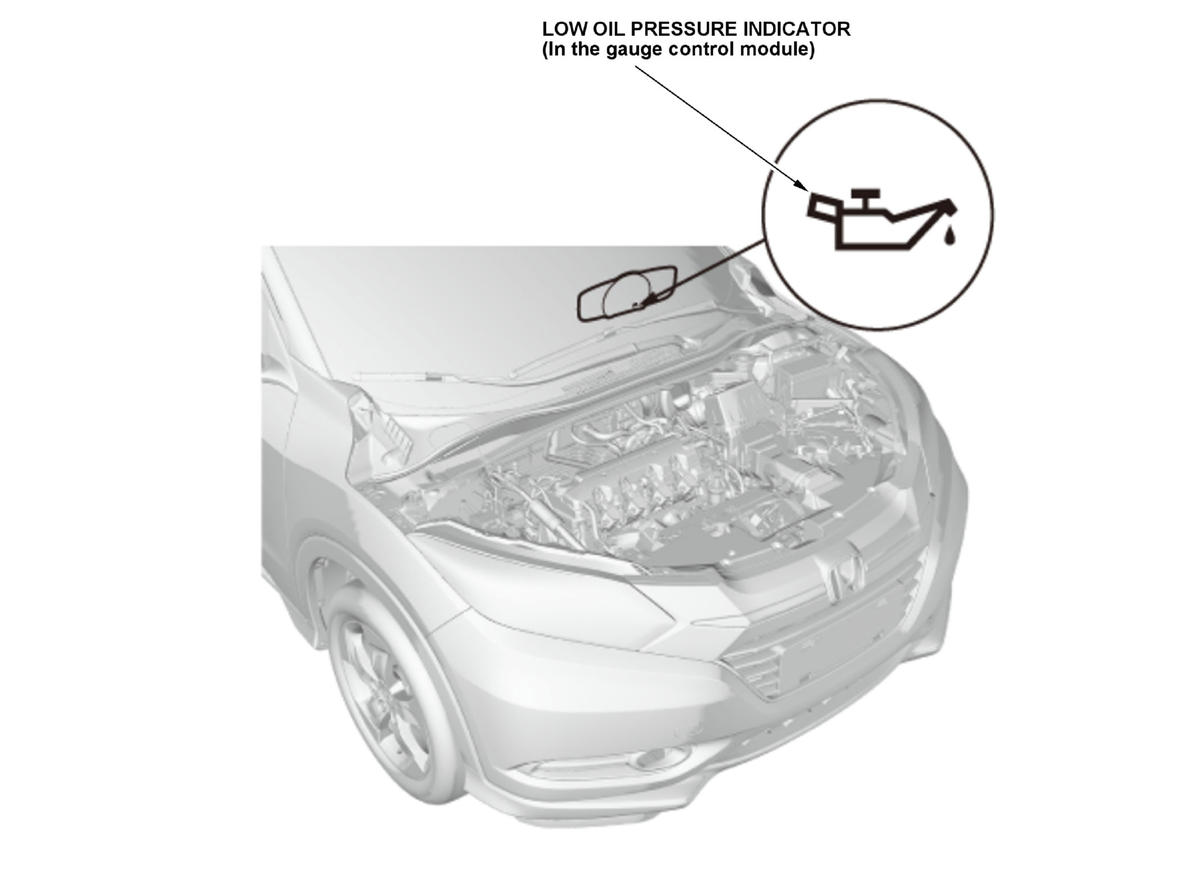

GHH437065

Courtesy of HONDA, U.S.A., INC.

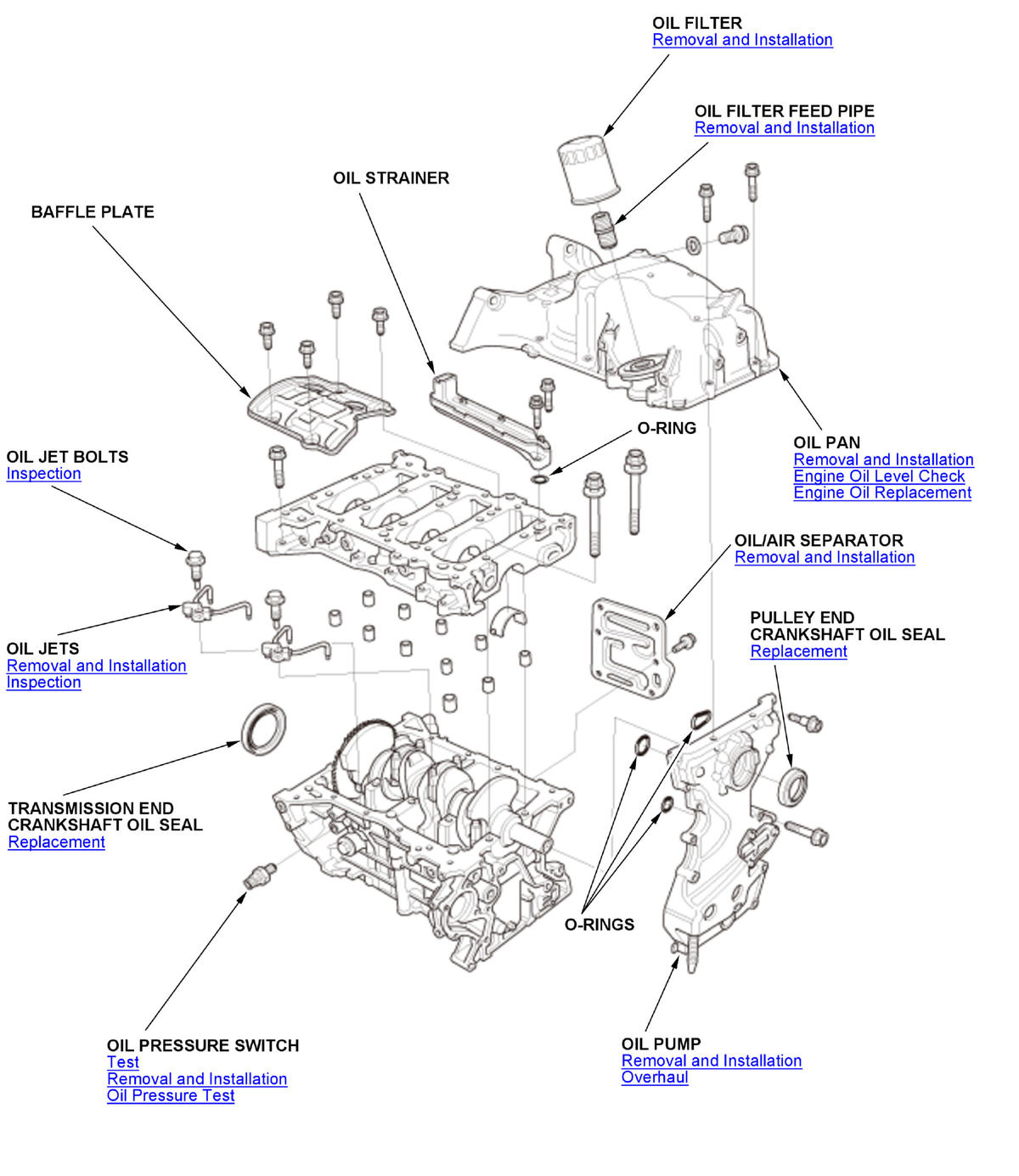

GHH437066

Courtesy of HONDA, U.S.A., INC.
