Power Windows System Description - Control/Function

Basic Control/Function

Manual Up/Down Function
The 1-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or vehicle OFF operation.
Auto Up/Down Function
The 2-step operation of the power window switch moves the window up or down. This is available during the vehicle in the ON mode or the vehicle OFF timer signal operation.

Auto Reverse Power Window Function

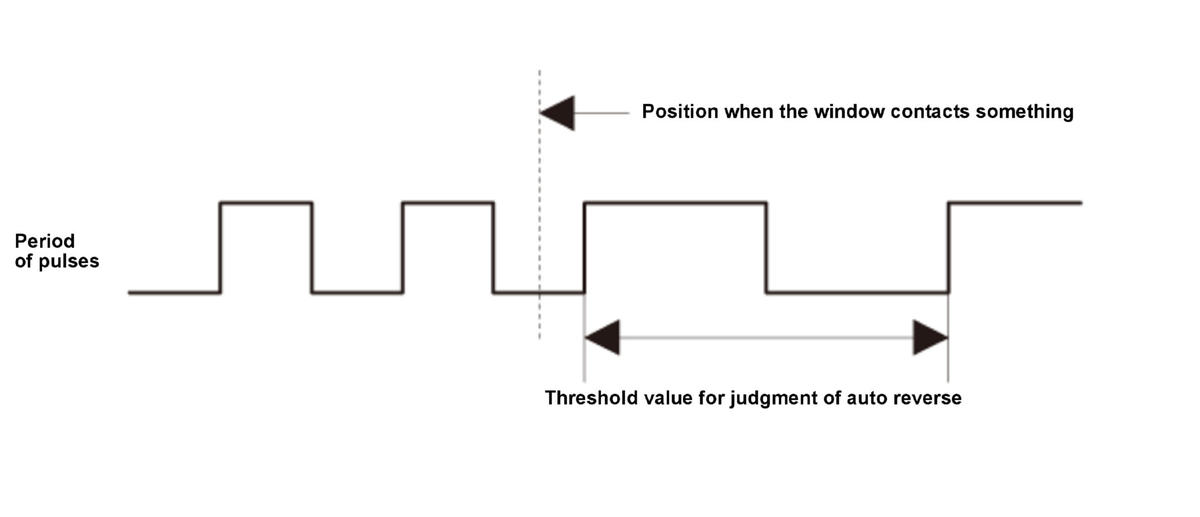

When an object is detected during the AUTO UP operation, the window stops closing and reverses about 2.76 in (70 mm). If the window is less than halfway opened (about 8.66 in (220 mm)), it will reverse to half open position (about 8.66 in (220 mm)). In manual operation, this function is active only during the vehicle OFF operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

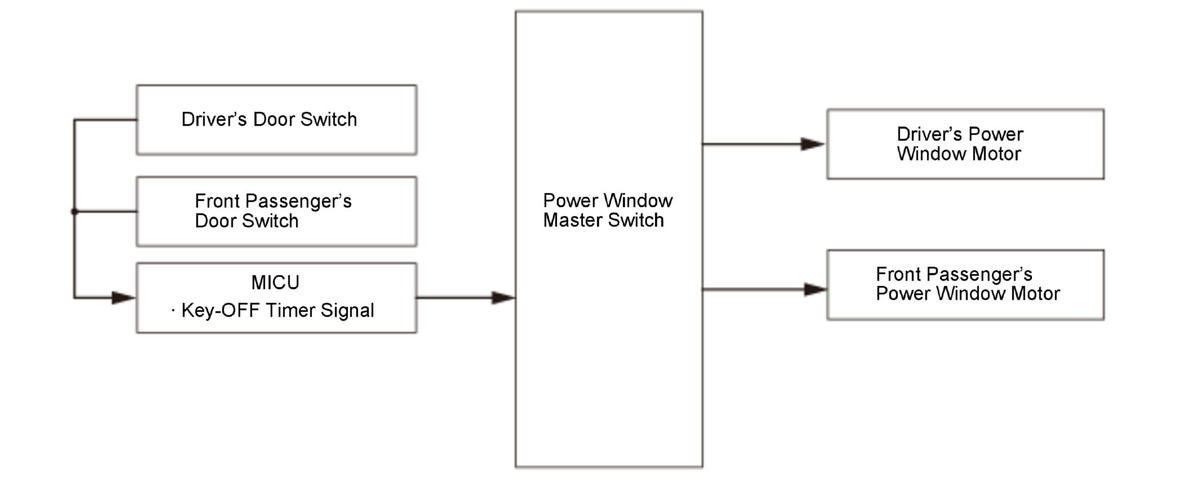

Vehicle OFF Operation

For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.

Courtesy of HONDA, U.S.A., INC.

Vehicle OFF Operation Start Condition		Vehicle ON mode -> OFF (LOCK) mode Driver's door switch OFF (Door close) Front Passenger's door switch OFF (Door close)
Vehicle OFF Operation Cancel condition	Timer	Vehicle ON mode -> OFF (LOCK) mode and past 10 minutes
Vehicle OFF Operation Cancel condition	Door	Driver's door switch ON (Door open) Front Passenger's door switch ON (Door open)

*: Operating time is different depending on the specifications.
