Gear Unit Control System Circuit Diagram

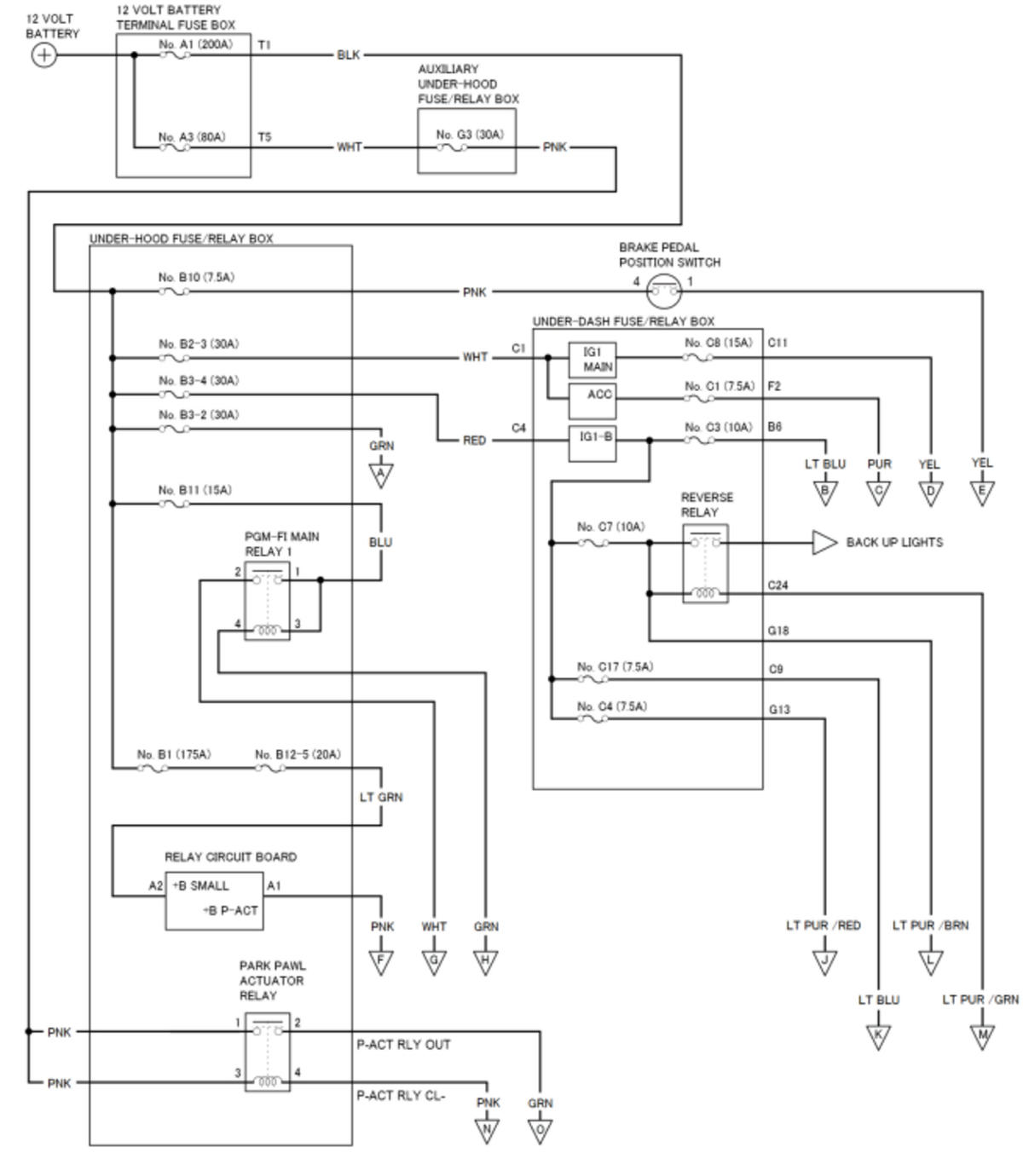

GHH413473Courtesy of HONDA, U.S.A., INC.

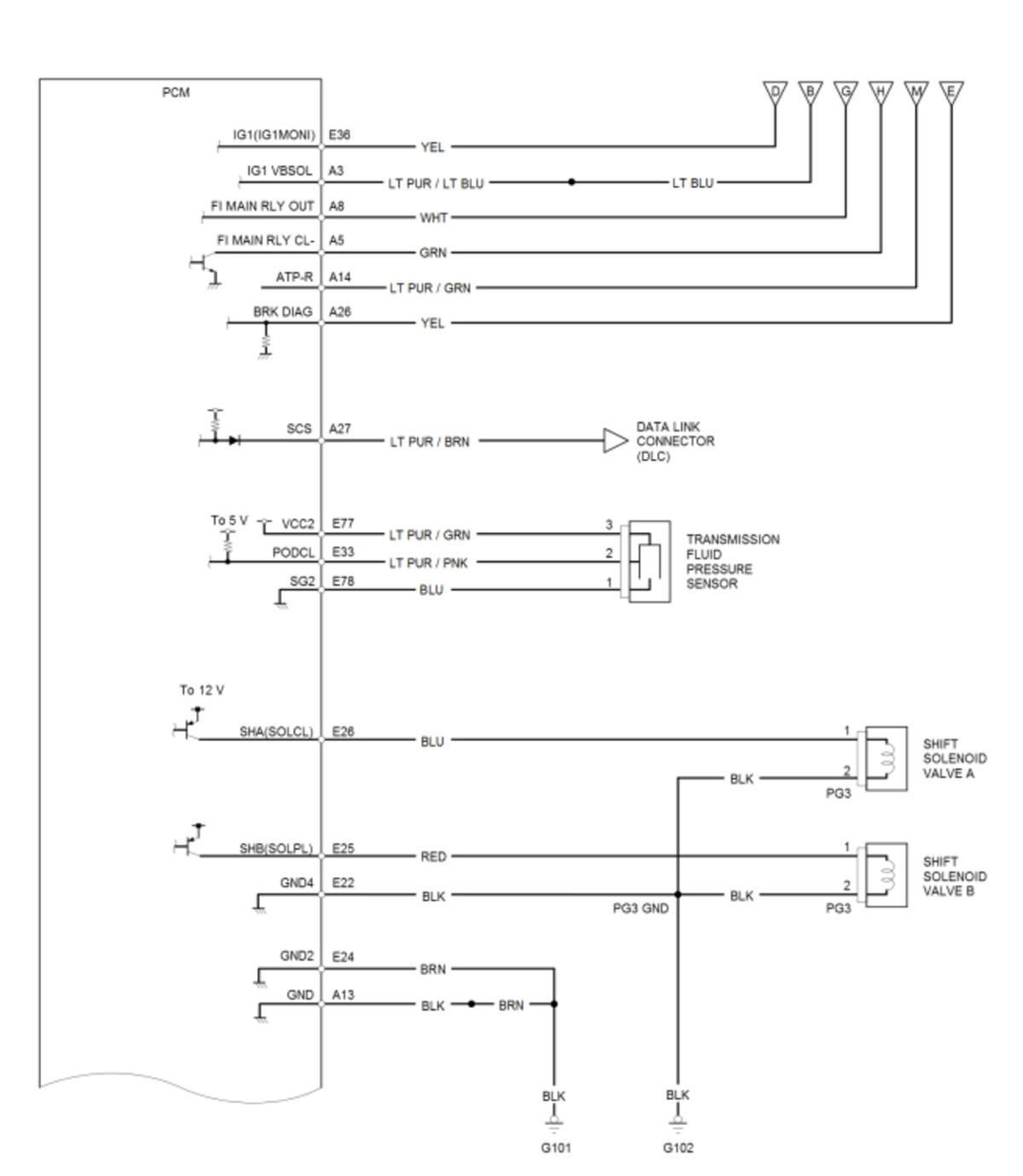

GHH413474Courtesy of HONDA, U.S.A., INC.

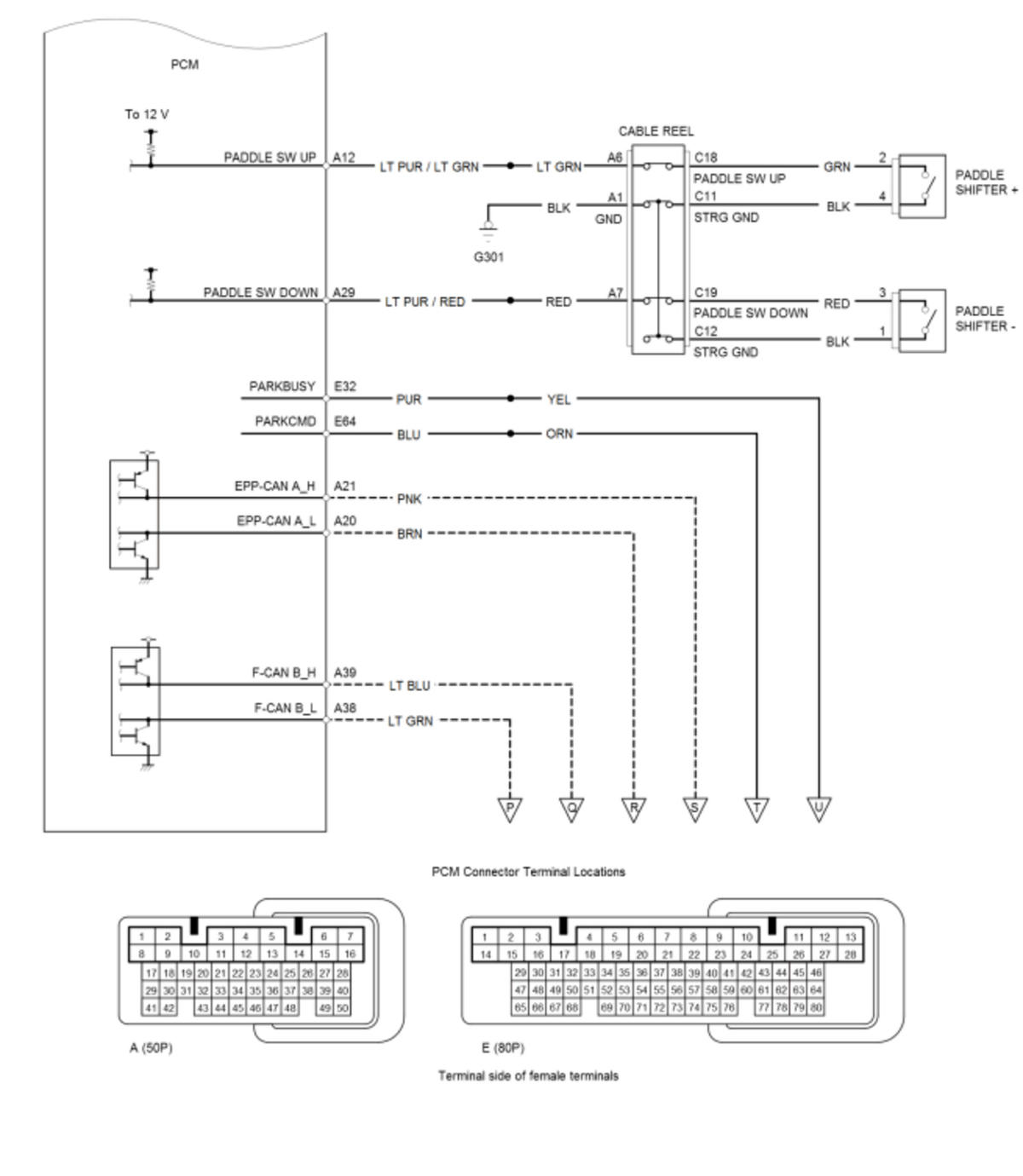

GHH413475Courtesy of HONDA, U.S.A., INC.

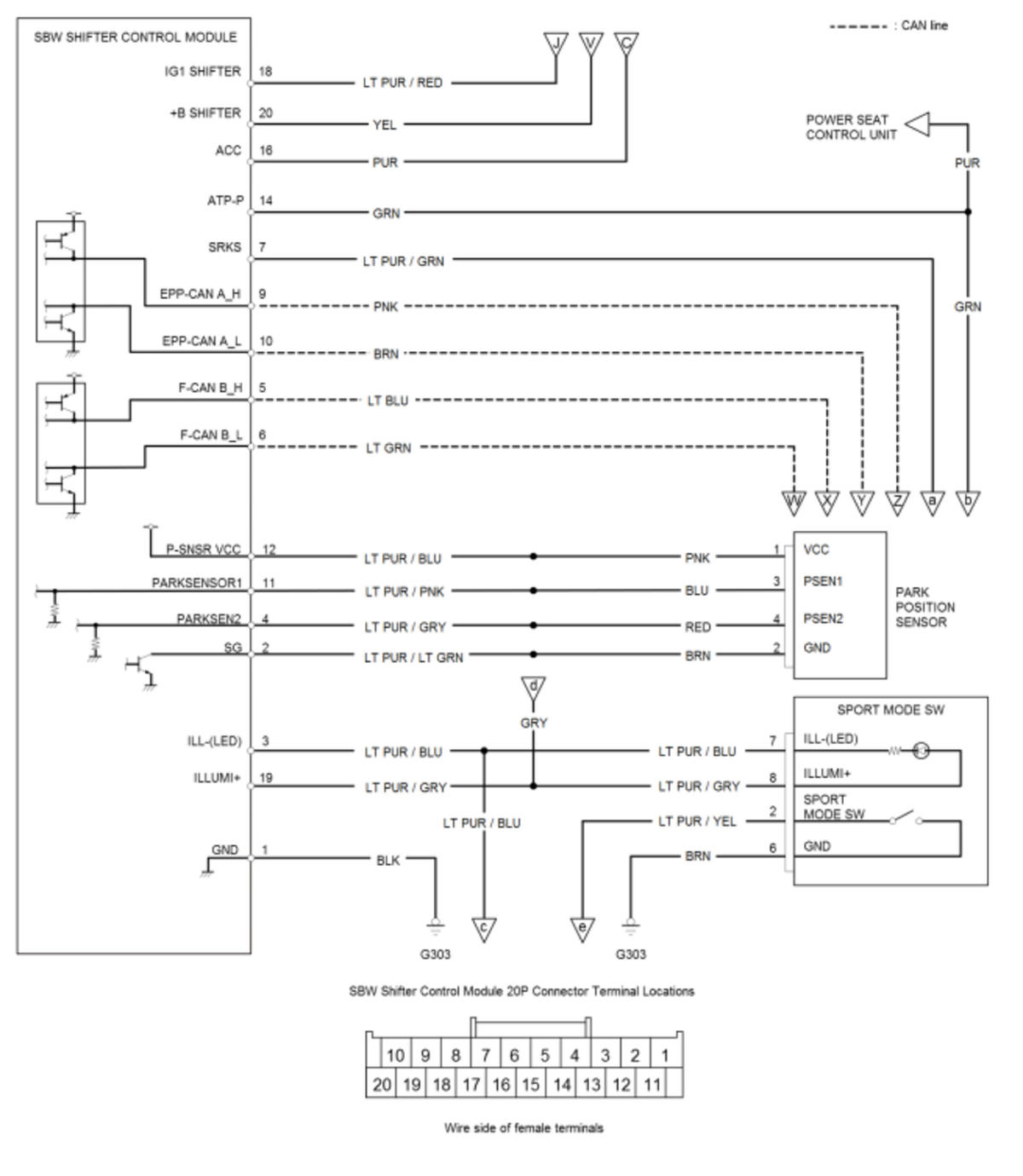

GHH413476Courtesy of HONDA, U.S.A., INC.

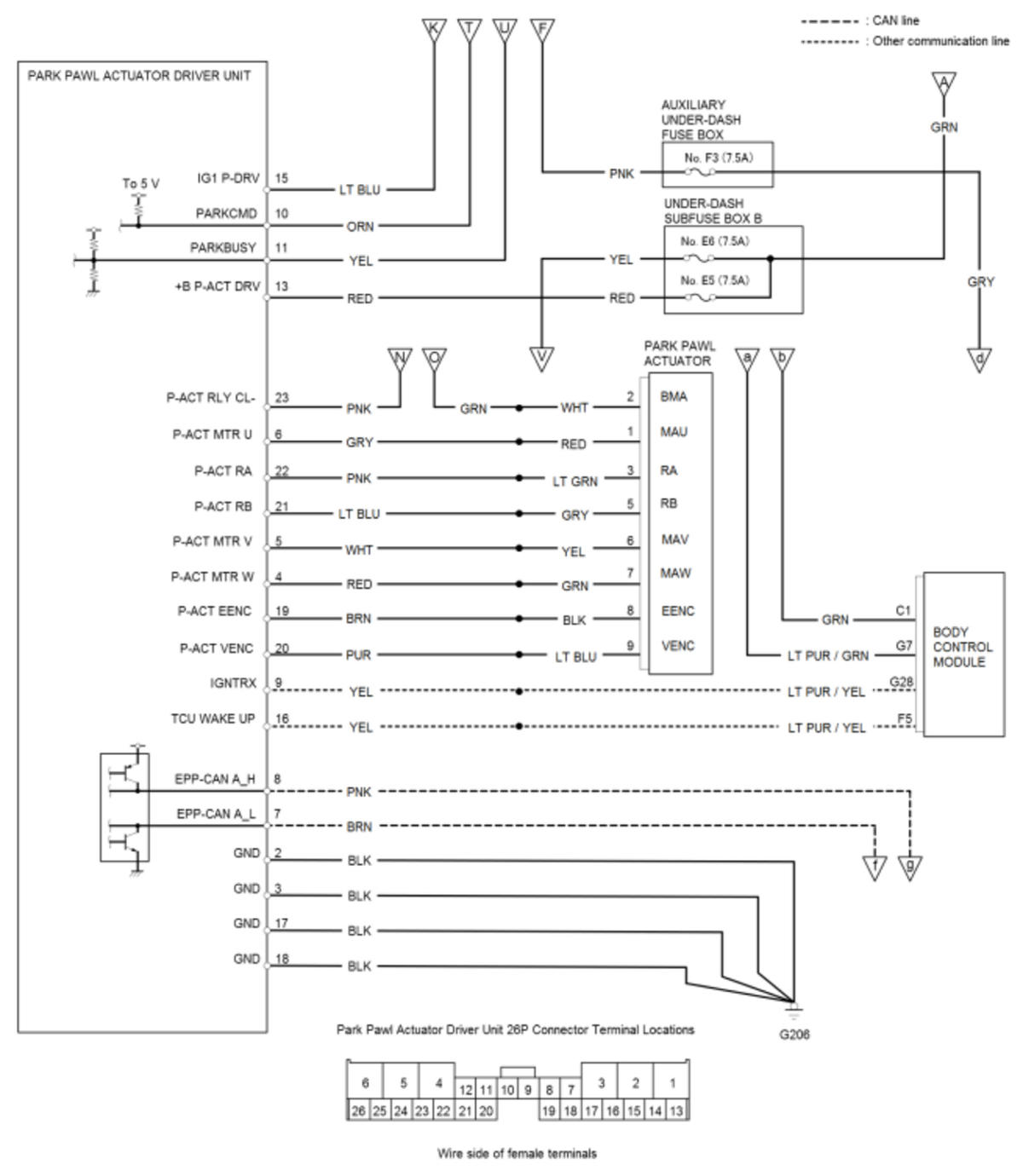

GHH413477Courtesy of HONDA, U.S.A., INC.

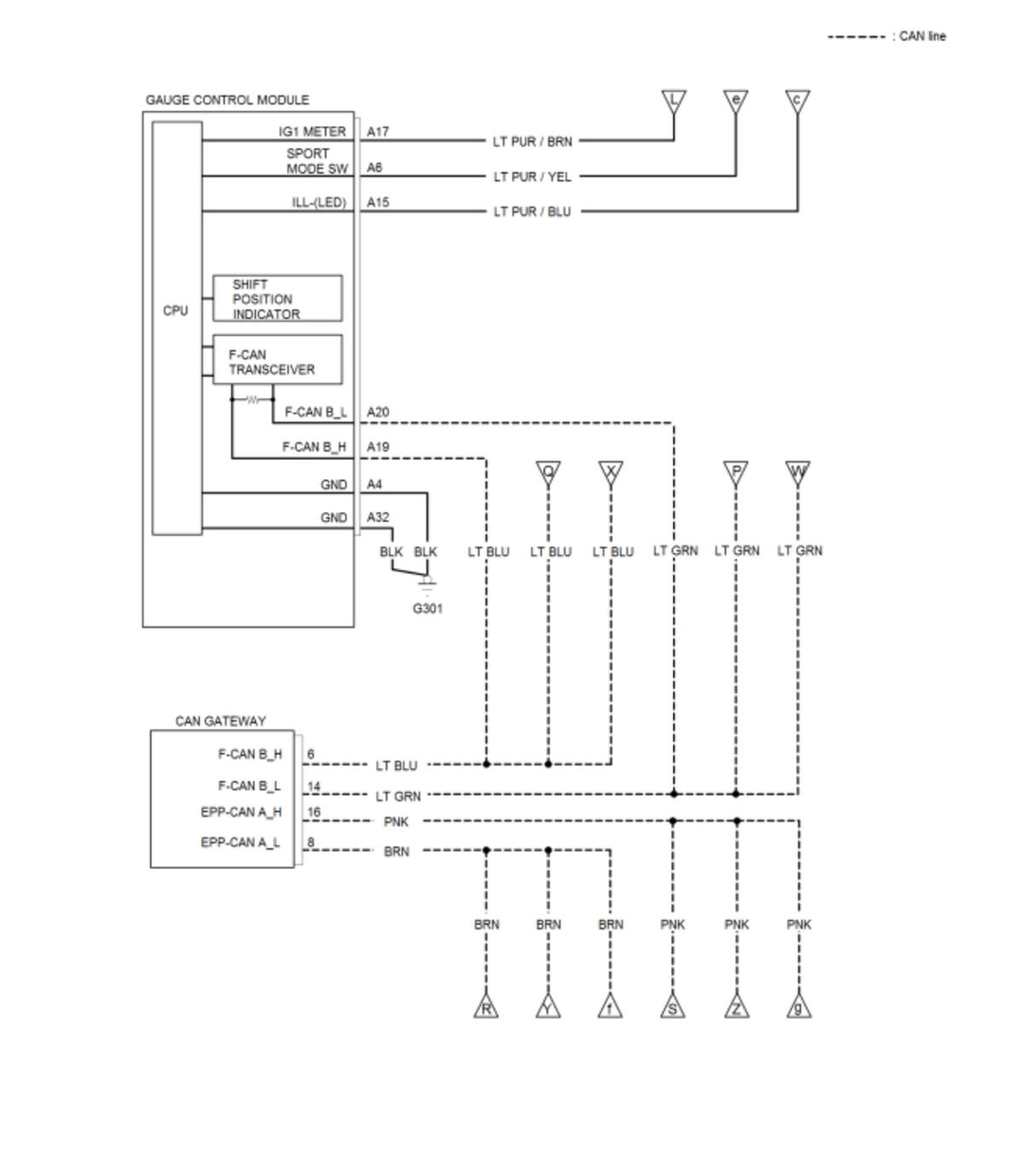

GHH413478Courtesy of HONDA, U.S.A., INC.
