Rear Power Window Switch Connector for Inputs and Outputs

Connector Index
LEFT REAR POWER WINDOW SWITCH 10P CONNECTOR
RIGHT REAR POWER WINDOW SWITCH 10P CONNECTOR

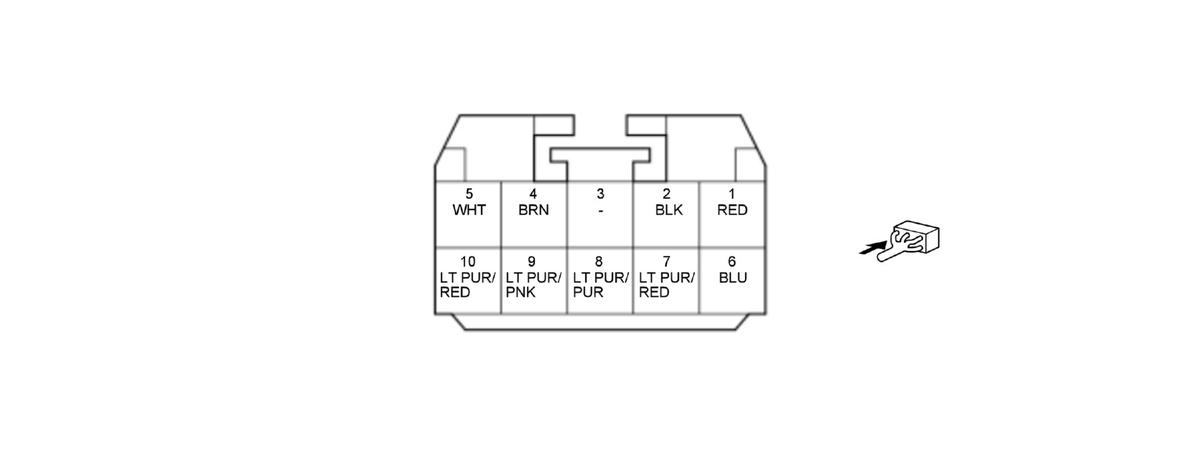

Left Rear Power Window Switch 10P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Left Rear Power Window Switch 10P Connector (female terminals)

Terminal number	Terminal name	Description	Signal
1	P/W RR L MTR DOWN	Drives left rear power window motor	When left rear power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	GND	Ground for left rear power window switch	Less than 0.2 V at all times
3	Not used	---	---
4	+B P/W RR L	Power source for left rear power window switch	About battery voltage at all times
5	LIN (P/W)	Communication line	---
6	P/W RR L MTR UP	Drives left rear power window motor	When left rear power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
7	P/W RR L MTR PLSA	Detects P/W RR L MTR PLSA signal	---
8	P/W RR L MTR VCC	Outputs P/W RR L MTR VCC signal	With left rear power window control unit is wakeup mode: about battery voltage If none of above conditions are met: less than 0.2 V
9	P/W RR L MTR PLSB	Detects P/W RR L MTR PLSB signal	---
10	P/W RR L MTR SGND	Ground for left rear power window switch	Less than 0.2 V at all times

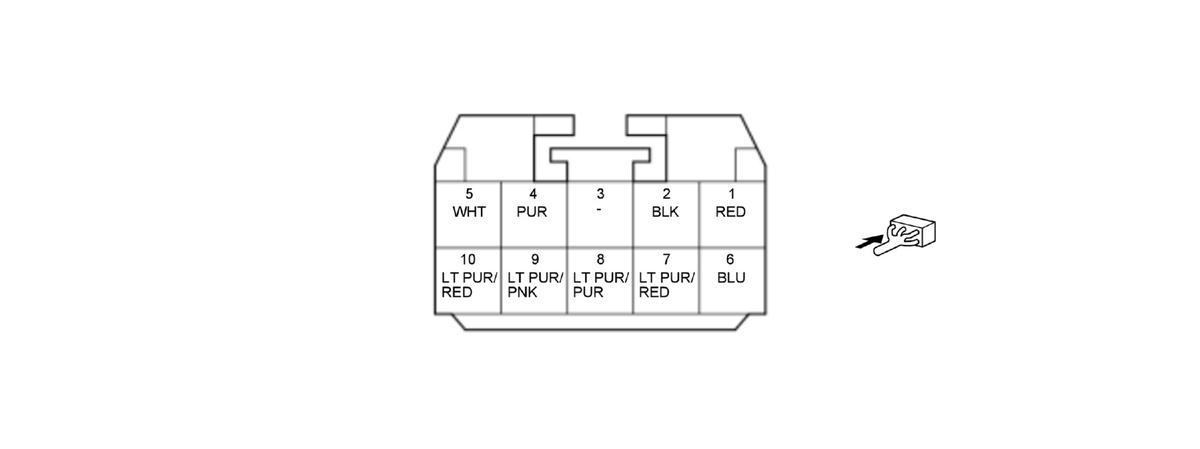

Right Rear Power Window Switch 10P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Right Rear Power Window Switch 10P Connector (female terminals)

Terminal number	Terminal name	Description	Signal
1	P/W RR R MTR DOWN	Drives right rear power window motor	When right rear power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V
2	GND	Ground for right rear power window switch	Less than 0.2 V at all times
3	Not used	---	---
4	+B P/W RR R	Power source for right rear power window switch	About battery voltage at all times
5	LIN (P/W)	Communication line	---
6	P/W RR R MTR UP	Drives right rear power window motor	When right rear power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V
7	P/W RR R MTR PLSA	Detects P/W RR R MTR PLSA signal	---
8	P/W RR R MTR VCC	Outputs P/W RR R MTR VCC signal	With right rear power window control unit is wakeup mode: about battery voltage If none of above conditions are met: less than 0.2 V
9	P/W RR R MTR PLSB	Detects P/W RR R MTR PLSB signal	---
10	P/W RR R MTR SGND	Ground for right rear power window switch	Less than 0.2 V at all times
