CMBS Off Switch: Test

CMBS OFF Switch - Test

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Switch Internal Circuit Check

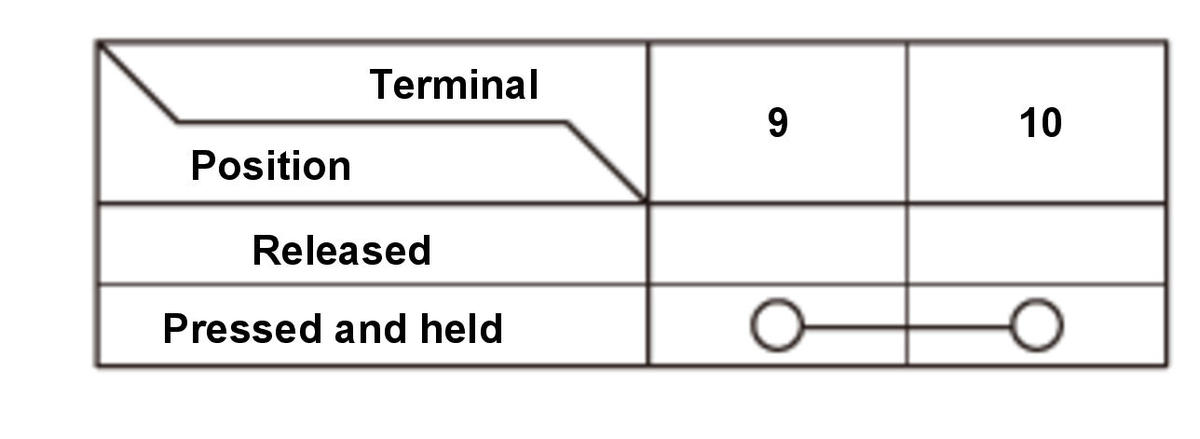

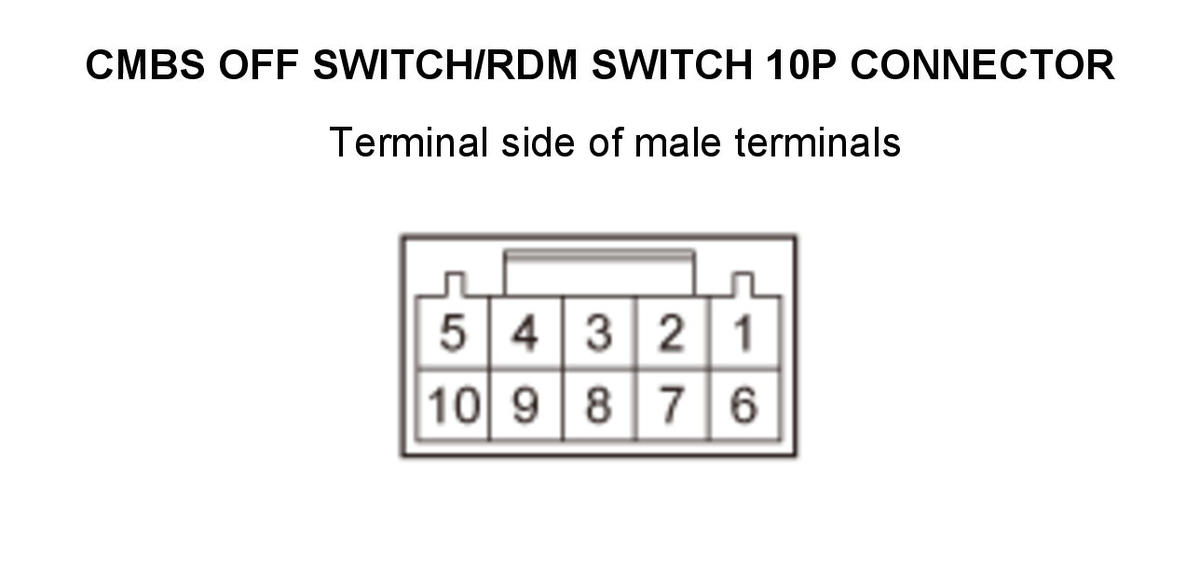

1. Press the switch, and check for continuity between CMBS OFF switch/RDM switch 10P connector terminals No. 9 and No. 10 according to the table.
- If the continuity is not as specified, replace the CMBS OFF switch/RDM switch.
Courtesy of HONDA, U.S.A., INC.

Switch Illumination Circuit Check

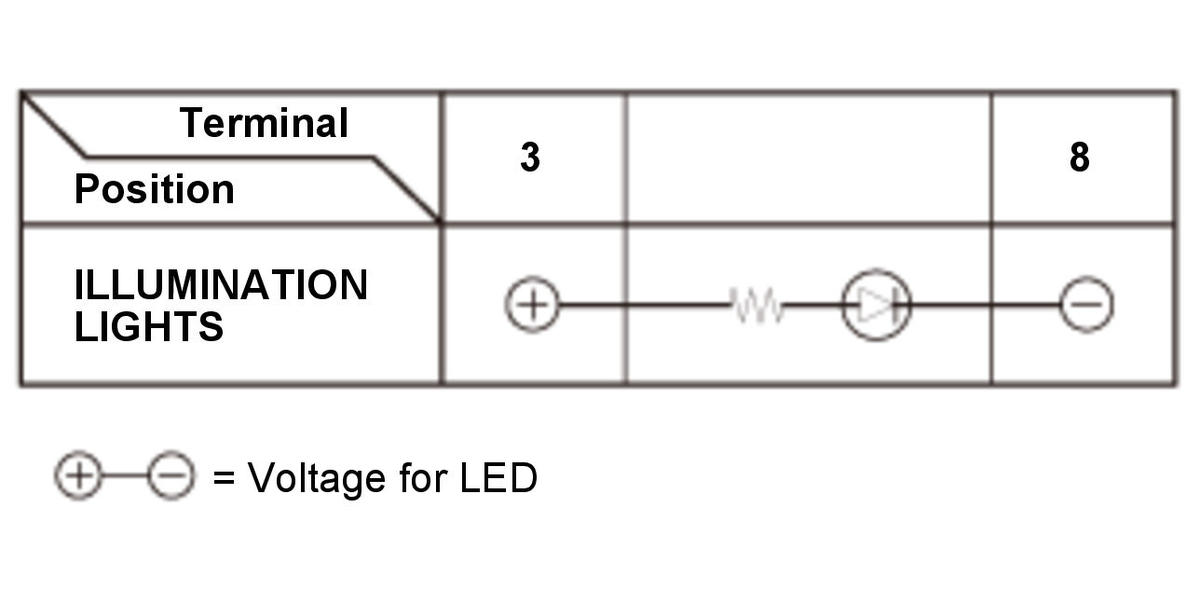

1. Check the LED for illumination when connecting battery power and ground to the switch terminals according to the table.

NOTE: Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

If the results are not as specified, replace the CMBS OFF switch/RDM switch.
