Power Seat Control Unit Connector For Inputs And Outputs
| Connector Index |
|---|
| POWER SEAT CONTROL UNIT CONNECTOR A (20P) |
| POWER SEAT CONTROL UNIT CONNECTOR B (12P) |

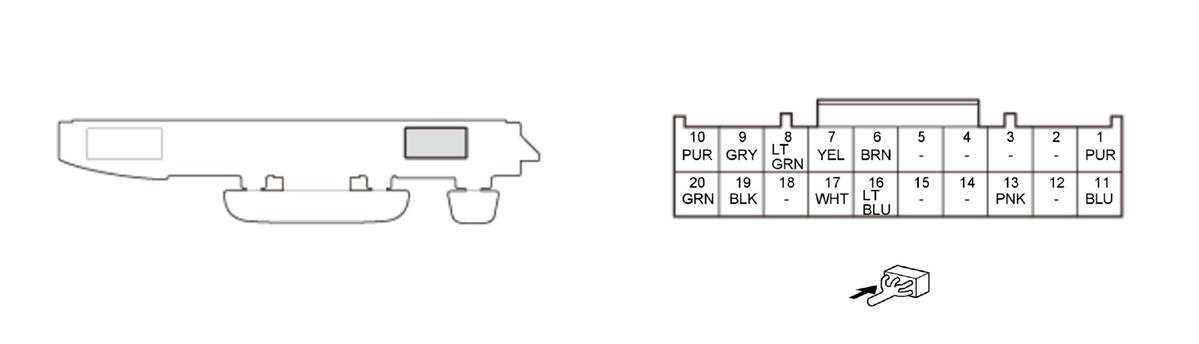

Power Seat Control Unit Connector A (20P) (female terminals)
Power Seat Control Unit Connector A (20P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | ATP | Detects ATP signal | With vehicle in ON mode and P position/mode: less than 0.2 V With vehicle in ON mode and out of P position/mode: about battery voltage |
| 2 | Not used | --- | --- |
| 3 | Not used | --- | --- |
| 4 | Not used | --- | --- |
| 5 | Not used | --- | --- |
| 6 | SVCC | Drives power seat sensor | When power seat control unit is wakeup mode: about battery voltage |
| 7 | FHSE | Detects FHSE signal | --- |
| 8 | SLSE | Detects SLSE signal | --- |
| 9 | RHSE | Detects RHSE signal | --- |
| 10 | RESE | Detects RESE signal | --- |
| 11 | VBU | Power source for power seat control unit | About battery voltage at all times |
| 12 | Not used | --- | --- |
| 13 | IGN | IG1 power source | With vehicle in ON or READY TO DRIVE mode: about battery voltage |
| 14 | Not used | --- | --- |
| 15 | Not used | --- | --- |
| 16 | B-CAN_H | Communication line | --- |
| 17 | B-CAN_L | Communication line | --- |
| 18 | Not used | --- | --- |
| 19 | SEG | Ground for power seat sensor | Less than 0.2 V at all times |
| 20 | SG | Ground for power seat control unit | Less than 0.2 V at all times |

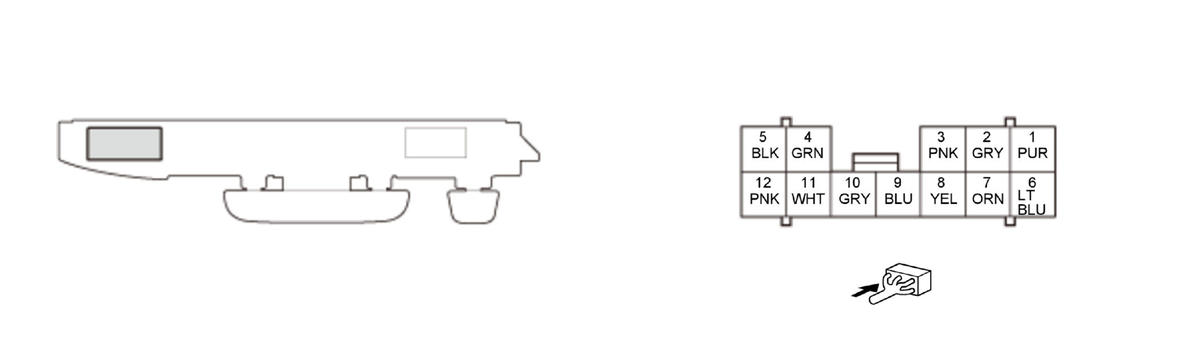

Power Seat Control Unit Connector B (12P) (female terminals)
Power Seat Control Unit Connector B (12P) (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | SLIDE(BACKWARD) | Drives slide motor | With slide motor operation (rear side): about battery voltage |
| 2 | PG 1 | Ground for power seat control unit | Less than 0.2 V at all times |
| 3 | SLIDE(FORWARD) | Drives slide motor | With slide motor operation (front side): about battery voltage |
| 4 | HEIGHT(DOWN) | Drives rear up-down motor | With rear up-down motor operation (down): about battery voltage |
| 5 | PG 2 | Ground for power seat control unit | Less than 0.2 V at all times |
| 6 | VMP 1 | Power source for slide motor or front up-down motor | About battery voltage at all times |
| 7 | TILT(DOWN) | Drives front up-down motor | With front up-down motor operation (down): about battery voltage |
| 8 | RECL(FORWARD) | Drives recline motor | With recline motor operation (front side): about battery voltage |
| 9 | HEIGHT(UP) | Drives rear up-down motor | With rear up-down motor operation (up): about battery voltage |
| 10 | TILT(UP) | Drives front up-down motor | With front up-down motor operation (up): about battery voltage |
| 11 | RECL(BACKWARD) | Drives recline motor | With recline motor operation (rear side): about battery voltage |
| 12 | VMP 2 | Power source for recline motor or rear up-down motor | About battery voltage at all times |
