Driving Position Memory System (DPMS) Circuit Diagram

Driver's Power Seat

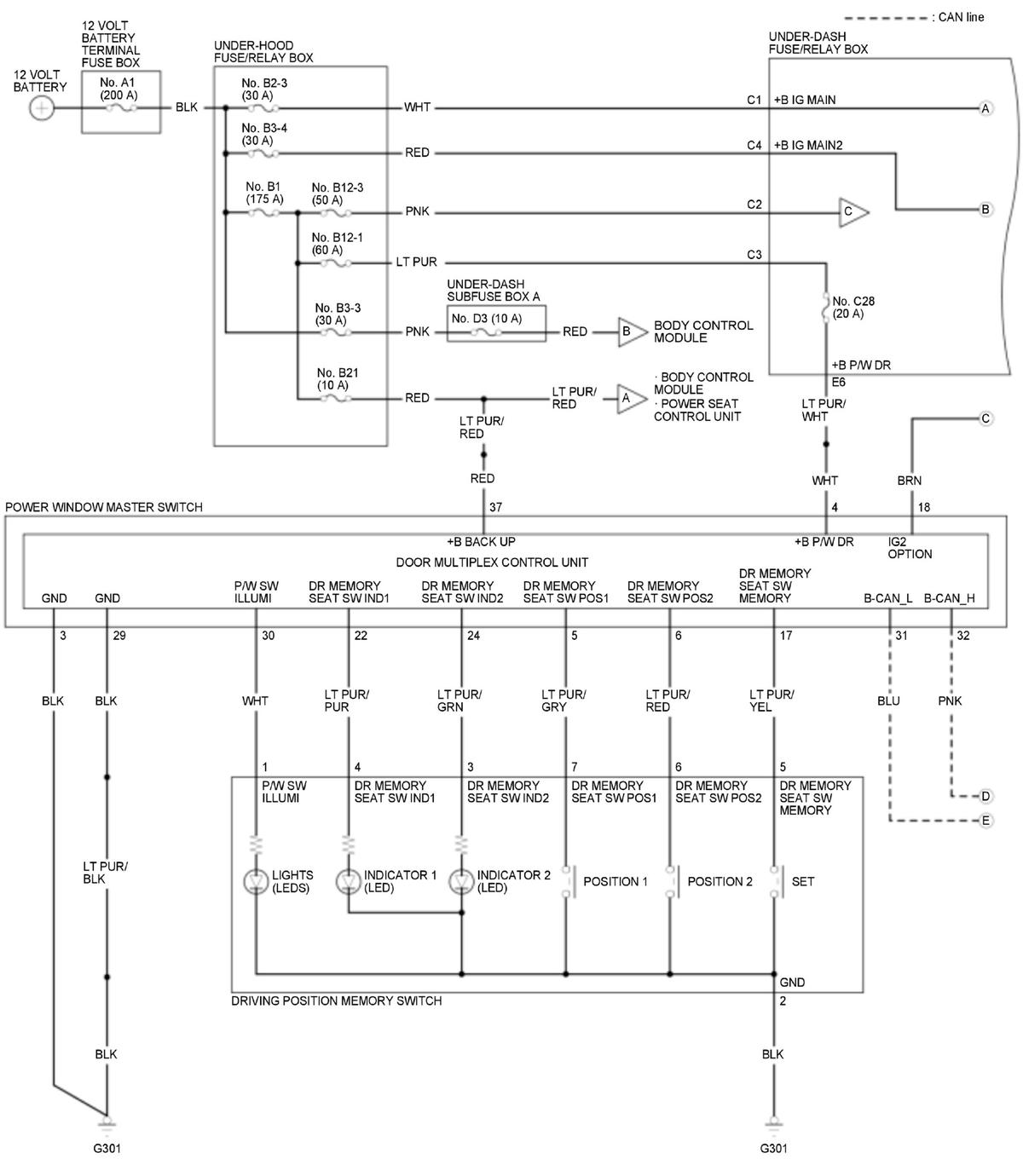

GHH419302

Courtesy of HONDA, U.S.A., INC.

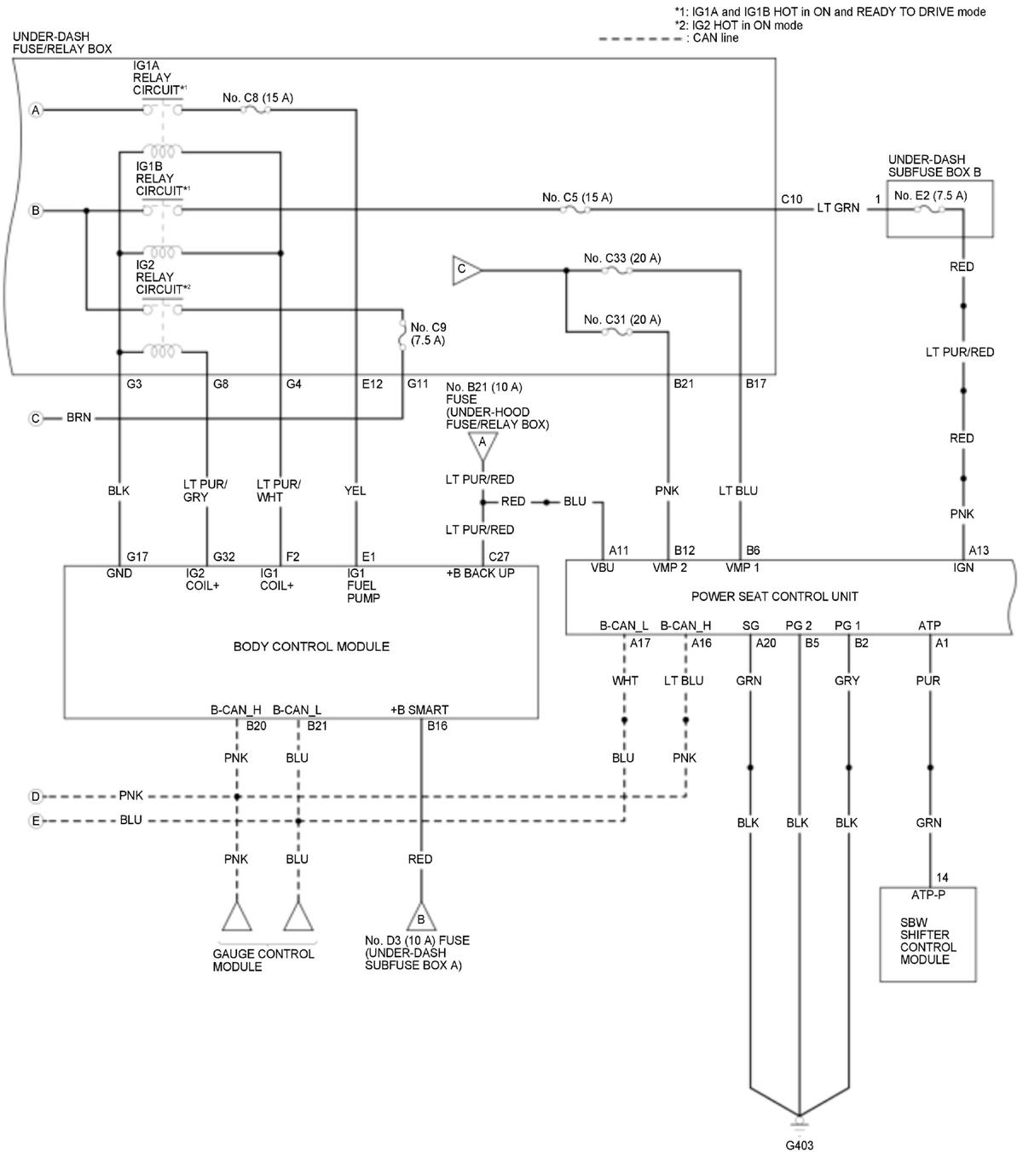

GHH419303

Courtesy of HONDA, U.S.A., INC.

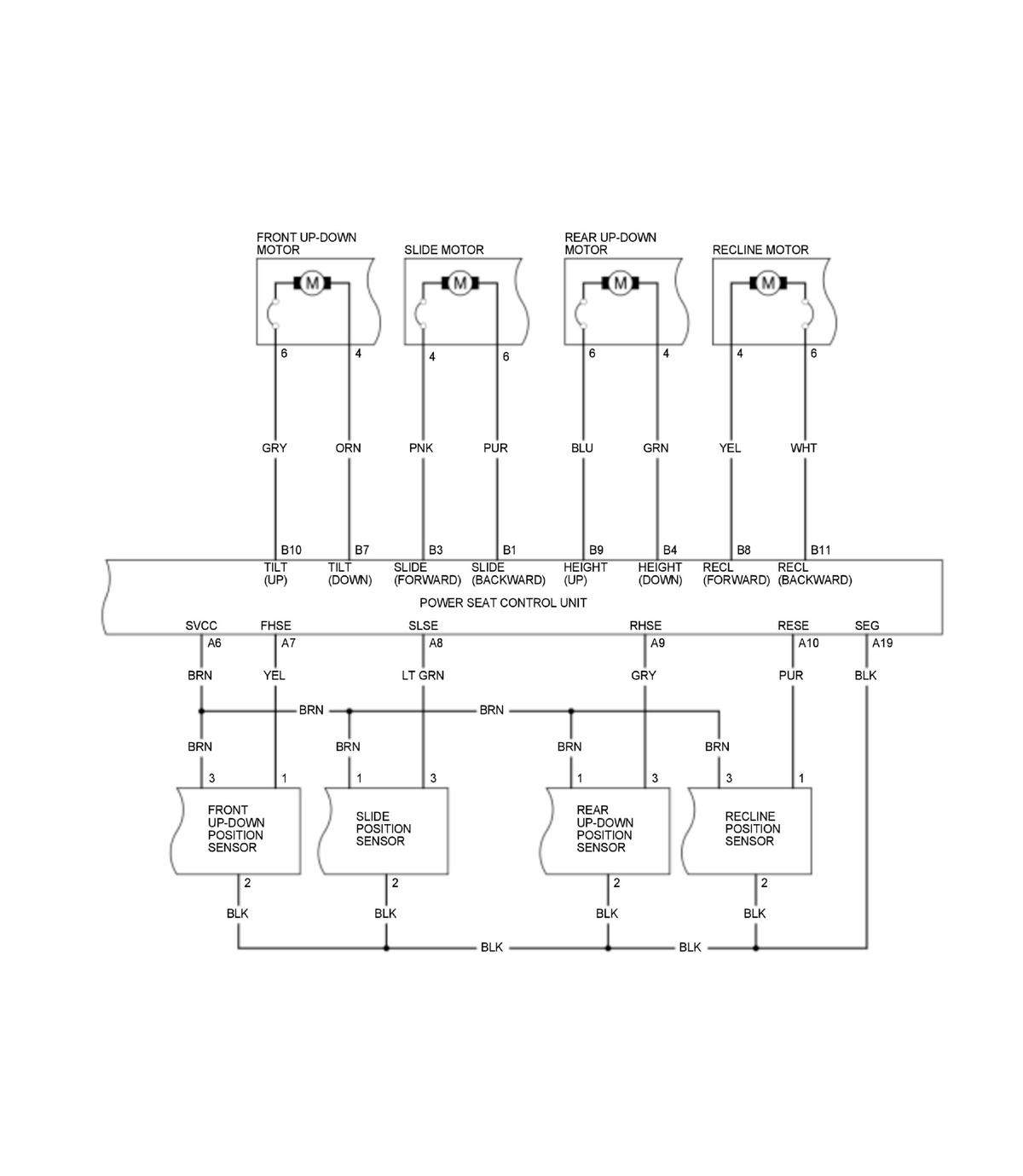

GHH419304

Courtesy of HONDA, U.S.A., INC.
