Valve Inspection (1.5 L Engine): Inspection

WARNING:

Please carefully read "Precaution for Handling Sodium-Filled Valves" and follow the instructions as the exhaust valves contain metal sodium .

Valve - Remove

Valve - Inspect

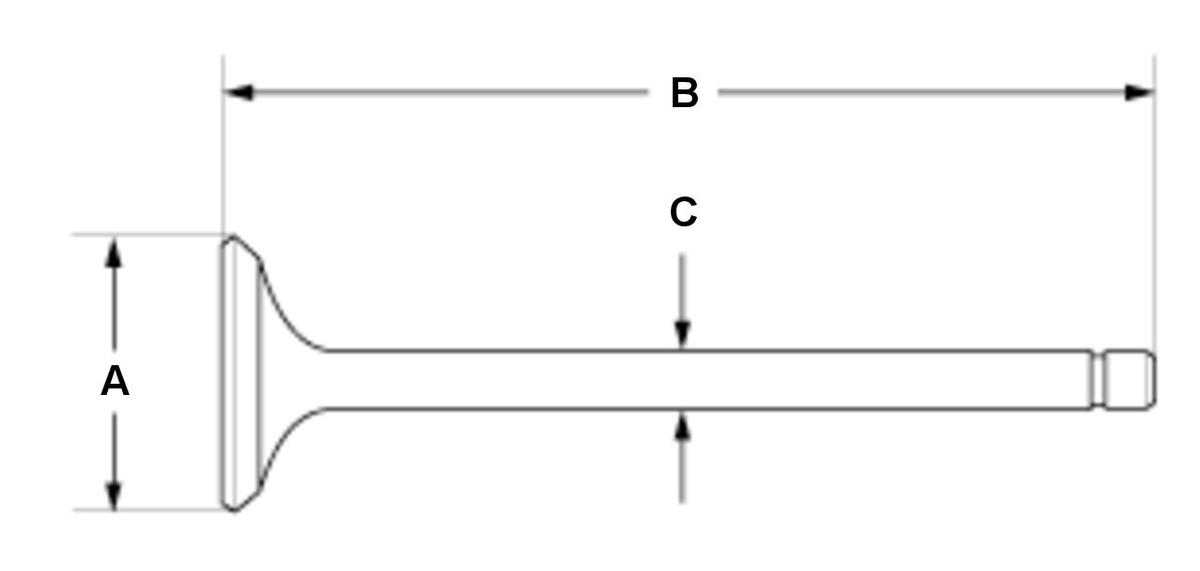

GHH427016

Courtesy of HONDA, U.S.A., INC.

1. Measure the valve in these areas.

Exhaust Valve Dimensions
A Standard (New):	22.90-23.10 mm (0.9016-0.9094 in)
B Standard (New):	98.80-99.20 mm (3.8898-3.9055 in)
C Standard (New):	5.45-5.46 mm (0.2146-0.2150 in)
C Service Limit:	5.42 mm (0.2134 in)

Intake Valve Dimensions
A Standard (New):	27.90-28.10 mm (1.0984-1.1063 in)
B Standard (New):	99.15-99.65 mm (3.9035-3.9232 in)
C Standard (New):	5.48-5.49 mm (0.2157-0.2161 in)
C Service Limit:	5.45 mm (0.2146 in)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
