Valve Guide Replacement (2.4 L Engine) (2017 2018 2019): Replacement

  1. Valve Seal and Valve Spring Seat - Remove
  2. Valve Guide - Remove
    GHH426821Courtesy of HONDA, U.S.A., INC.

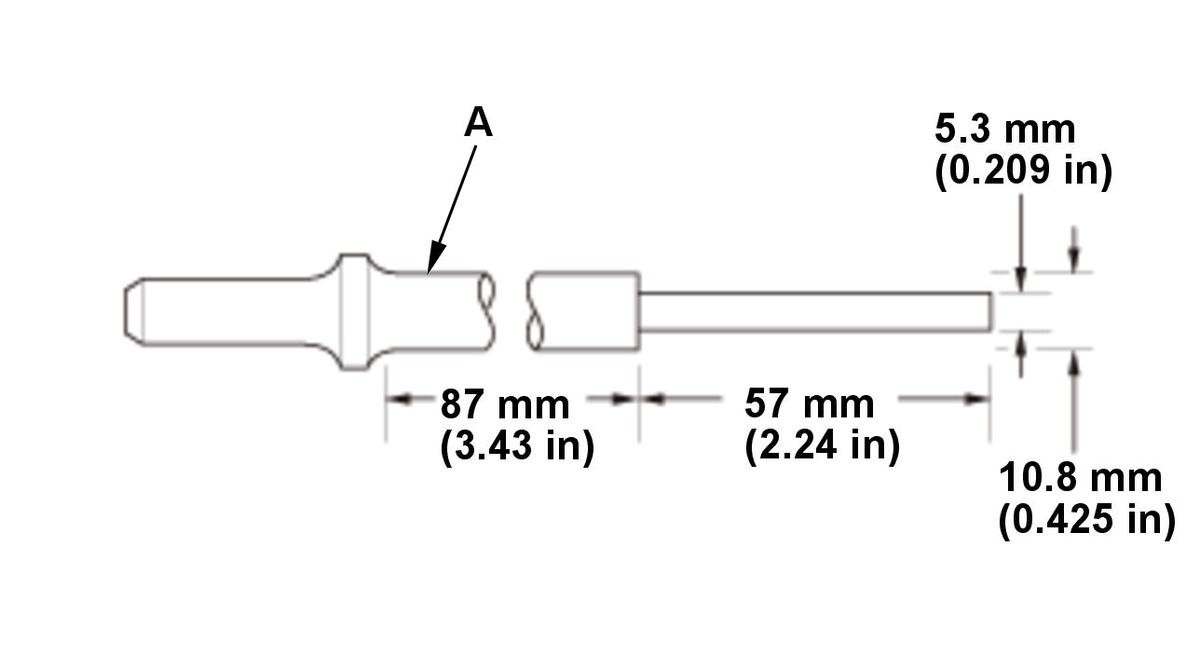

    		 1. As illustrated below, use a commercially available air-impact valve guide driver (A) modified to fit the diameter of the valve guides. In most cases, the same procedure can be done using the valve guide driver, 5.35 x 9.7 mm and a conventional hammer.

    2. Select the proper replacement valve guides, and chill them in the freezer section of a refrigerator for at least an hour.
    GHH426822Courtesy of HONDA, U.S.A., INC.

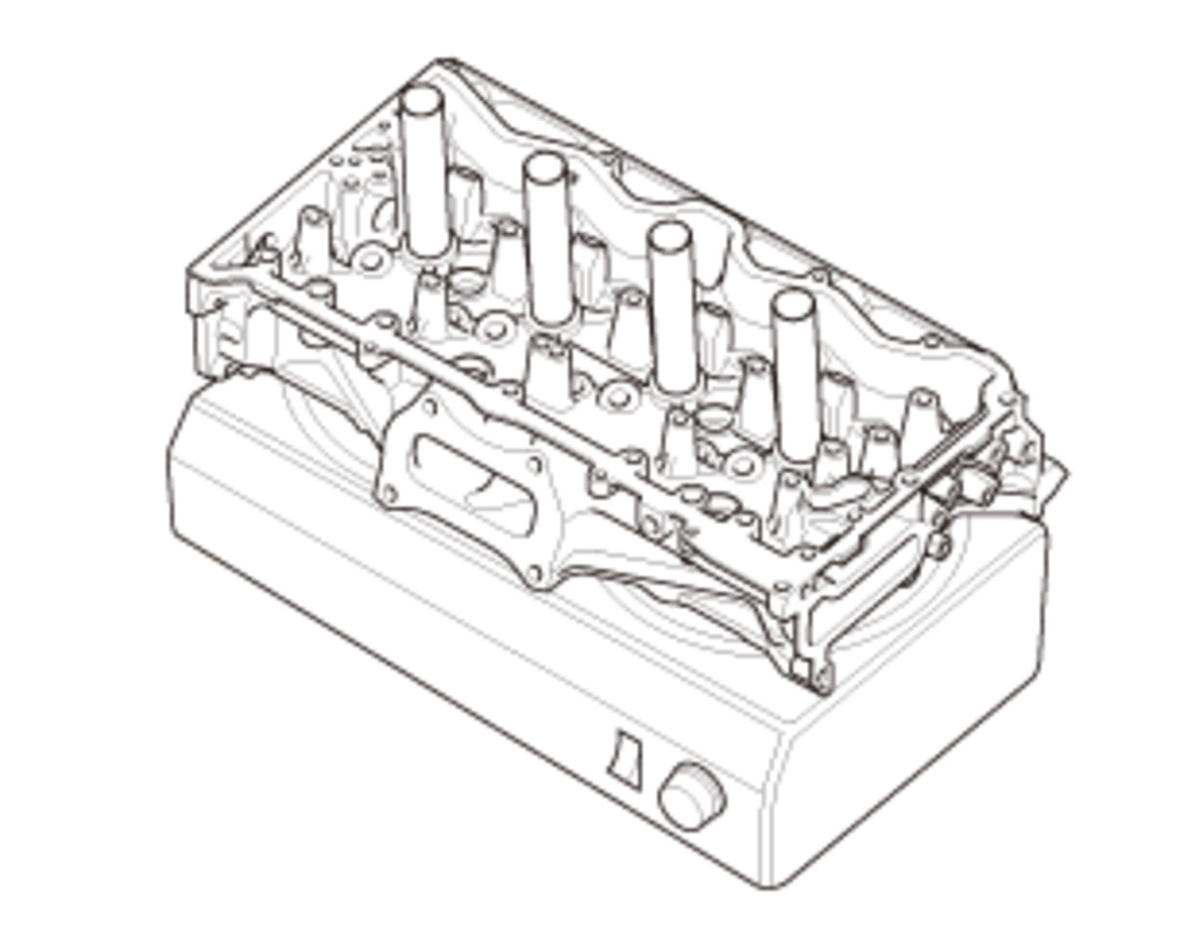

    		 3. Use a hot plate or an oven to evenly heat the cylinder head to 300 deg. F (150 deg. C). Monitor the temperature with a cooking thermometer. Do not get the head hotter than 300 deg. F (150 deg. C); excessive heat may loosen the valve seats.
    GHH426823GHH426824Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH426823GHH426824Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

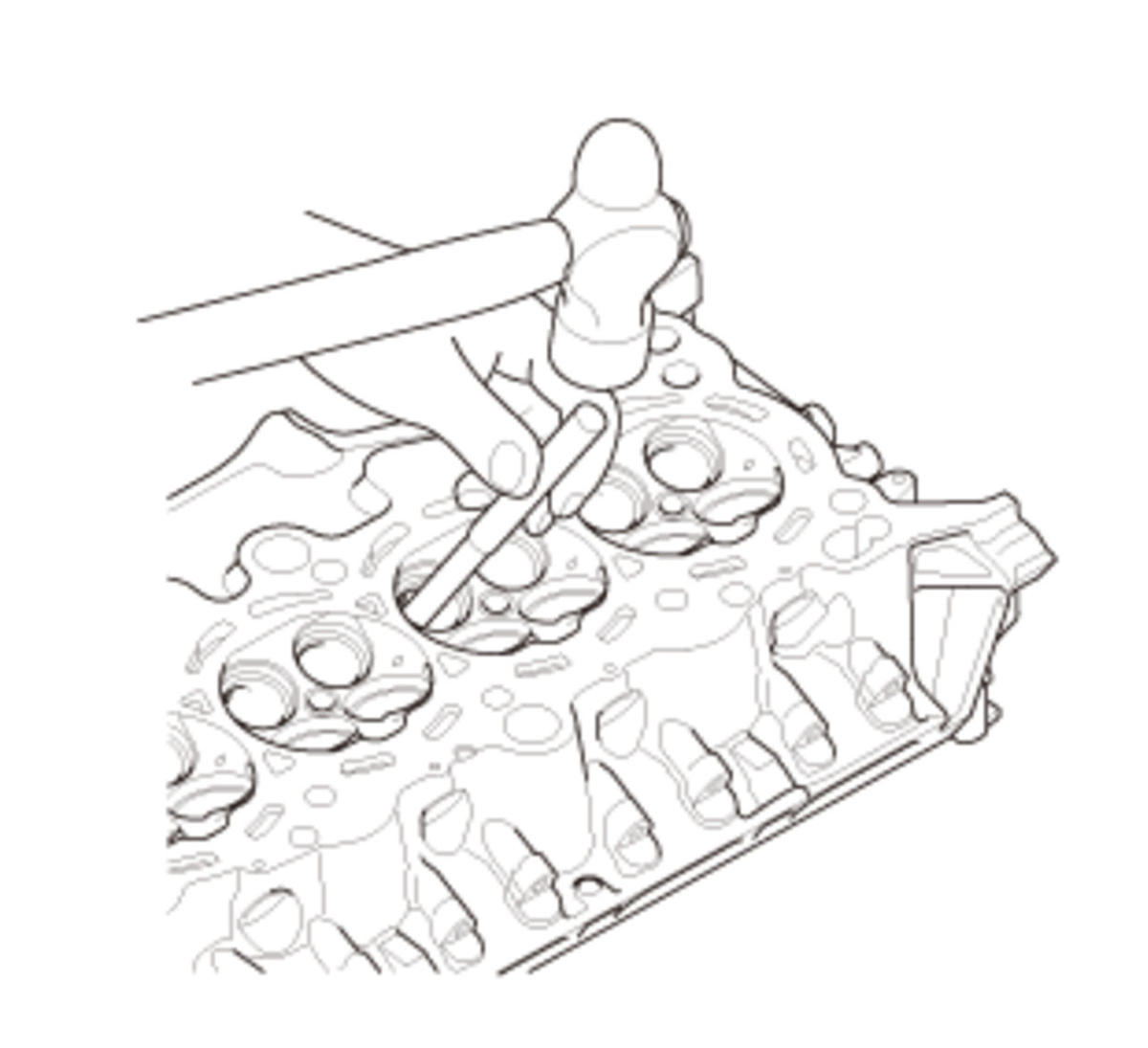

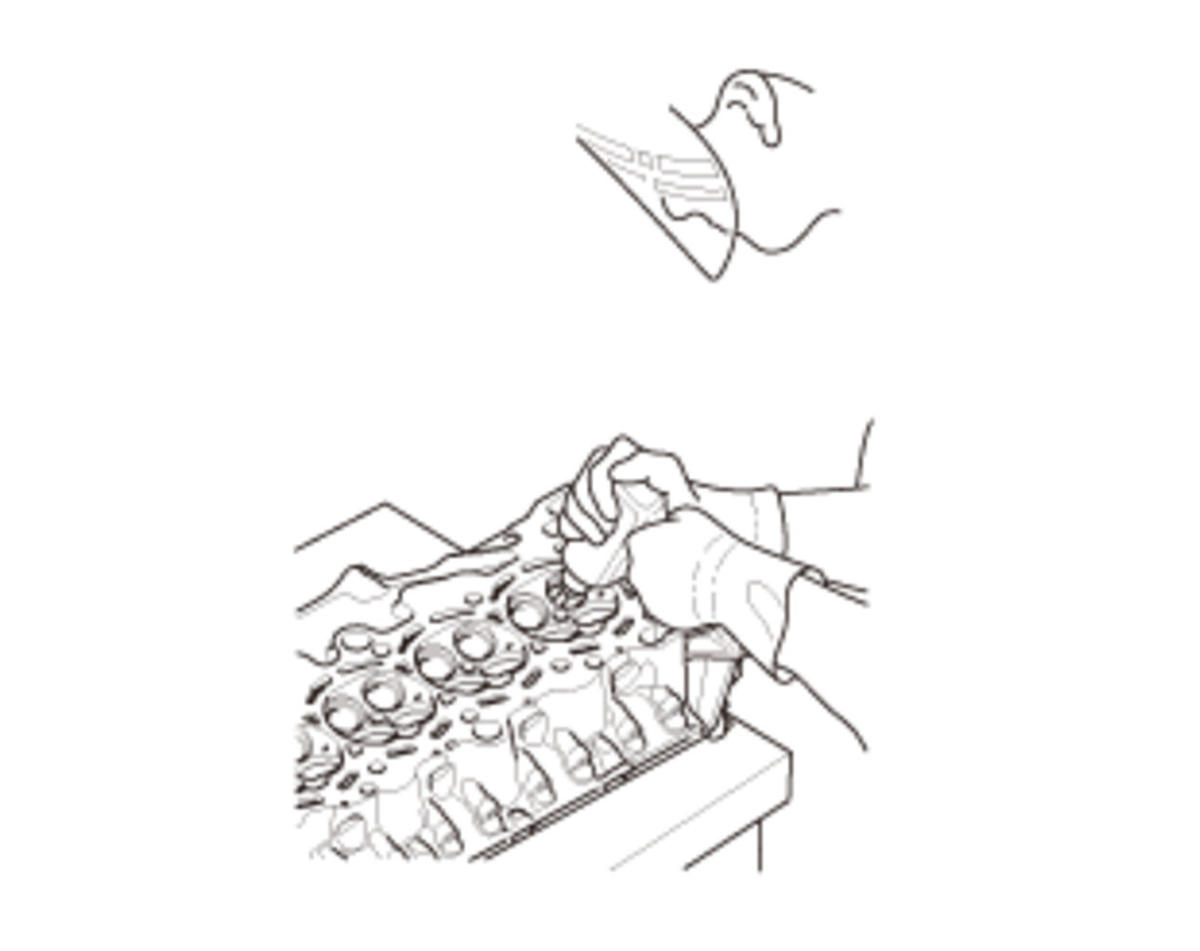

    		 4. Working from the camshaft side, use the valve guide driver and an air hammer to drive the valve guide about 2 mm (0.08 in) towards the combustion chamber. This will knock off some of the carbon and make removal easier. Hold the air hammer directly in line with the valve guide to prevent damaging the driver. Wear safety goggles or a face shield.

    5. Turn the head over, and drive the valve guide out toward the camshaft side of the head.

    6. If a valve guide will not move, drill it out with an 8 mm (0.31 in) drill bit, then try again.


    NOTE:

    Drill guides only in extreme cases; you could damage the cylinder head if the valve guide breaks.
  3. Valve Guide - Install
    GHH426825Courtesy of HONDA, U.S.A., INC.
    		 1. Take out the new valve guide (s) from the freezer, one at a time, as you need them.

    2. Apply a thin coat of new engine oil to the outside of a new valve guide.

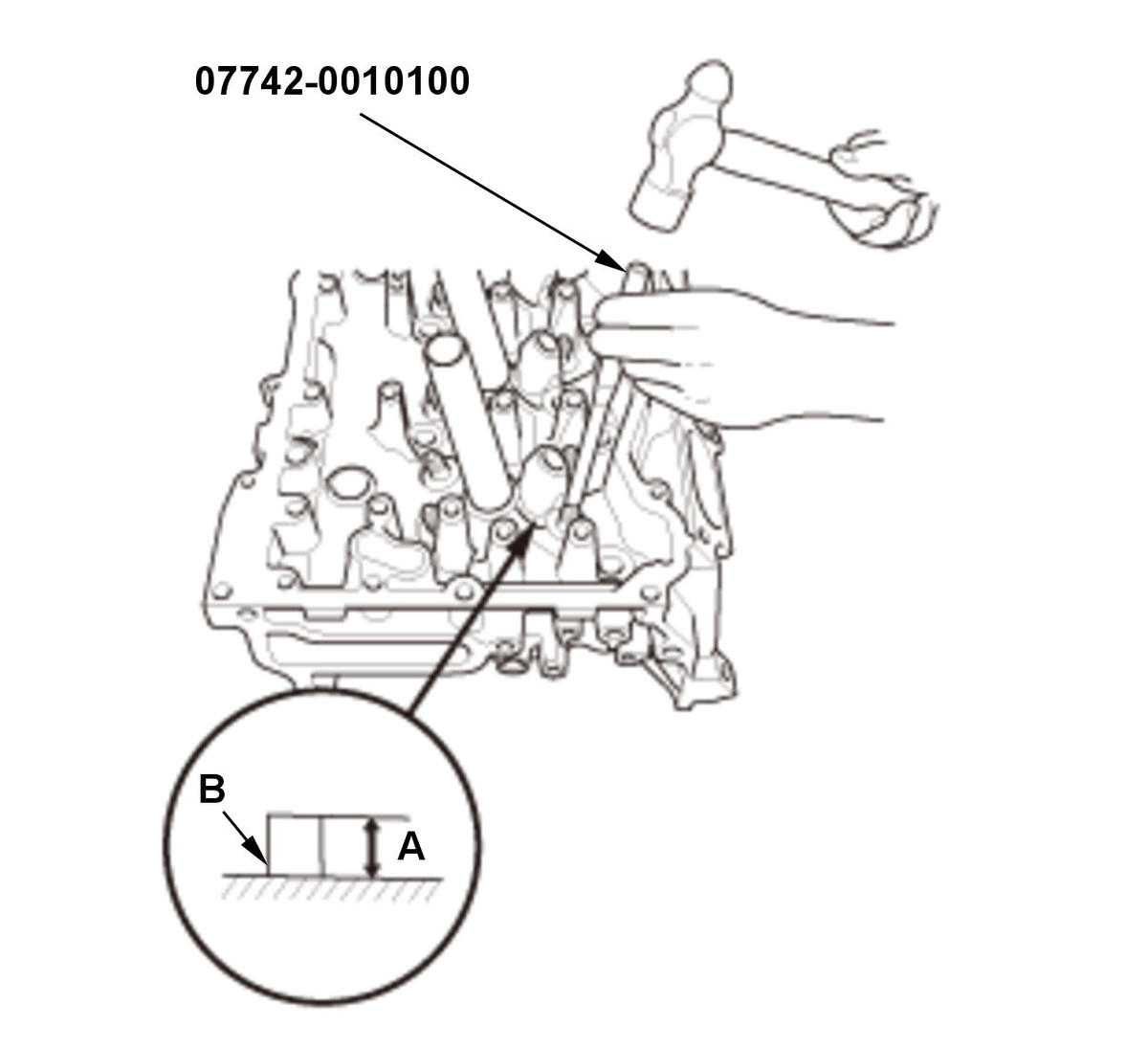

    3. Install the valve guide from the camshaft side of the head; use the valve guide driver to drive the valve guide in to the specified installed height (A) of the valve guide (B). If you have all 16 valve guides to do, you may have to reheat the head.
    Valve Guide Installed Height
    Intake:  21.2-22.2 mm (0.835-0.874 in)
    Exhaust:  19.6-20.6 mm (0.772-0.811 in)
    GHH426826Courtesy of HONDA, U.S.A., INC.

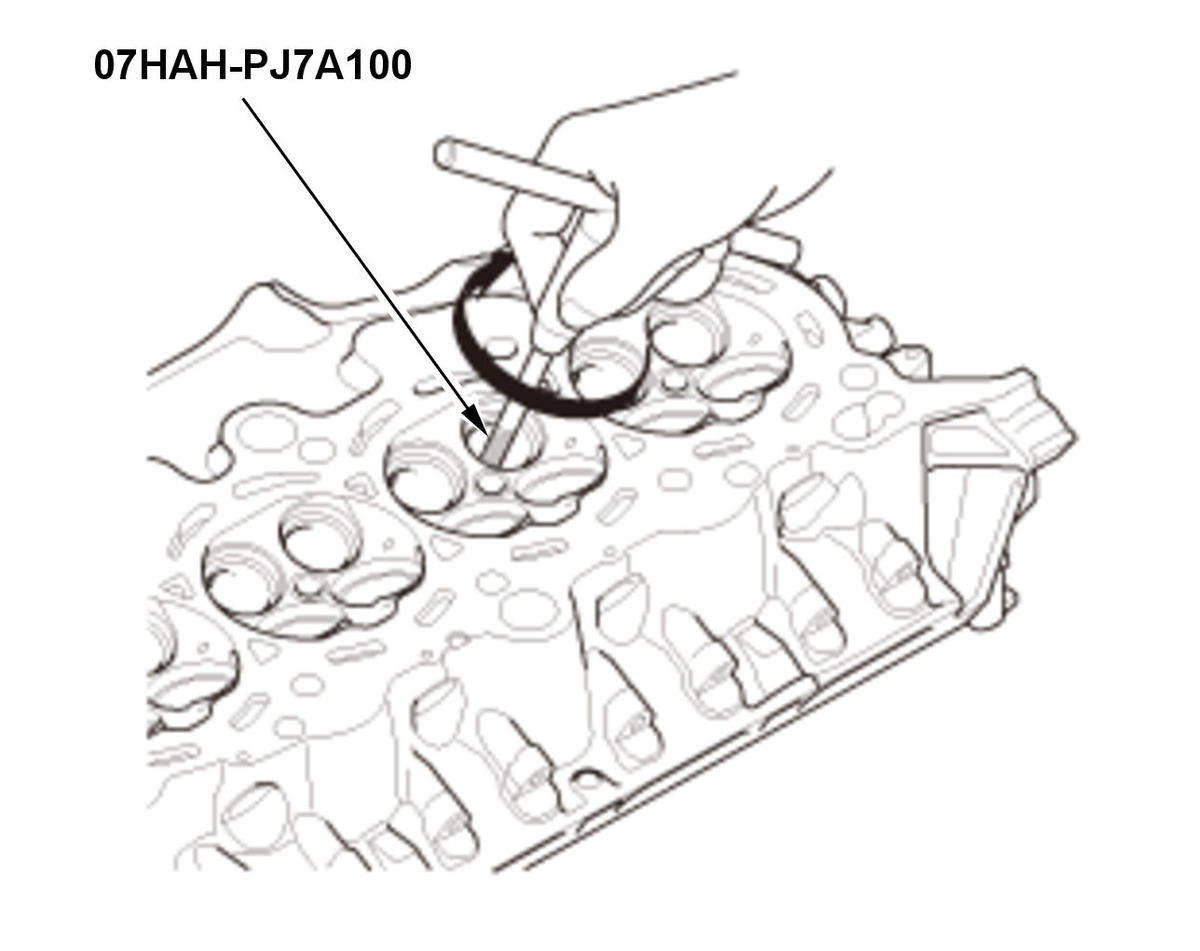

    		 4. Coat both the valve guide reamer, 5.525 mm and the valve guide with cutting oil.

    5. Rotate the reamer clockwise the full length of the valve guide bore.

    6. Continue to rotate the reamer clockwise while removing it from the bore.

    7. Thoroughly wash the valve guide in detergent and water to remove any cutting residue.
  4. Valve Stem-to-Guide Clearance - Inspect
  5. Valve Seat - Inspect
  6. Valve Seal and Valve Spring Seat - Install
