Removal and Installation

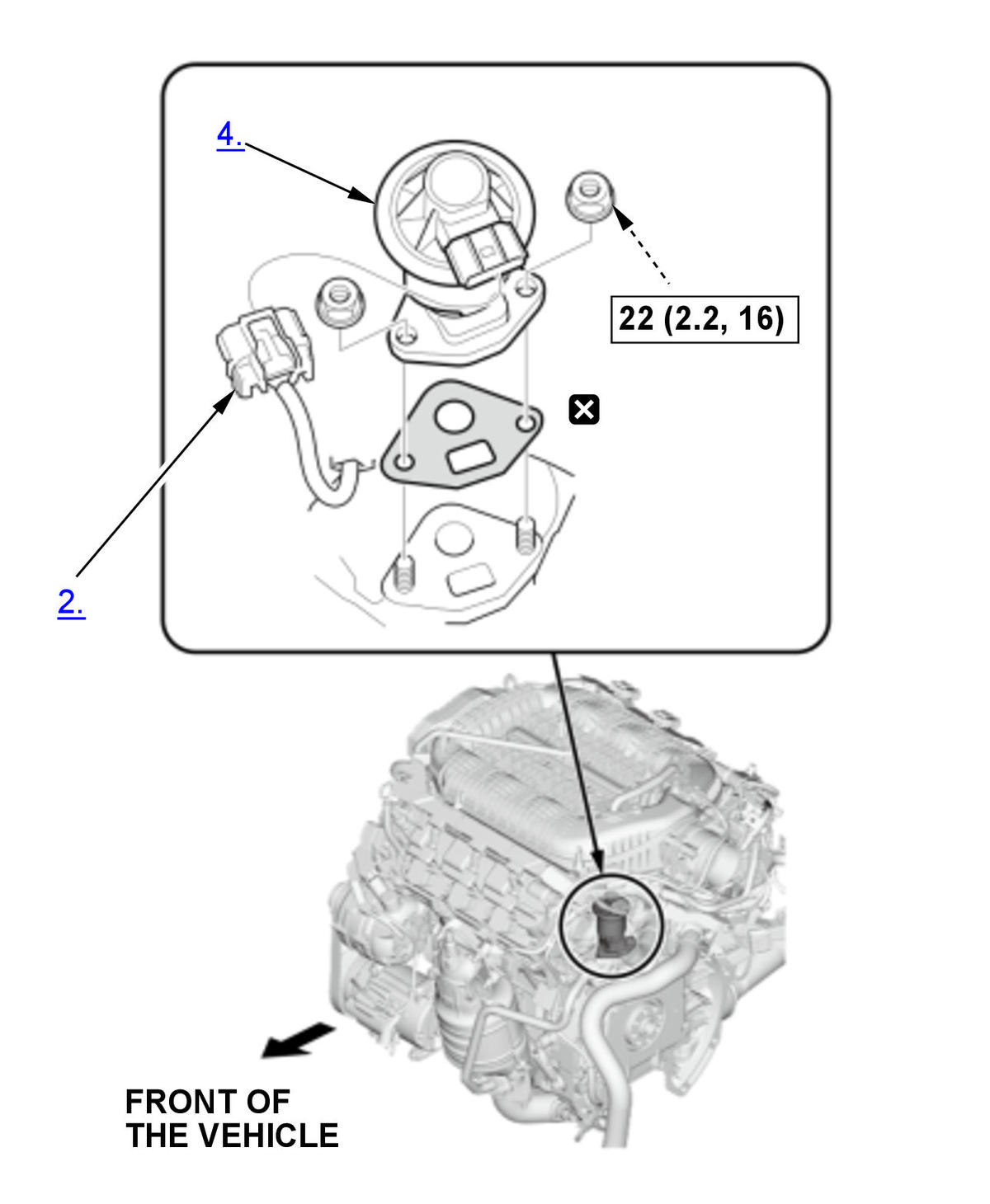

Fig 1: EGR Valve With Torque Specifications
GHH455053Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Engine Cover - Remove
  2. Connector (EGR Valve) - Disconnect
  3. Engine Harness Holder - Lift

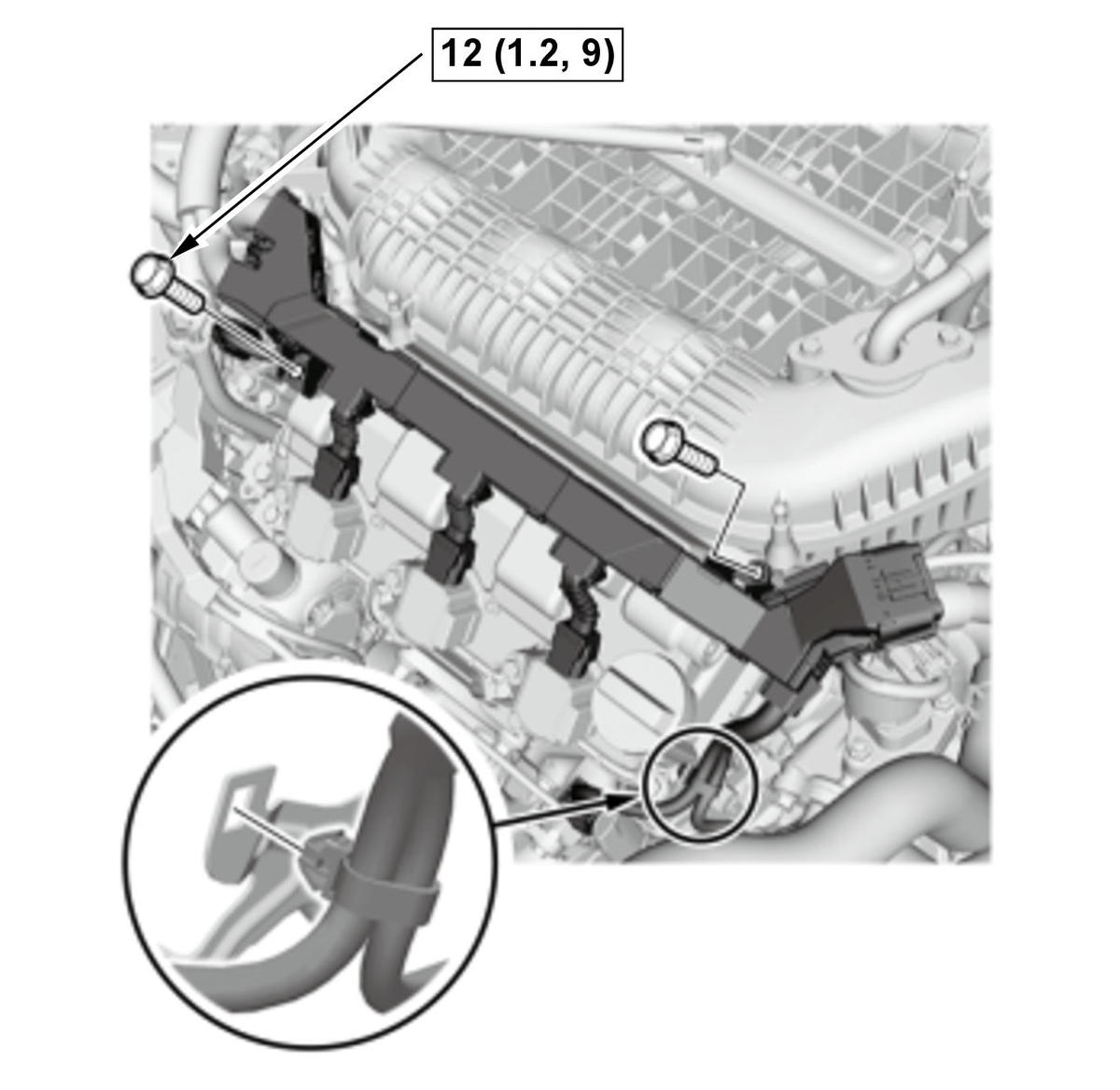

    GHH455054Courtesy of HONDA, U.S.A., INC.
  4. EGR Valve - Remove
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new gasket.
